NICOLAS CORREA FP50/50 UAGA 2001
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND38970
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2001
Descrizione
Manufacturer NICOLAS CORREA
Model FP50/50 UAGA
Year 2001
CNC HEIDENHAIN TNC-530 i
Table dimension 5.000 x 2.000 mm.
Max weight allowed on table 25.000 kg
Longitudinal travel (X Axis) 5.000 mm
C ...
Manufacturer NICOLAS CORREA
Model FP50/50 UAGA
Year 2001
CNC HEIDENHAIN TNC-530 i
Table dimension 5.000 x 2.000 mm.
Max weight allowed on table 25.000 kg
Longitudinal travel (X Axis) 5.000 mm
Cross travel (Y Axis) 3.250 mm
Vertical travel (Z Axis) 1.000 mm
Distance between column 2.700 mm
Max. height between spindle nose and table with direct exit head 1.500 mm
Rapid feed X axis 15.000 mm/min
Rapid feed Y, Z Axis 12.000 mm/min
Maximum working feed 7.000 mm/min
Spindle power 37 kW
Taper ISO-50
Direct exit head INCLUDED

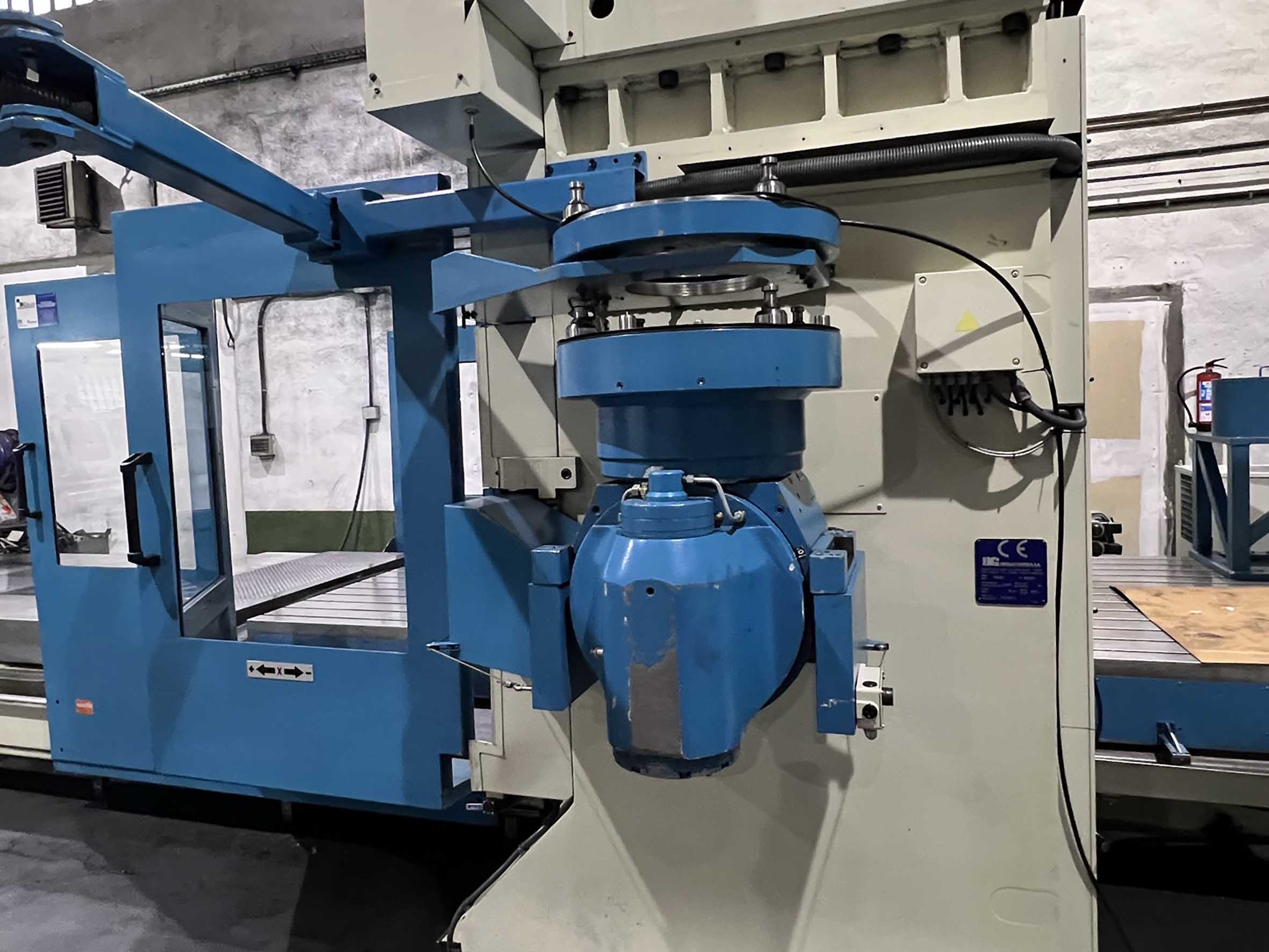

UAGA autoindexing head 2.5º/2.5º INCLUDED
Extended head 600 mm. INCLUDED
Orthogoal head speed 3.000 r.p.m.
Direct exit head speed 5.000 r.p.m.
Speed ranges 2
Axis and head motors SIEMENS
Automatic support for head cover INCLUDED
Automatic support for orthogonal Head INCLUDED
Chip Conveyor INCLUDED
Total power 51 kW
Machine weight 50.000 kg.
