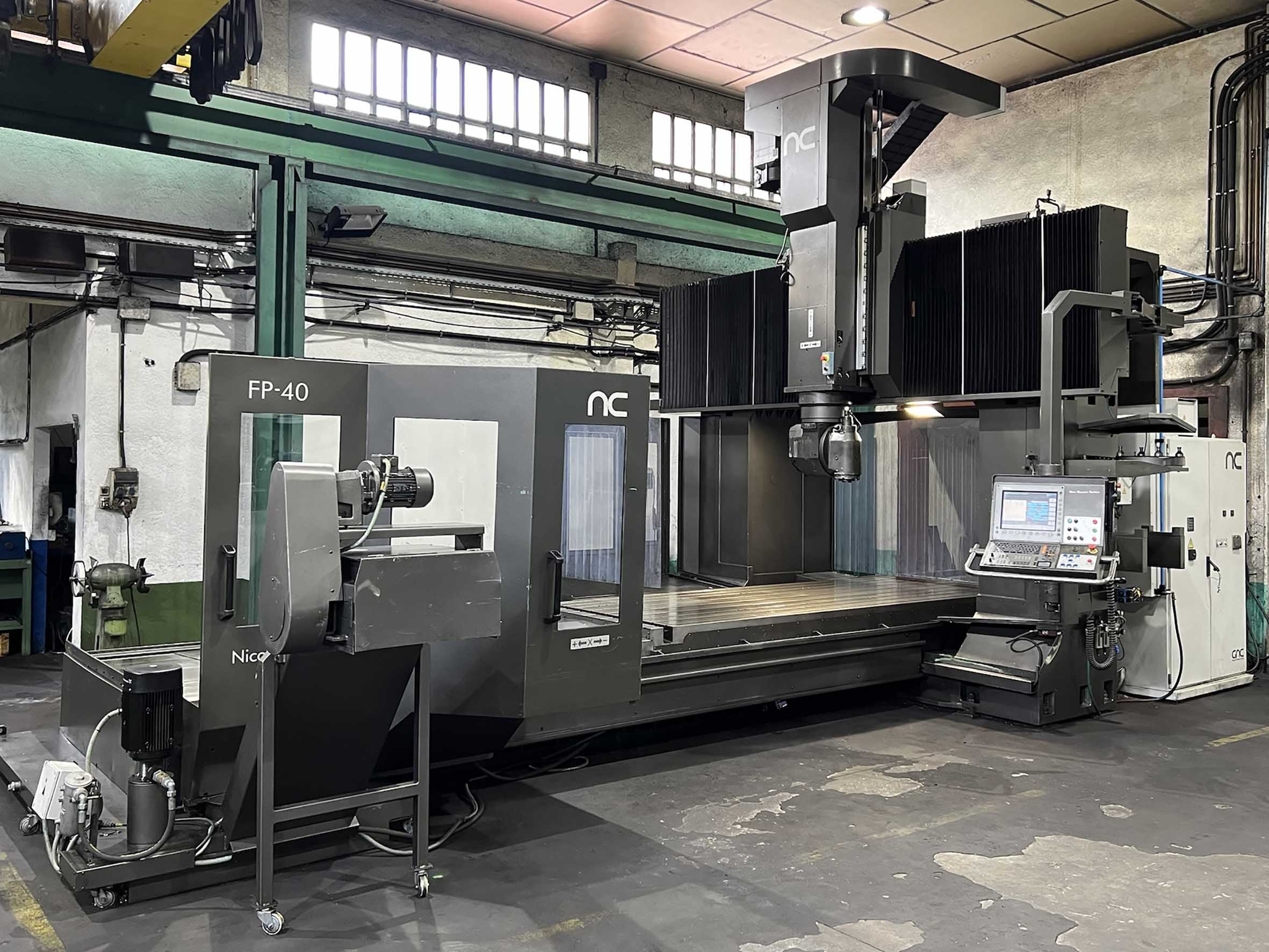

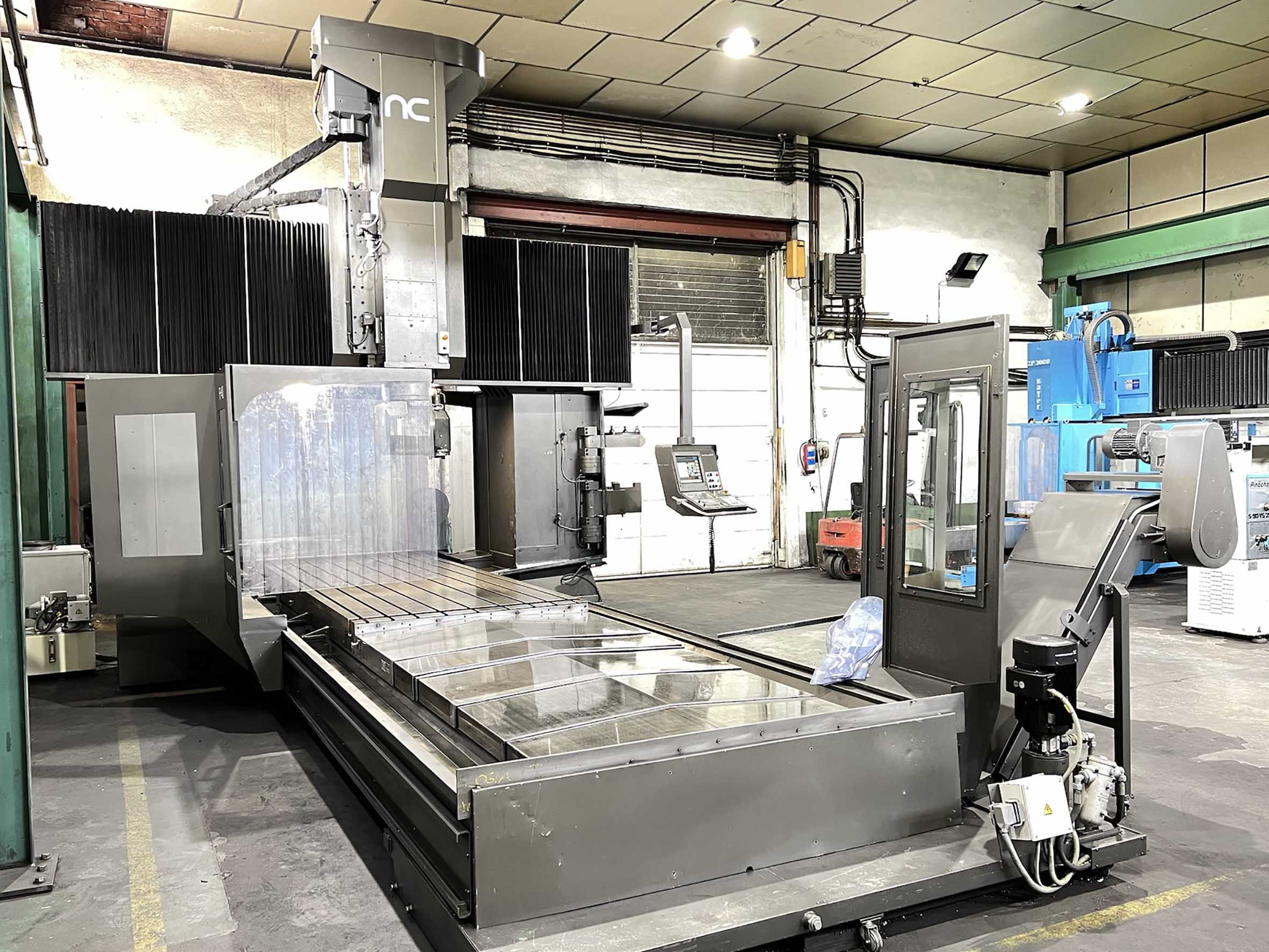

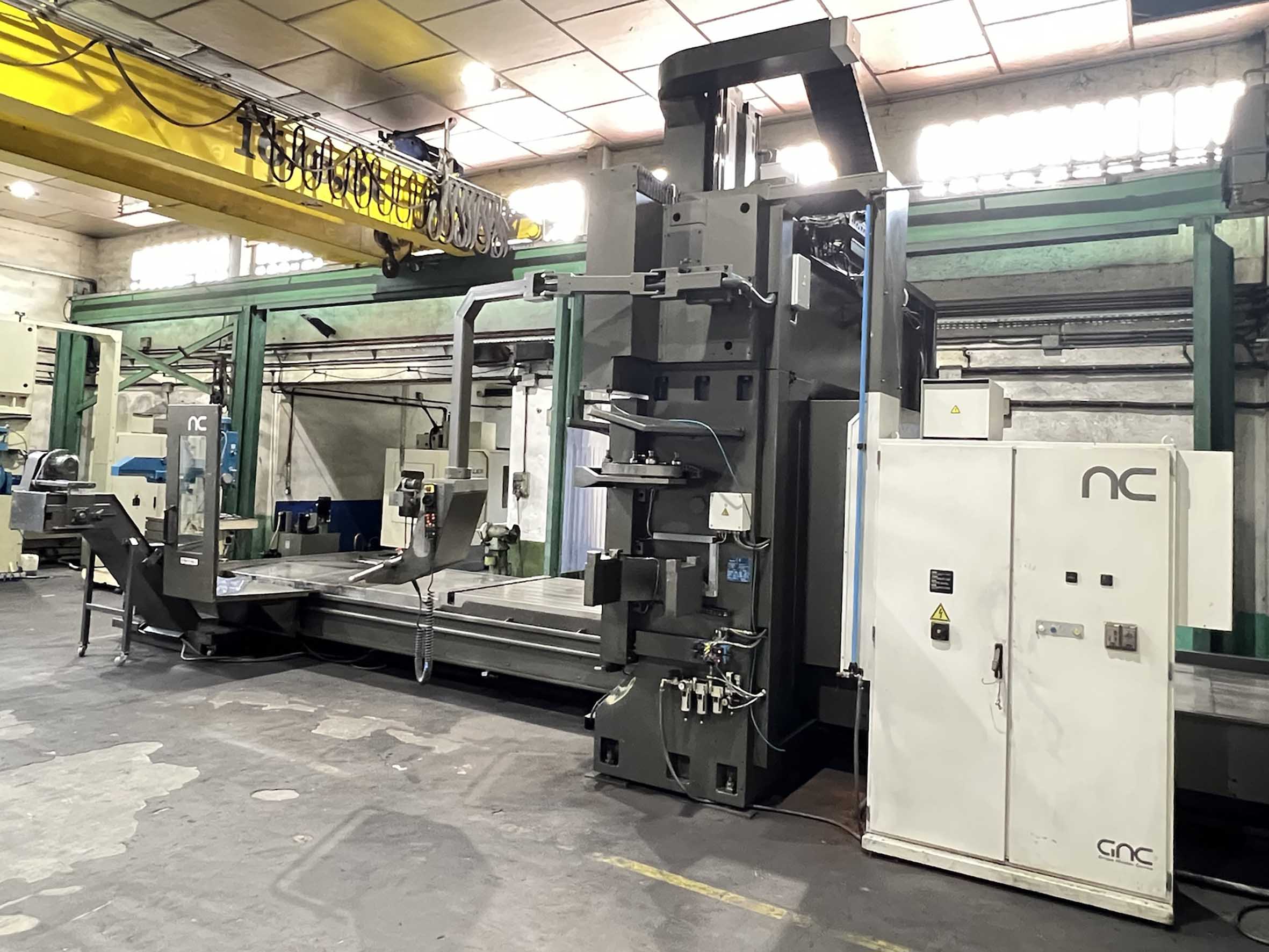

NICOLAS CORREA FP40/40 UAGA 2007
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND39332
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2007
Descrizione
Manufacturer NICOLAS CORREA
Model FP40/40 UAGA
Year 2007

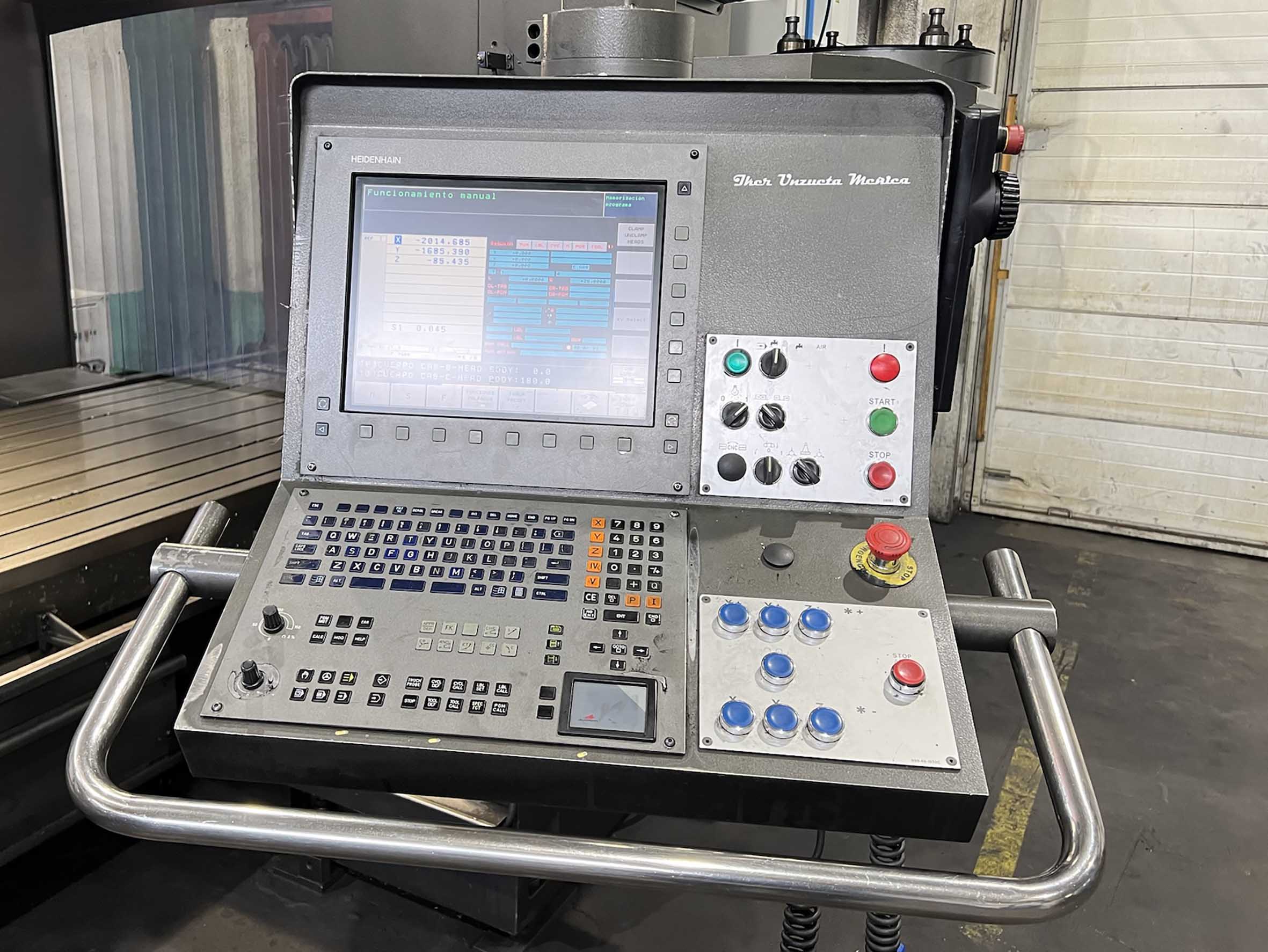

CNC HEIDENHAIN iTNC-530
Table Surface 4.500 x 1.500 mm
Longitudinal Travel (X Axis) 4.000 mm
Cross Travel (Y Axis) 3.000 mm
Vertical Tra ...
Manufacturer NICOLAS CORREA
Model FP40/40 UAGA
Year 2007
CNC HEIDENHAIN iTNC-530
Table Surface 4.500 x 1.500 mm
Longitudinal Travel (X Axis) 4.000 mm
Cross Travel (Y Axis) 3.000 mm
Vertical Travel (Z axis) 1.000 mm
Distance Between Columns 2.550 mm
Rapid Feed (X Axis) 15.000 mm/min
Rapid Feed (Y, Z Axis) 12.000 mm/min
Max. Working Feed 5.000 mm/min
Taper ISO-50
Direct Output Head Speed 5.000 r.p.m.
Speed Head 45º 3.000 r.p.m.
Main Engine Power 22 kW
Speed Ranges 2
Max Weight Allowed on table 15.000 kg.
Direct Output INCLUDED
Universal Head UAGA INCLUDED
Auto Indexing Head 2, 5º /2.5º
Automatic Support in the right side for Head UAGA INCLUDED
Automatic Support in the left site for Direct Output Head. INCLUDED
Automatic Head Changer INCLUDED
Internal Coolant 12 BAR INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel HEIDENHAIN HR 410
Machine Weight 44.000 kg.
