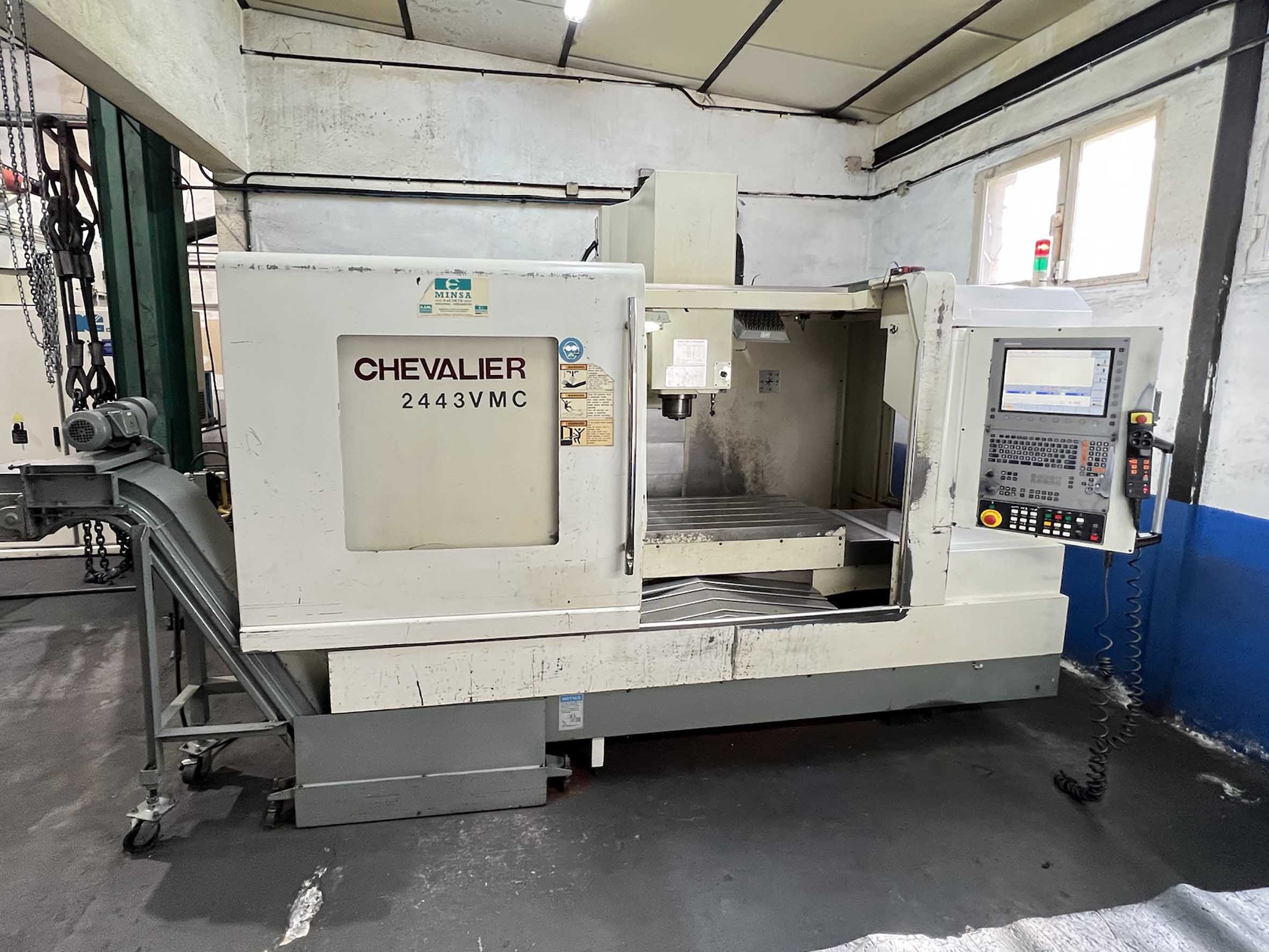

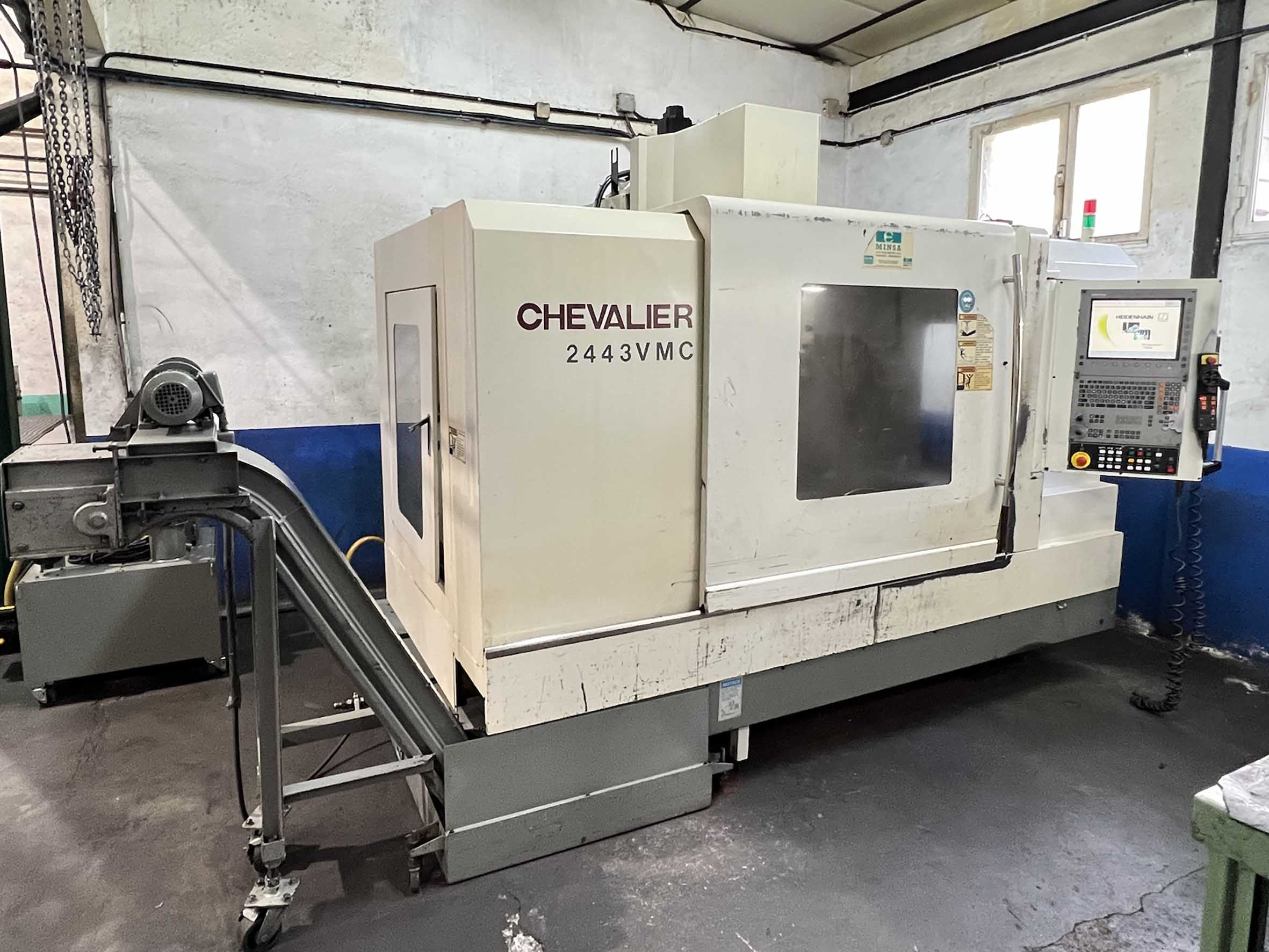

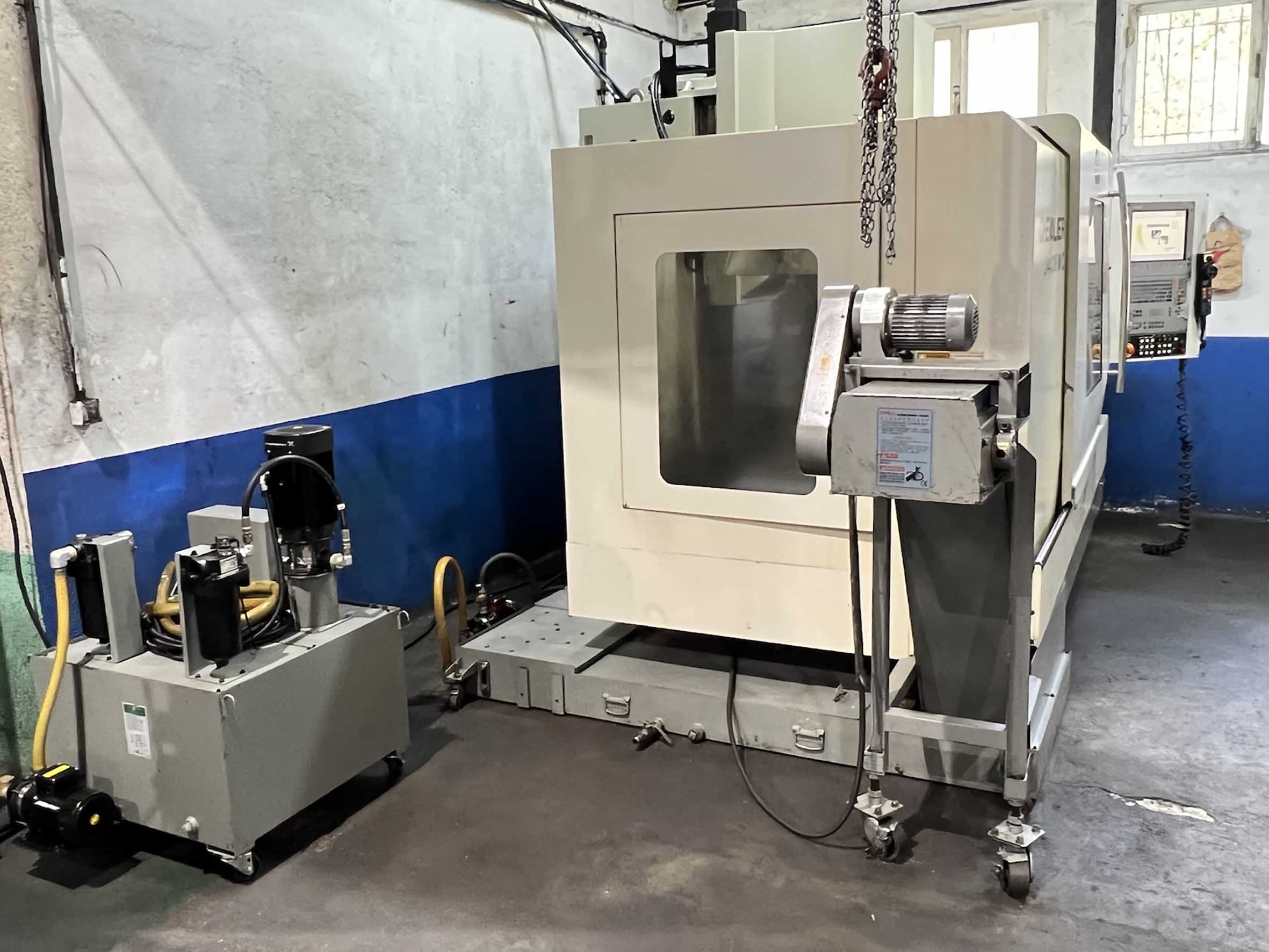

CHEVALIER 2443 2007
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND39334
.JPEG)
.JPEG)
.JPEG)
.JPEG)
Dati tecnici
- Condizione: usato
- Anno: 2007
Descrizione
Manufacturer / Model CHEVALIER
Model 2443 VMC
Year 2007

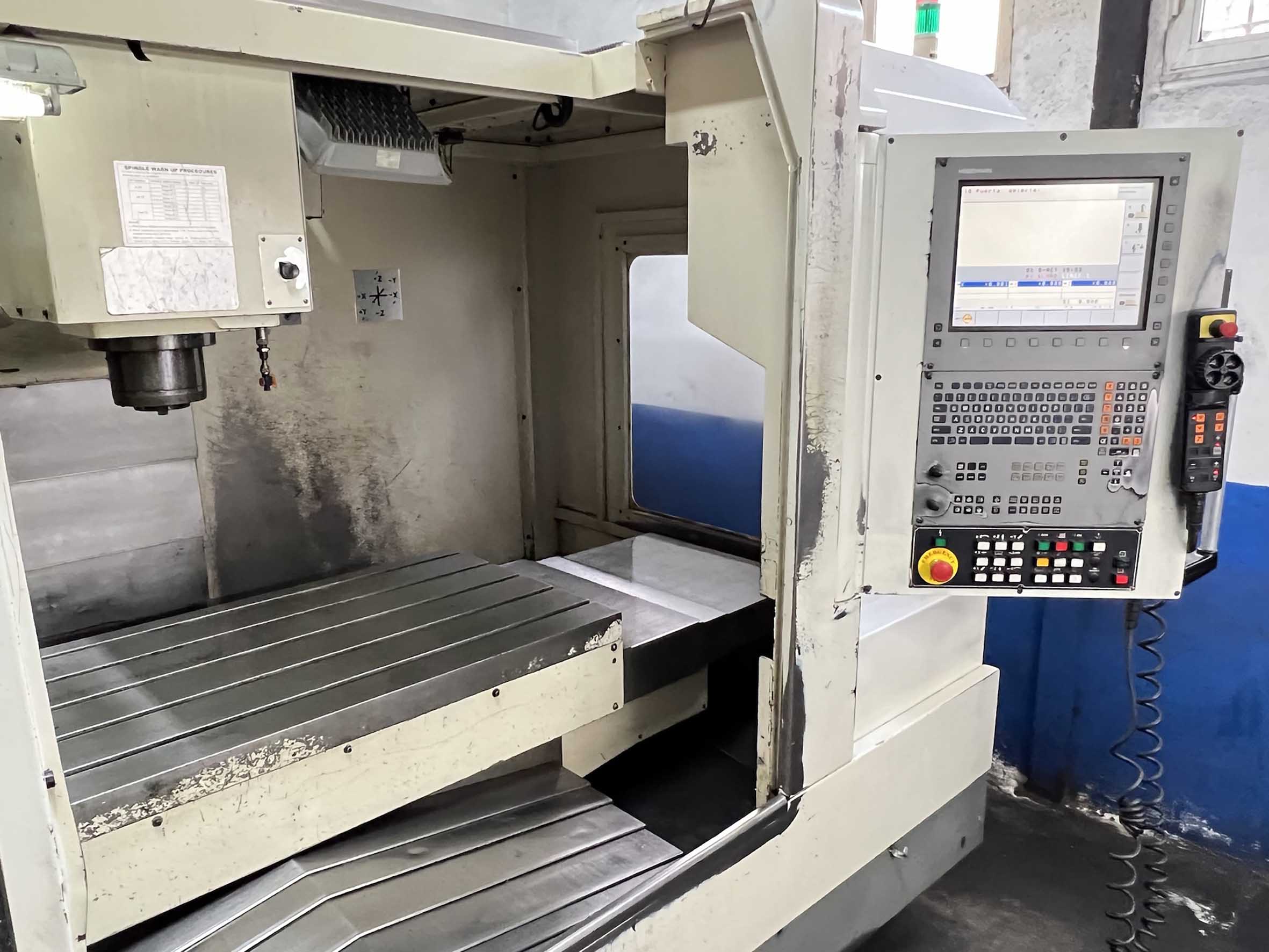

CNC HEIDENHAIN TNC 530
Table Dimension 1.250 x 650 mm
T- Slot number /width 5/18 mm
T-slot distance 125 mm
Max weight allowed on table 1. ...
Manufacturer / Model CHEVALIER
Model 2443 VMC
Year 2007
CNC HEIDENHAIN TNC 530
Table Dimension 1.250 x 650 mm
T- Slot number /width 5/18 mm
T-slot distance 125 mm
Max weight allowed on table 1.200 kg
Travels (X/Y/Z Axis) 1.100 / 610/ 635 mm.
Rapid feed X/Y/Z Axis 20/20/18 m/min
Taper ISO 40
Turning Speeds 8.000 rpm
Engine Power 11 kW
Automatic tool changer ( ATC) INCLUDED
ATC Positions 20
ATC Type Random
Max tool diameter 76 mm
Max tool weight 7 kg
Internal Coolant 20 Bar INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel INCLUDED
Power required 15 kVA
Machine Dimensions 2.650 x 2.345 x 2.870 mm.
Machine Aprox. Weight 7.200 kg.
