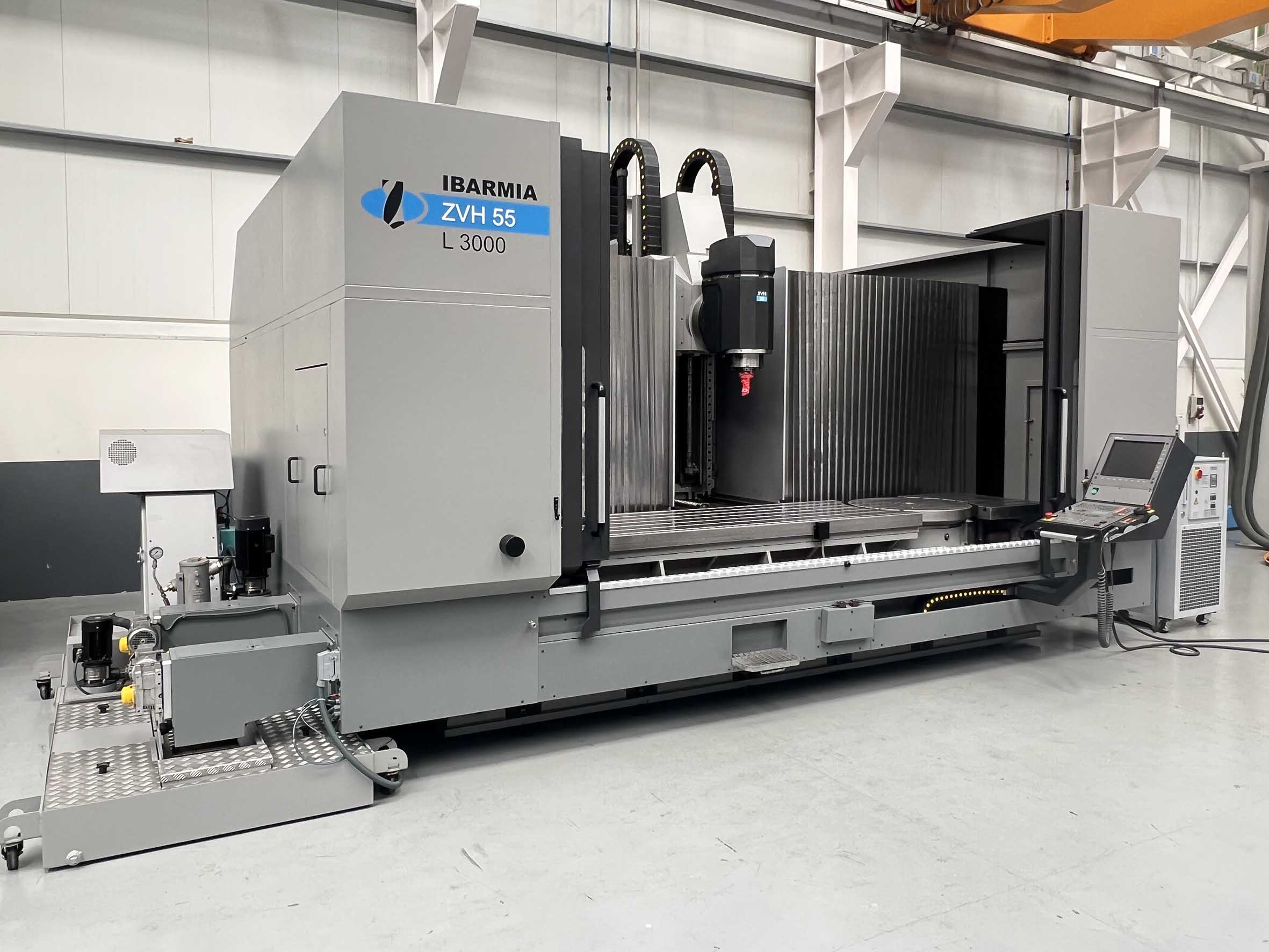

IBARMIA ZVH55 L3000 2004
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND39491
.jpg)
.jpg)
Dati tecnici
- Condizione: usato
- Anno: 2004
Descrizione
Technical Features of this 5 Axis Machining Centers
Manufacturer IBARMIA
Model ZVH55 L3000
Year 2004
CNC HEIDENHAIN TNC-530
Table Surface 3.600 x 850 mm
Carrying Load Table 2.000 kg.
T slots 7
...
Technical Features of this 5 Axis Machining Centers
Manufacturer IBARMIA
Model ZVH55 L3000
Year 2004
CNC HEIDENHAIN TNC-530
Table Surface 3.600 x 850 mm
Carrying Load Table 2.000 kg.
T slots 7
T slot size 1×18(H8)- 6X18(H12)
Distance between T slots 125 mm.
Integrated Rotary Table INCLUDED
Rotary Table Diameter 800 mm.
Maximum Swing Diameter 1.400 mm.
Travels (X/Y/Z) 3.000/800/800 mm
Titling head range (B Axis) ± 105º
Rapid Feed Axis (X, Y, Z) 30 m/min
Rapid Feed for B axis 170 rpm
Turning Speeds 9.000 mm/min
Taper BT-50
Main Motor Power 25 kW
Torque 240 Nm
Automatic Tool Changer (ATC) INCLUDED
ATC Type Random
ATC Positions 40
Max tool length 365 mm.
Max tool weight 20 kg
Max tool Ø with full magazine 125 mm.
Max tool Ø with adjacent positions empty 175 mm.
Axis Measuring System Heidenhain Optical ScaleS
Renishaw Piece Touch Probe Heidenhain TT120
Portable handwheel Heidenhain HR-410
Chip Conveyor INCLUDED
Internal Coolant 20 Bar INCLUDED
Cooled Electrical Cabinet INCLUDED
Lateral Windows Opening to long parts INCLUDED
2 Longitudinay Chip Conveyors INCLUDED
1 cross chip conveyor INCLUDED
Machine Weight 22.800 kg
Total Power Required 60 kW
Machine Dimensions (LxWxH) 7.350 x 4.800 x 3.600 mm
