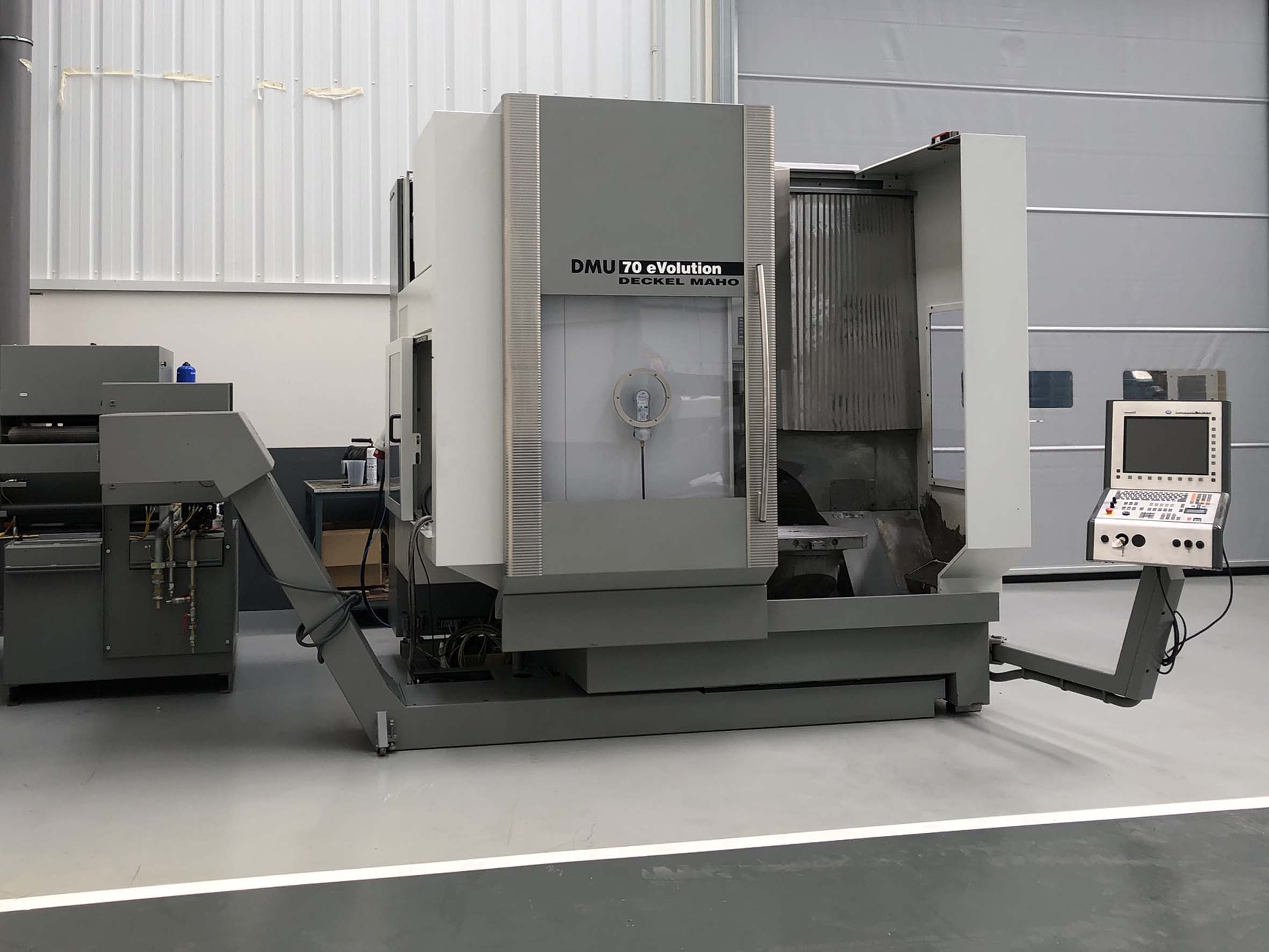

DMG DMG DMU 70 Evolution 5 ejes 2004
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND39693
.jpeg)
.jpeg)
.jpeg)
Dati tecnici
- Condizione: usato
- Anno: 2004
Descrizione
Manufacturer DMG
Model DMU 70 eVolution
Year 2004
CNC HEIDENHAIN iTNC 530
Rotary Table Dimensions 700 x 500 mm.
T slot number 7
Table Max. Carrying Load 350 kg.
B Axis Turning Head 0º-180º CO ...
Manufacturer DMG
Model DMU 70 eVolution
Year 2004
CNC HEIDENHAIN iTNC 530
Rotary Table Dimensions 700 x 500 mm.
T slot number 7
Table Max. Carrying Load 350 kg.
B Axis Turning Head 0º-180º CONTINUOUS
X axis travel 750 mm.
Y axis travel 600 mm
Z axis travel 520 mm.
B axis – table turning 0,001º – 0º-180º CONTINUOUS
C axis – table turning 0,001º – CONTINUOUS
Rapid Traverse 50.000 mm/min
Max. Working Feed 20.000 mm/min.
Taper SK-40 DIN 69871
Turning Speeds 20-18000 rpm
Main Motor Power 35 kW
ATC INCLUDED
ATC positions 32
Internal Coolant 40 Bar INCLUDED
Chip Conveyor INCLUDED
Coolant system with paper filter system INCLUDED
Equiped with tools INCLUDED
Portable Handwheel HEIDENHAIN HR-410
Infrared Touch Probe BLUM TG 52
Laser Tool Touch Probe BLUM
Total power 55 kVA
Net Weight 9.500 kg.
Machine Dimensions 4.603 x 4129 x 2785 mm.
