DOOSAN Puma 700 XLY 2011
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND41744
Dati tecnici
- Condizione: usato
- Anno: 2011
Descrizione

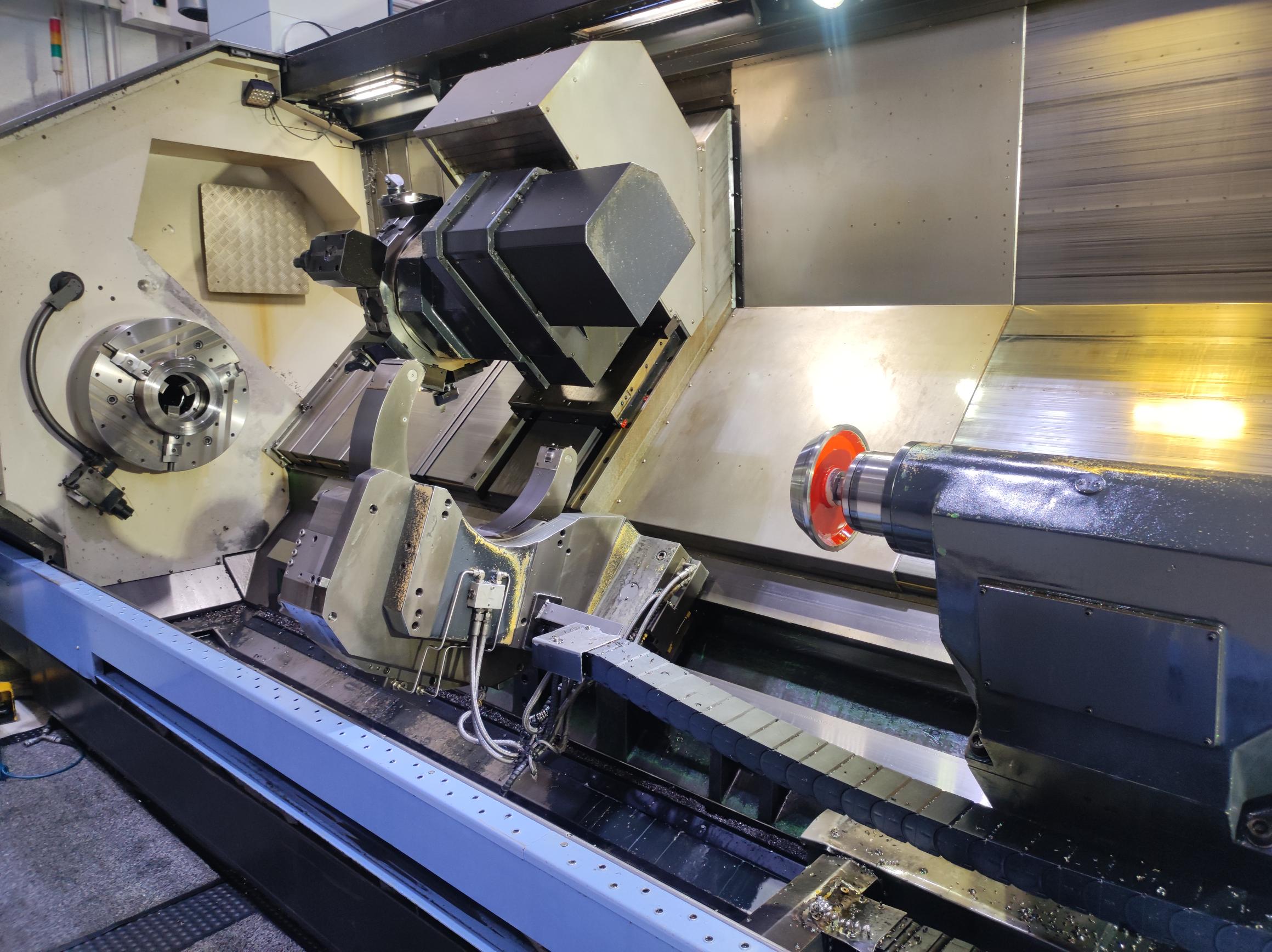

DOOSAN PUMA 700XLY ( 2011)
CNC LATHE WITH ROTARY TOOLS AND “Y” AXIS “Z” AXIS -5.000
SPACIFICATIONS:
-CNC FANUC 32i A 10,4” LCD Color Manual Guide
-Swing Over Bed: 1.140mm
-Swing O ...
DOOSAN PUMA 700XLY ( 2011)
CNC LATHE WITH ROTARY TOOLS AND “Y” AXIS “Z” AXIS -5.000
SPACIFICATIONS:
-CNC FANUC 32i A 10,4” LCD Color Manual Guide
-Swing Over Bed: 1.140mm
-Swing Over Sadle: 1.000 mm
-Max. Turning diameter: 750mm
-Máx. Turning Length: 5.050mm
-Axis travels: X 400mm Y 200mm Z 5.100mm
-Chuck Size: 630mm
-Bar Capacity: 164mm
-Spindle Nose: ASA-A2-15
-Main Spindle: 1.500 Rpm 45kw/75kw (Gear Box)
-Turret: 12 stations BMT 85P (Indexing time 1 position 0,25 seg)
-Rotary Tools motor: 11Kw 3.000Rpm
- C Axis indexing: 0,001mm
-Tailstock Travel : 4.885mm
-Tailstock diámeter/stroke : 180mm/200mm
INCLUDED EQUIPMENT:
-Hydraulic Chuck SMW AUTOBLOK KNCS type diámeter 630mm
- C AXIS 360(0,001º)
-Automatic tool setter
-Built in Tailstok
-Programmable tailstok
-High pressure pump
-Chip Conveyor ( 6 months new)
-Mechanical, hydraulic and electric preparation for Automatic steady rest
-Hydraulic Steady rest ATLING S LZ 50-310 G2
-Complete standard Tool holders set for internal-external including 4 rotary (2 Straight - 2 Angular)
-Complete set of de manuals (Doosan and Fanuc)
(*) All specifications has to be confirmed
CONDITION:
Under power at Excellent Condition. Ready for inspection. Immediate delivery
