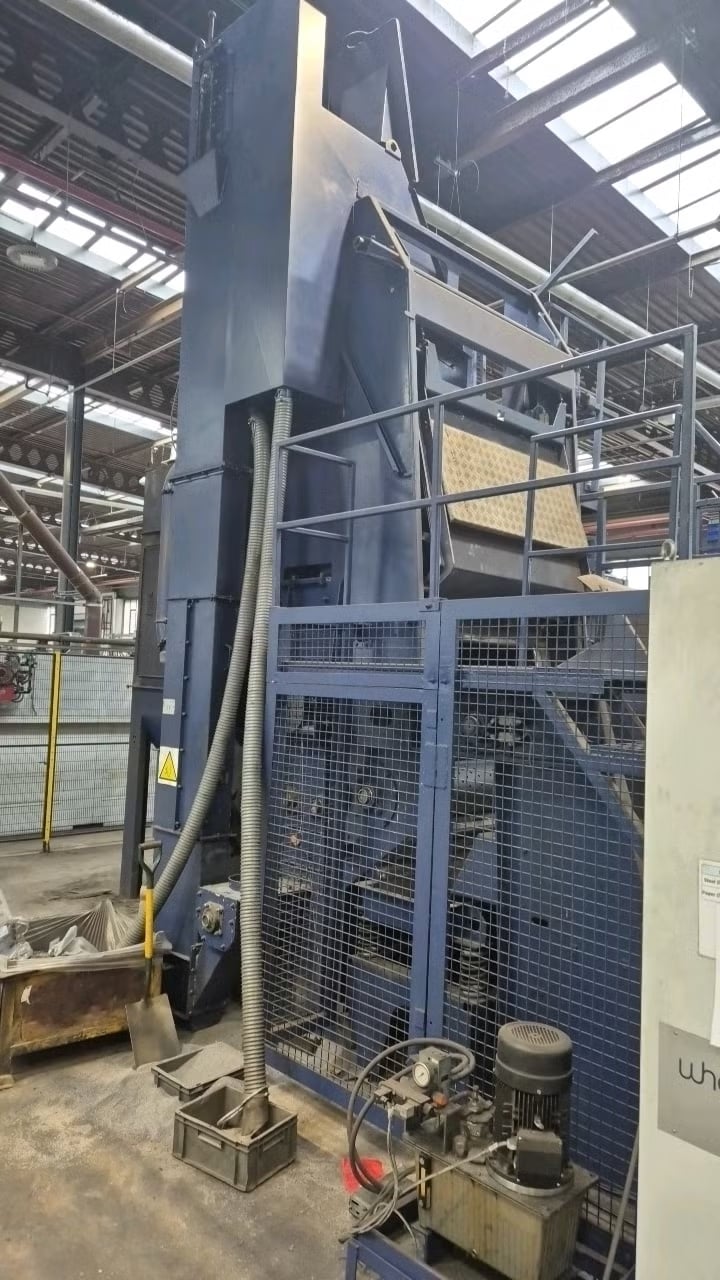

WHEELABRATOR Schlick MB 300G 2012
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND42175
Dati tecnici
- Condizione: usato
- Anno: 2012
Descrizione
Characteristics of the shot blast machine:
Trough belt width 1200 mm
Trough belt diameter 900 mm
Capacity approx. 0.31 m3
Maximum trough load 800 kg
Maximum individual item weight approx. 5 kg
B ...
Characteristics of the shot blast machine:
Trough belt width 1200 mm
Trough belt diameter 900 mm
Capacity approx. 0.31 m3
Maximum trough load 800 kg
Maximum individual item weight approx. 5 kg
Blasting system Turbine wheel blasting
Maximum workpiece temperature 80°C (5 batches per day)
Characteristics of the installed turbines:
Type 15.3-EM11.0
Diameter 380 mm
Blade width 65 mm
Number of blades/turbine 8 pcs
Installed driving power/turbine 11.0 kW
Abrasive pre-acceleration mechanical, central via impeller
Abrasive throw-off speed approx. 75.0 m/s (variably adjustable)
Electrical loads:
Filter ventilator drive 3.00 kW
Bucket elevator drive 2.20 kW incl. brake
Transverse worm conveyor drive 2.20 kW
Trough belt drive 1.50 kW
Lifting door drive 0.18 kW
Turbine drive 11.0 kW
Vibration conveyor drives (2 x 0.3 kW) 0.60 kW
Hydraulic unit drive 4.00 kW
First abrasive filling 1500 kg
Weights:
Shot blast machine approx. 3700 kg
Filter unit approx. 300 kg
Switch cabinet approx. 90 kg
Loader approx. 520 kg
Vibration conveyor approx. 320 kg
Rubber Band Tumblast machines
Max. load capacity (dm³) 300
Max. advised load (kg) 800
Max. workpiece weight (kg) 5
Max. workpiece diagonal (mm) 450
Power per blast wheel (kW) 11/15 (2x11)
