BRUDERER DECKEL MAHO FP4 60T
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND45636
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

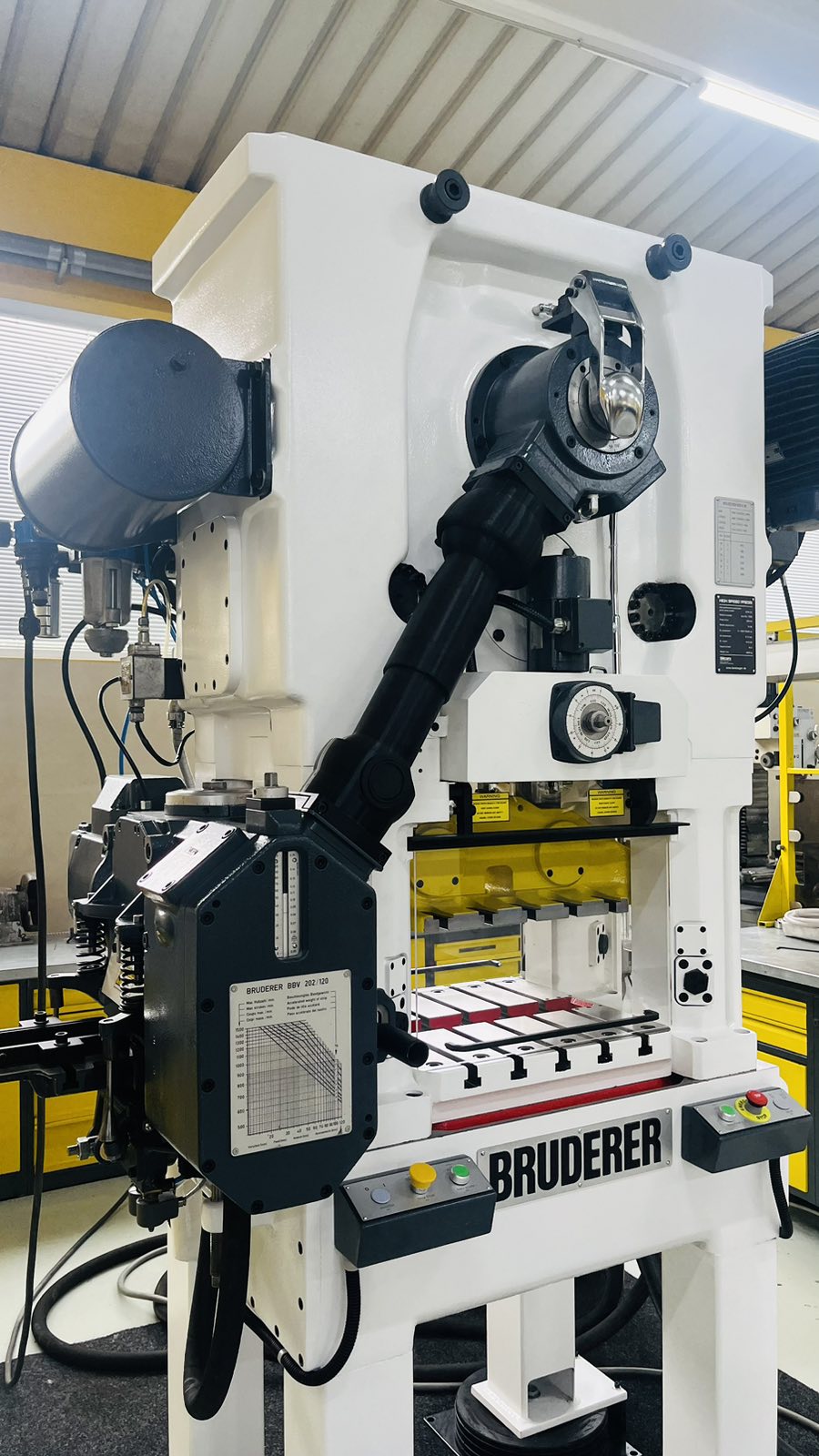

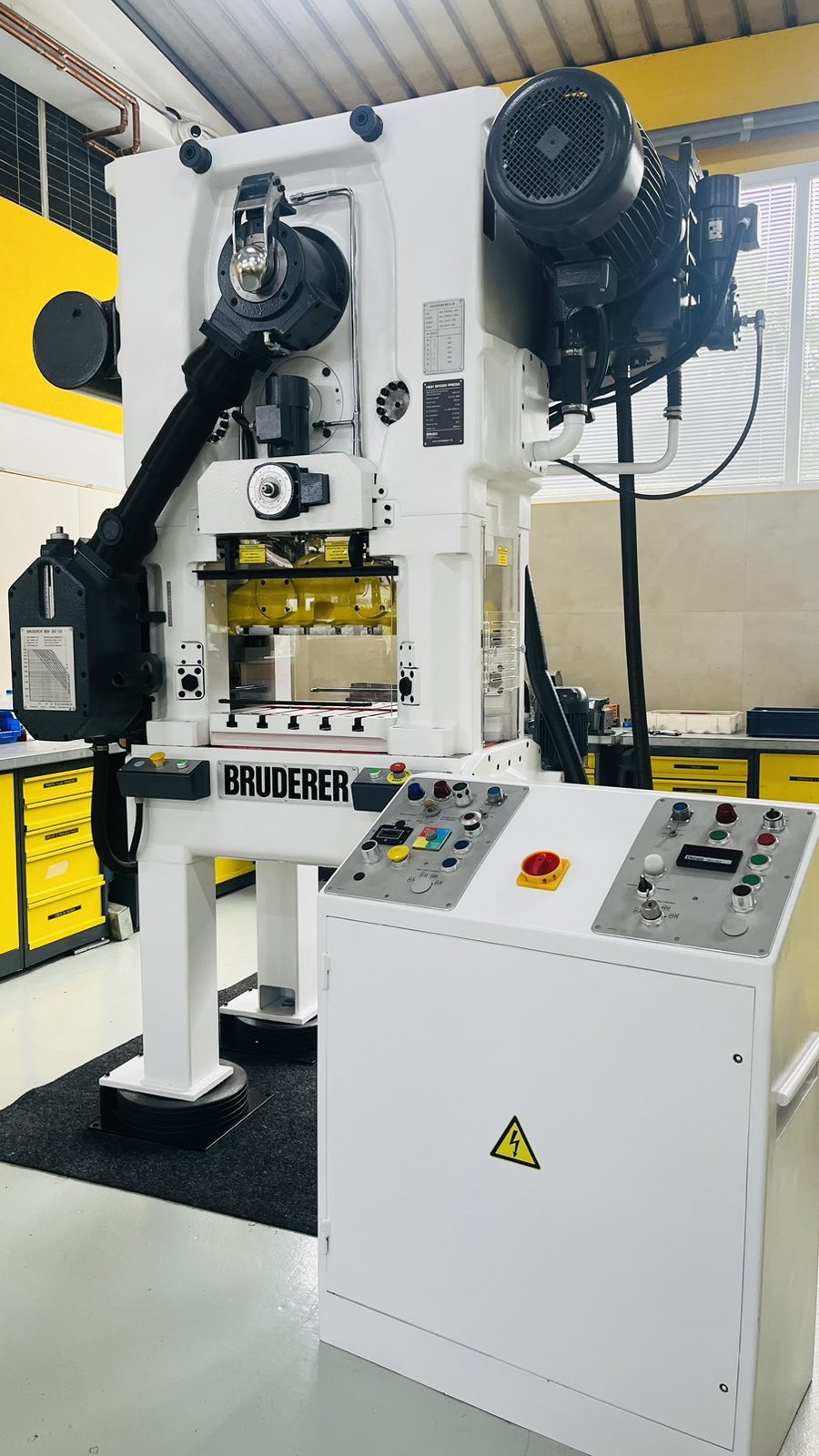

BRUDERER BSTA 25 Precision high speed punching press.
Nominal capacity: 250 kN; 25 tons.
Min./Max. number of strokes: 100/1500.
Max width of strip: 200 mm.
Adjustable stroke: 13, 16, 19, 25, 32, 3 ...
BRUDERER BSTA 25 Precision high speed punching press.
Nominal capacity: 250 kN; 25 tons.
Min./Max. number of strokes: 100/1500.
Max width of strip: 200 mm.
Adjustable stroke: 13, 16, 19, 25, 32, 38 mm.

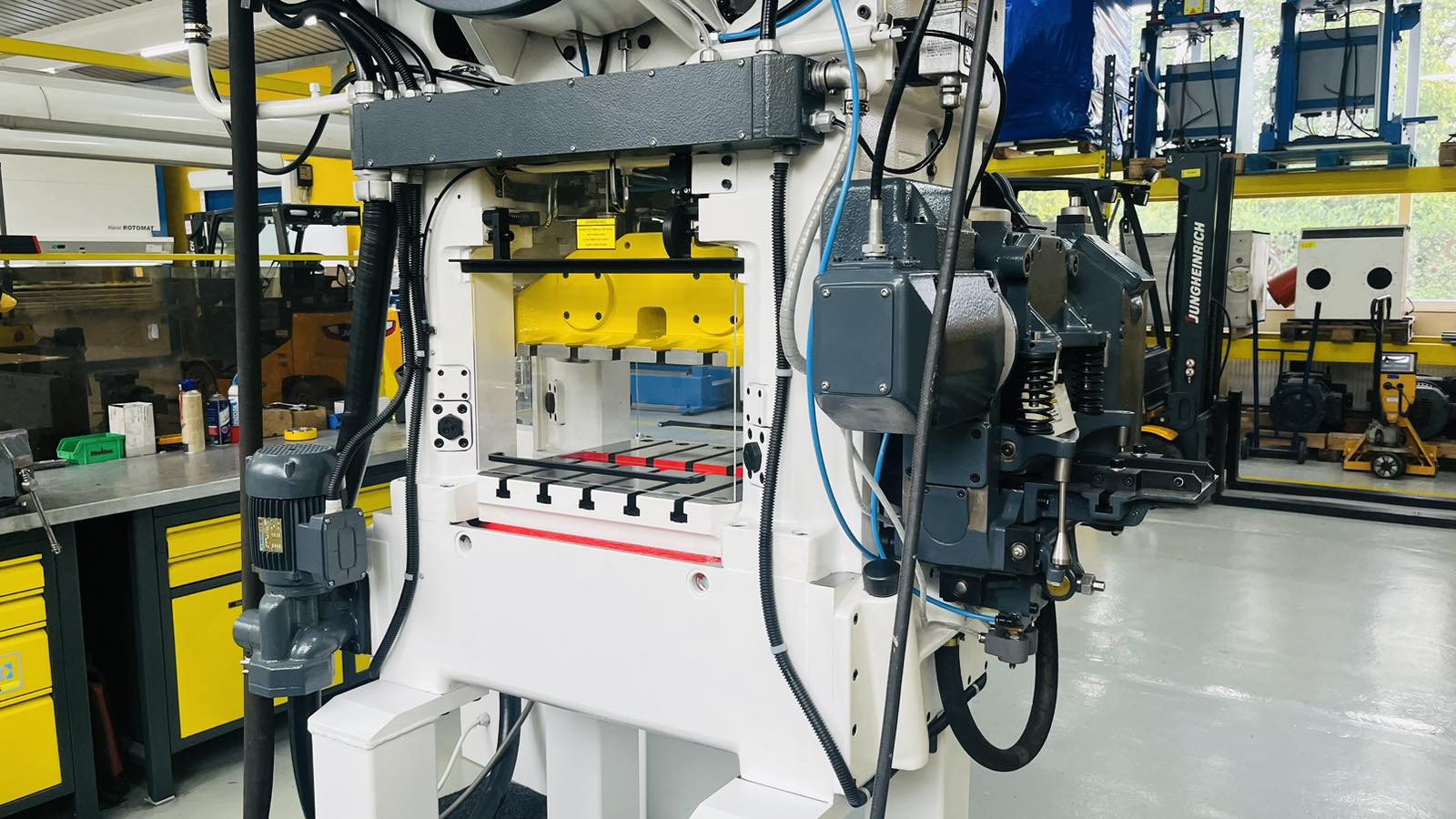

Fitted with roll feeder BBV 202/120 on left hand side.
Feed length variable up to 120 mm max.
Optional: Sound insulating cabin.
Condition: good working and visual order.
Oil pump. Oil cooler.
Execution: 4 supports.
Front and rear safety guards.
Fitted on rubber feet.
Table dimensions: 530 x 530 mm.
Passage between the supports: Longitudinal 540 mm; Lateral 200 mm.
Slide/Ram adjustment 51 mm.
Documentation in German or English language included.
Press weight cca. 4800 kg.
Press dimensions: 2055 x 1355 x H26200 mm.
