BRUDERER DECKEL MAHO FP4 60T 1988
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND45922
Dati tecnici
- Condizione: usato
- Anno: 1988
Descrizione

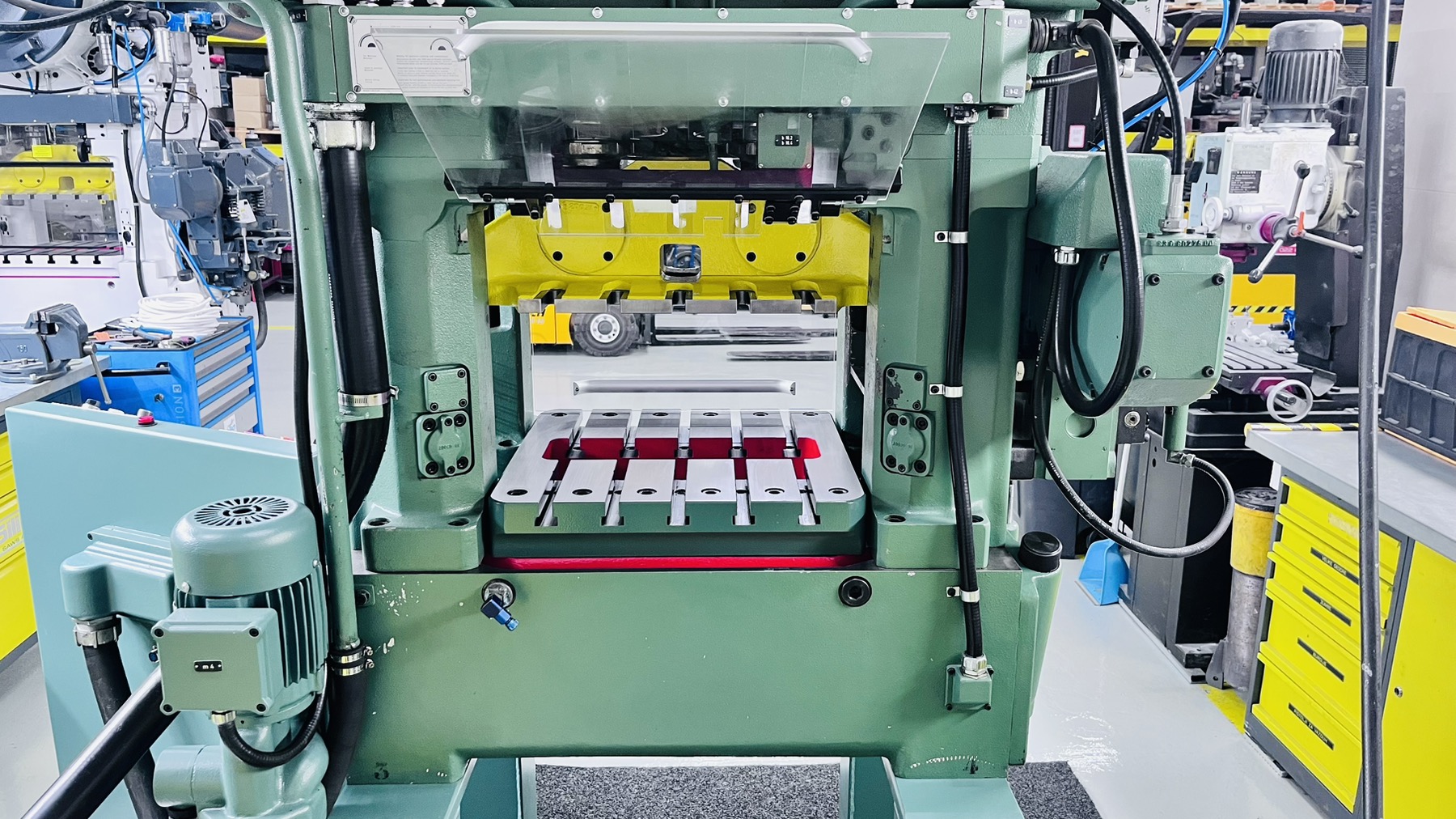

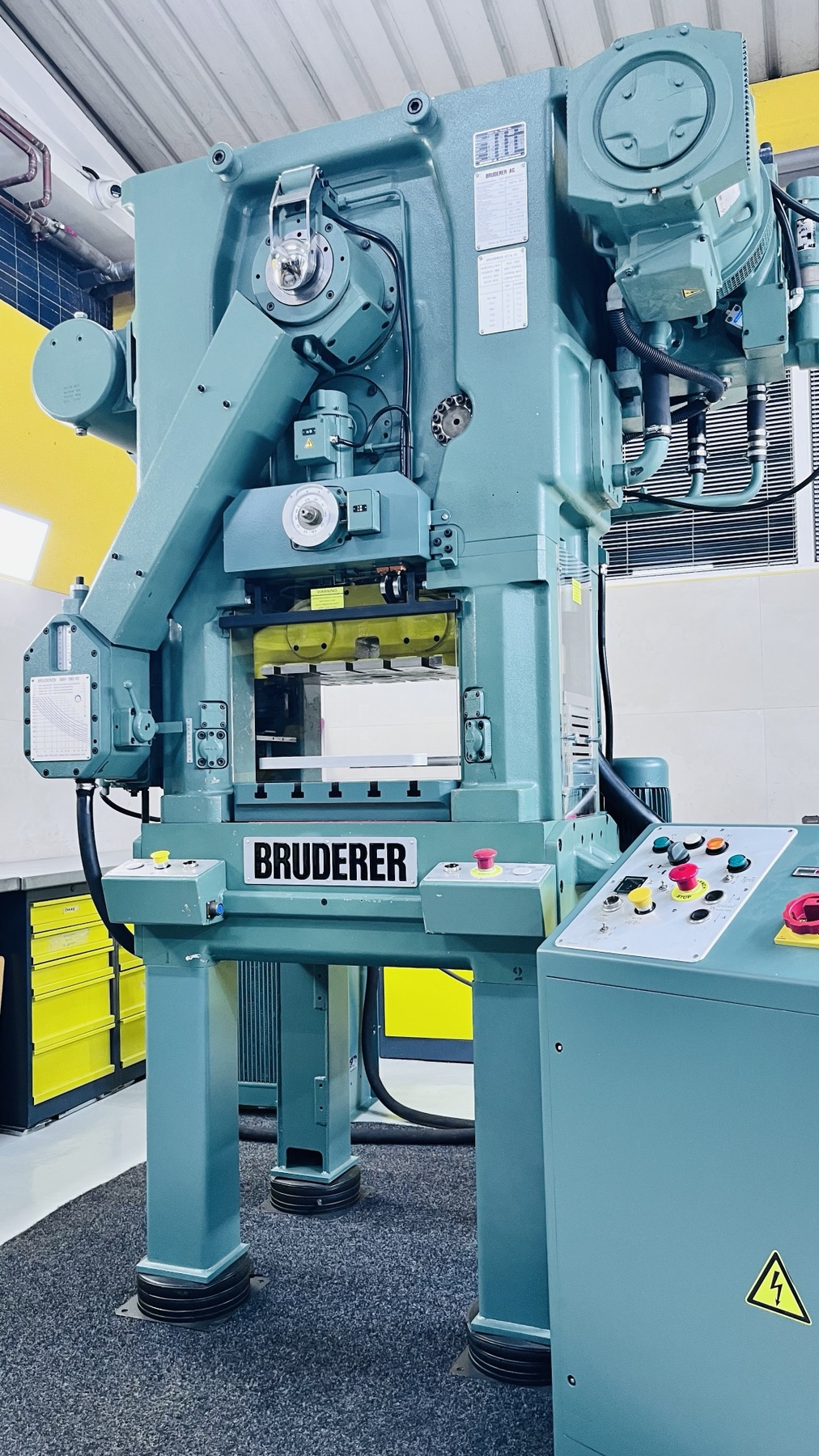

BRUDERER BSTA 25 Precision high speed punching press.
Nominal capacity: 250 kN; 25 tons.
Year of manufacture: 1988
Working hours: 7954
Min./Max. number of strokes: 100/940.
Max width of strip: 12 ...
BRUDERER BSTA 25 Precision high speed punching press.
Nominal capacity: 250 kN; 25 tons.
Year of manufacture: 1988
Working hours: 7954
Min./Max. number of strokes: 100/940.
Max width of strip: 120 mm.
Adjustable stroke: 8, 12, 15, 21, 27, 33 mm.

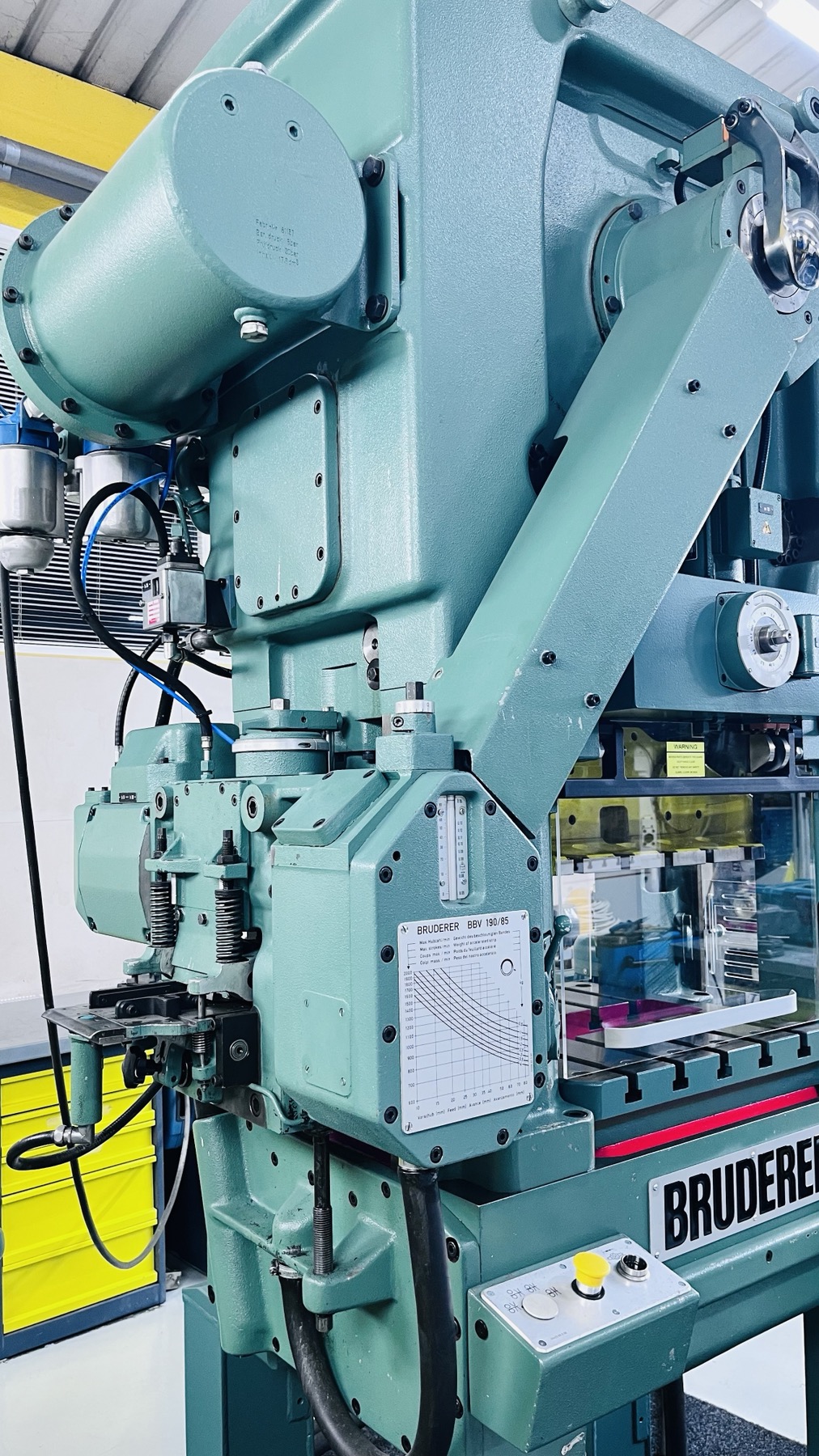

Fitted with roll feeder BBV 190/85 on left hand side.
Feed length variable up to 85 mm max.
Optional: Sound insulating cabin.
Condition: very good working and visual order.
Oil pump. Oil cooler.
Execution: 4 supports.
Front and rear safety guards.
Fitted on rubber feet.
Table dimensions: 530 x 530 mm.
Passage between the supports: Longitudinal 540 mm; Lateral 200 mm.
Slide/Ram adjustment 51 mm.
Documentation in German or English language included.
Press weight cca. 4800 kg.
Press dimensions: 2055 x 1355 x H2650 mm.
Also on stock high speed presses: Mabu, Schaal, Bihler and other Bruderer models. Also Soprem, Kohler and Ideal BAS welders.
