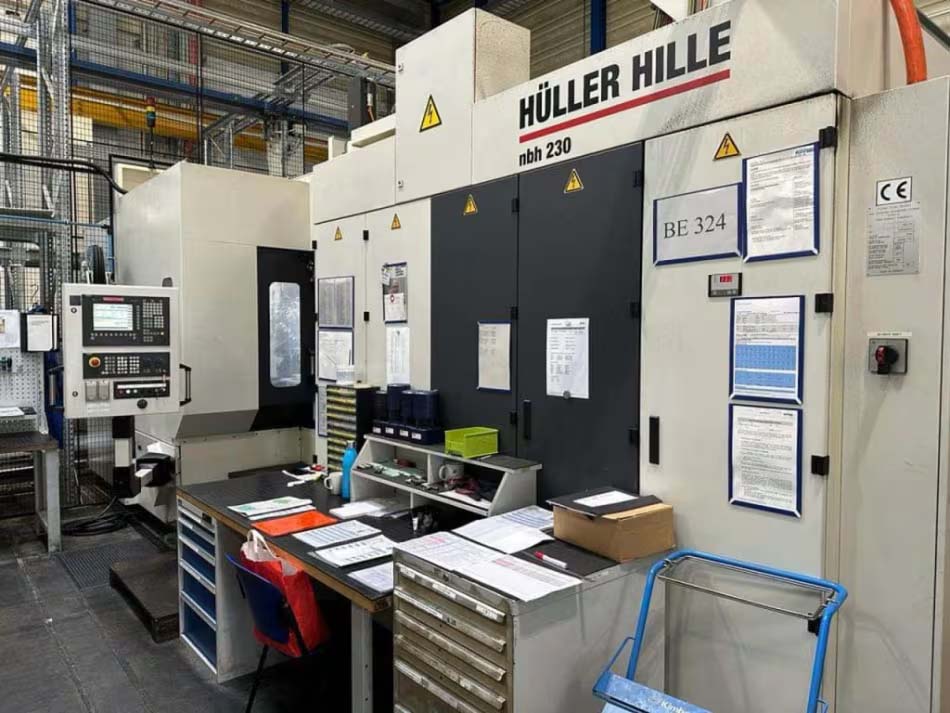

HULLER HILLE NBH 230 / NBH 290 R 2009
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND46139
Dati tecnici
- Condizione: usato
- Anno: 2009
Descrizione
2 HÜLLER HILLE NBH 230 / NBH 290 R horizontal machining centres,
Number of machines 2 - Max. table load 1200 / 2500Kg - Longitudinal travel (X-axis) 1200 / 1460mm - Cross travel (Y-axis) 800 / 100 ...
2 HÜLLER HILLE NBH 230 / NBH 290 R horizontal machining centres,
Number of machines 2 - Max. table load 1200 / 2500Kg - Longitudinal travel (X-axis) 1200 / 1460mm - Cross travel (Y-axis) 800 / 1000mm - Vertical travel (Z-axis) 1200 / 1200mm - B-axis 9999° Table revolutions 15RPM - Table holding torque 10000 Nm - Tilting torque 29000 Nm - Pallets: Number 10 / 10 - Length 630 / 1000mm - Width 630 / 800mm - Maximum workpiece weight 2500Kg - Tool changer: Number of positions 300 - Max. tool Ø. 125mm - Max. Ø with free places 250mm - Max. tool length 650mm - Max. tool weight 40Kg - Tool change time 2.5 - 4. 5 seconds - Average chip change time 7 - 9 seconds - Spindle taper: SK 50 DIN69871 - Distance between spindle nose and table 130mm - Spindle speed: Variable (infinitely variable) from 25RPM to 6000RPM - Maximum torque 900 / 1130 Nm - Feed speed 1 - 36000mm/min - Rapid feed: 36 m/min - Power supply 50 Hz 3x 400 Volt - Machine weight approx. 30000Kg - Space requirement approx. 25 X 12 m2 - Miscellaneous accessories: FMS (Flexible Manufacturing System), LPP (pallet change system), EROWA zero-point clamping system ,Coolant system 1250 l , Paper filtration, Tool breakage monitoring, Tool holder set ca. 700x, Oil mist extraction - origin Germany - internal ref 22513. Serial NBH230 A1003050.01 / NBH290 A1003118.01, Year 2009. Site: 5102 Rupperswil, Switzerland.
