SIP HYDROPTIC 6A 1977
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND46865
Dati tecnici
- Condizione: usato
- Anno: 1977
Descrizione

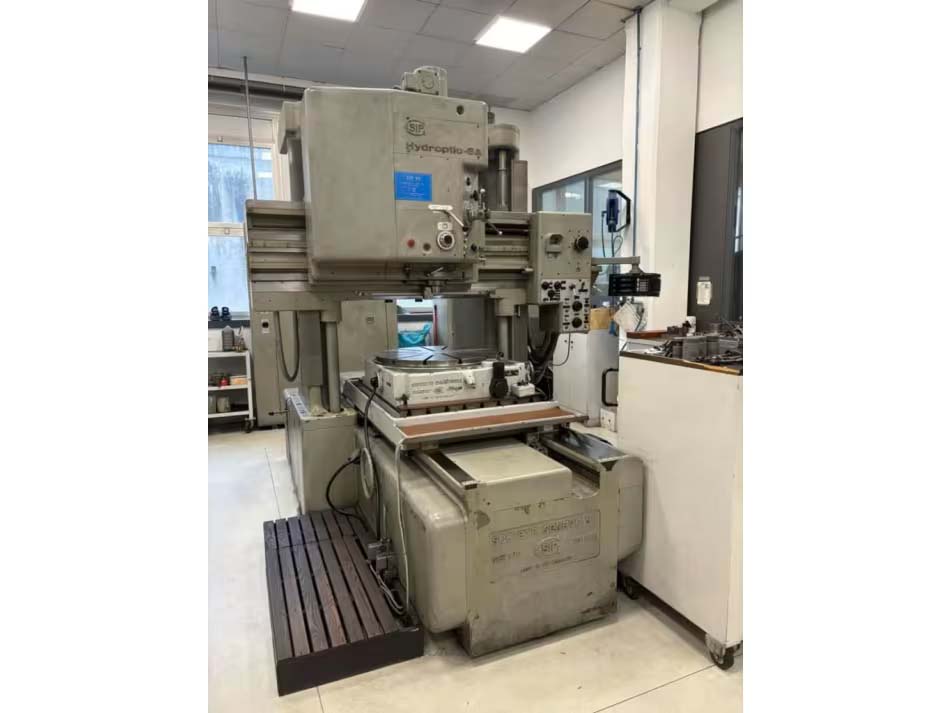

SIP HYDROPTIC 6A pointing machine,
Table length 1100mm - Table width 842mm - Longitudinal travel (X-axis) 1000mm - Cross travel (Y) 795mm - Vertical travel (Z-axis) 800mm - Drilling capacity in ste ...
SIP HYDROPTIC 6A pointing machine,
Table length 1100mm - Table width 842mm - Longitudinal travel (X-axis) 1000mm - Cross travel (Y) 795mm - Vertical travel (Z-axis) 800mm - Drilling capacity in steel 55mm - Spindle taper: CM 4 - Drilling spindle travel (Z-axis) 250mm - Bore Ø: max. 300mm - Spindle speeds: number (stages) 18 - from 40RPM to 2000RPM - Feeds:Table: Variator (infinitely variable) at 300mm/min - Drilling head: number (stages) 6 - from 0.04mm/t to 0.35mm/t - Rapid feeds: Table:long 2500mm/min - transverse 2500mm/min - Distance between uprights 1100mm - Distance between spindle and table 900mm - Power supply 50 Hz 3x 380 Volt - Spindle motor 4. 00 HP - Total installed power 8.0 HP - Internal ref. 23180 - Machine weight approx. 7500Kg - Swiss origin. Serial 7706, Year 1977. Site: 24030 Brembate di Sopra, Italy.
