JUARISTI MDR-150-CF-MX 1987
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND5038
Dati tecnici
- Condizione: usato
- Anno: 1987
Descrizione
spindle diameter 150 mm
x-travel 3500 mm
y-travel 3000 mm
z-travel 2600 mm
W-axis (spindle longitudinal) 1000 mm
table surface area 2000 x 2000 mm
table load min. 8000 kg
spindle turning ...
spindle diameter 150 mm
x-travel 3500 mm
y-travel 3000 mm
z-travel 2600 mm
W-axis (spindle longitudinal) 1000 mm
table surface area 2000 x 2000 mm
table load min. 8000 kg
spindle turning speed - stepless 5 - 1000 U/min
spindle taper ISO 50
engine output 32 kW
feed 0,025 - 10 mm/U
rapid traverse 2500 mm/min
total power requirement 40 kW
weight of the machine ca. 39 t
dimensions of the machine ca. 7600 x 6000 mm
Machine height 5600 mm

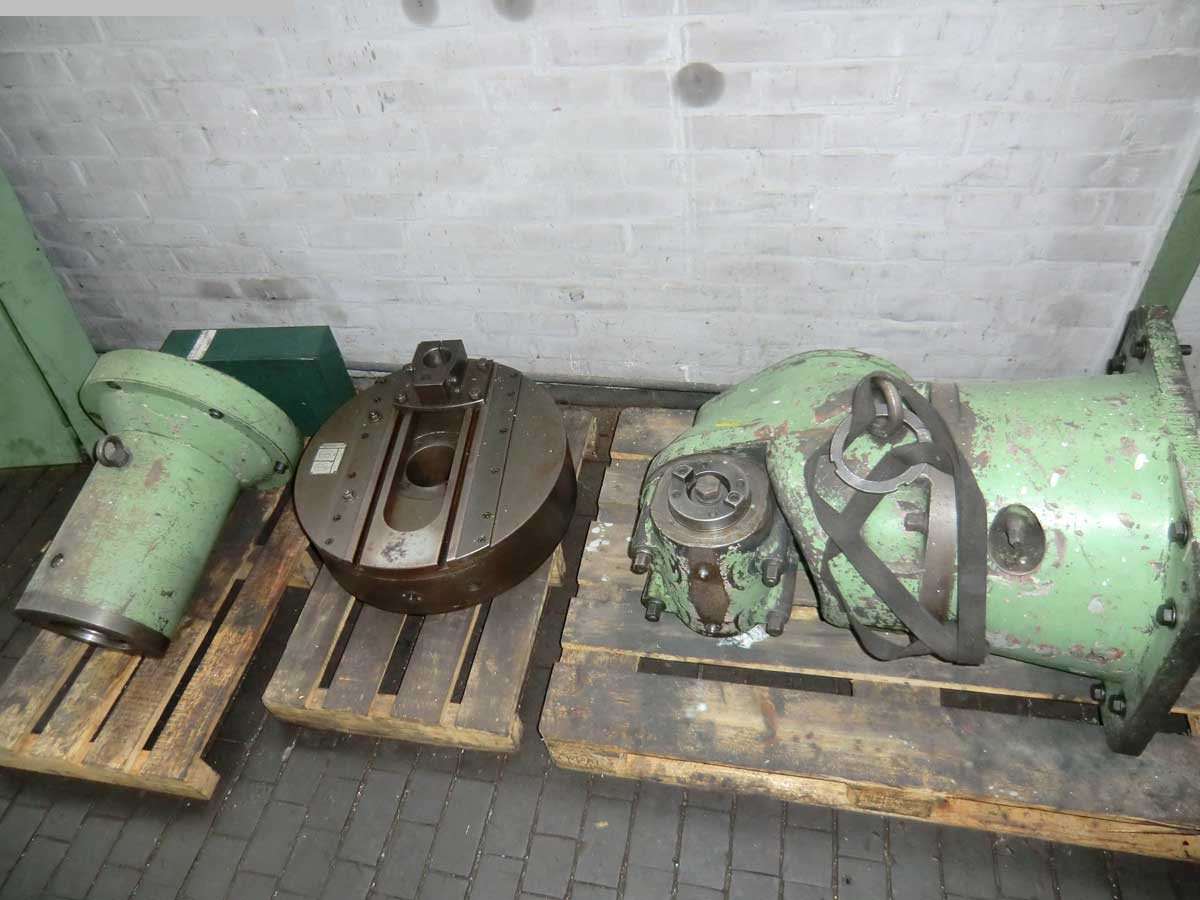

Accessories:
3-axis D.R.O., make Fagor
ball screws
auxiliary spindle support
universal milling head
facing head
machine documentation
Machine is in very good condition and can be inspected under power in our
warehouse.
Note: There is a machine-video on our website (www.knops.de)

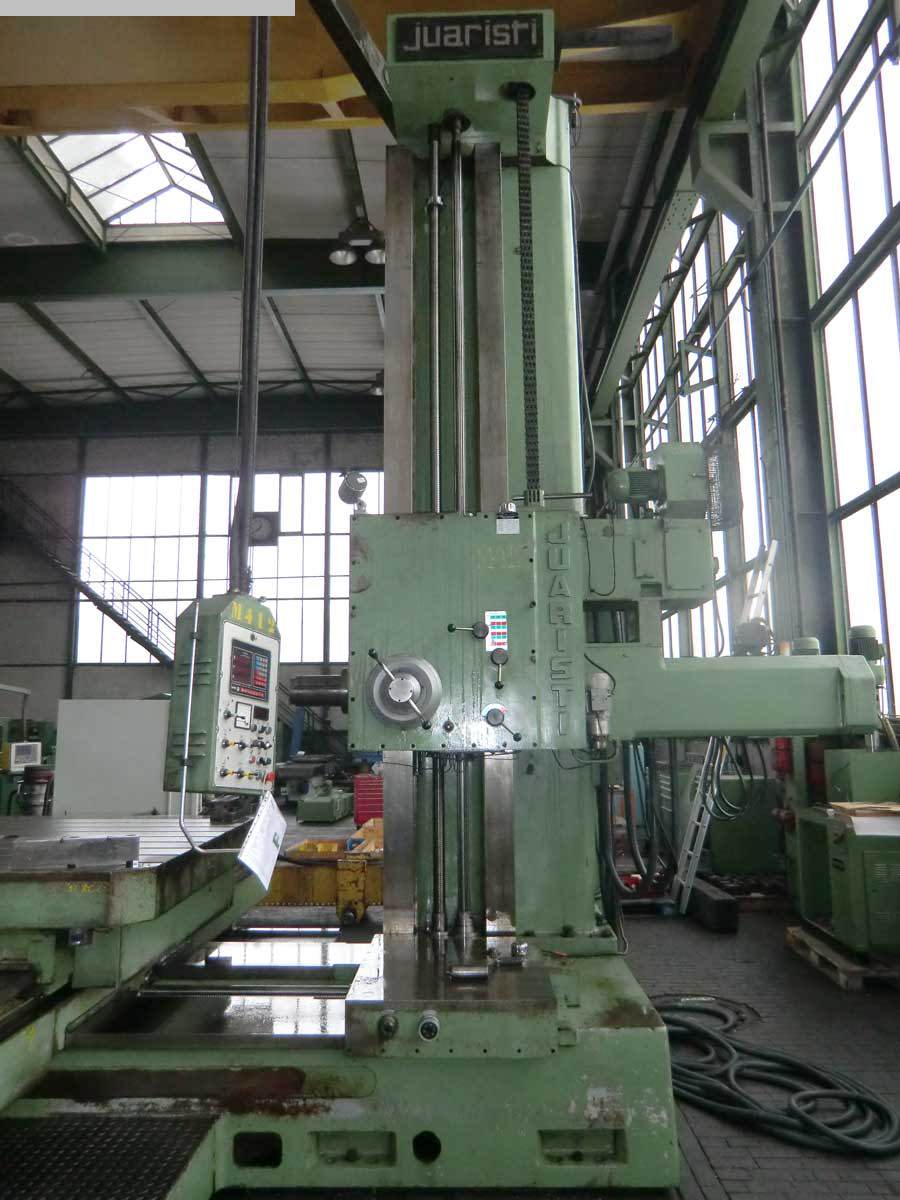

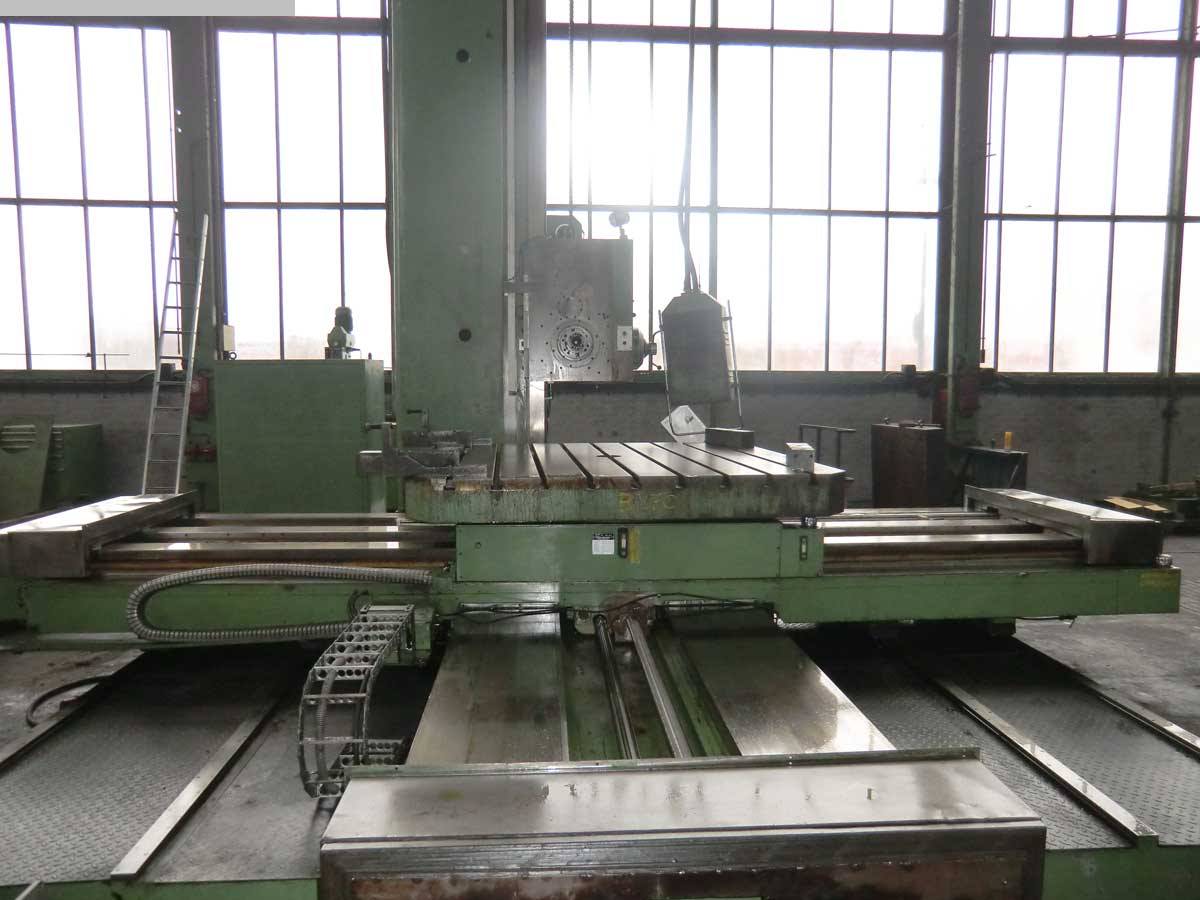

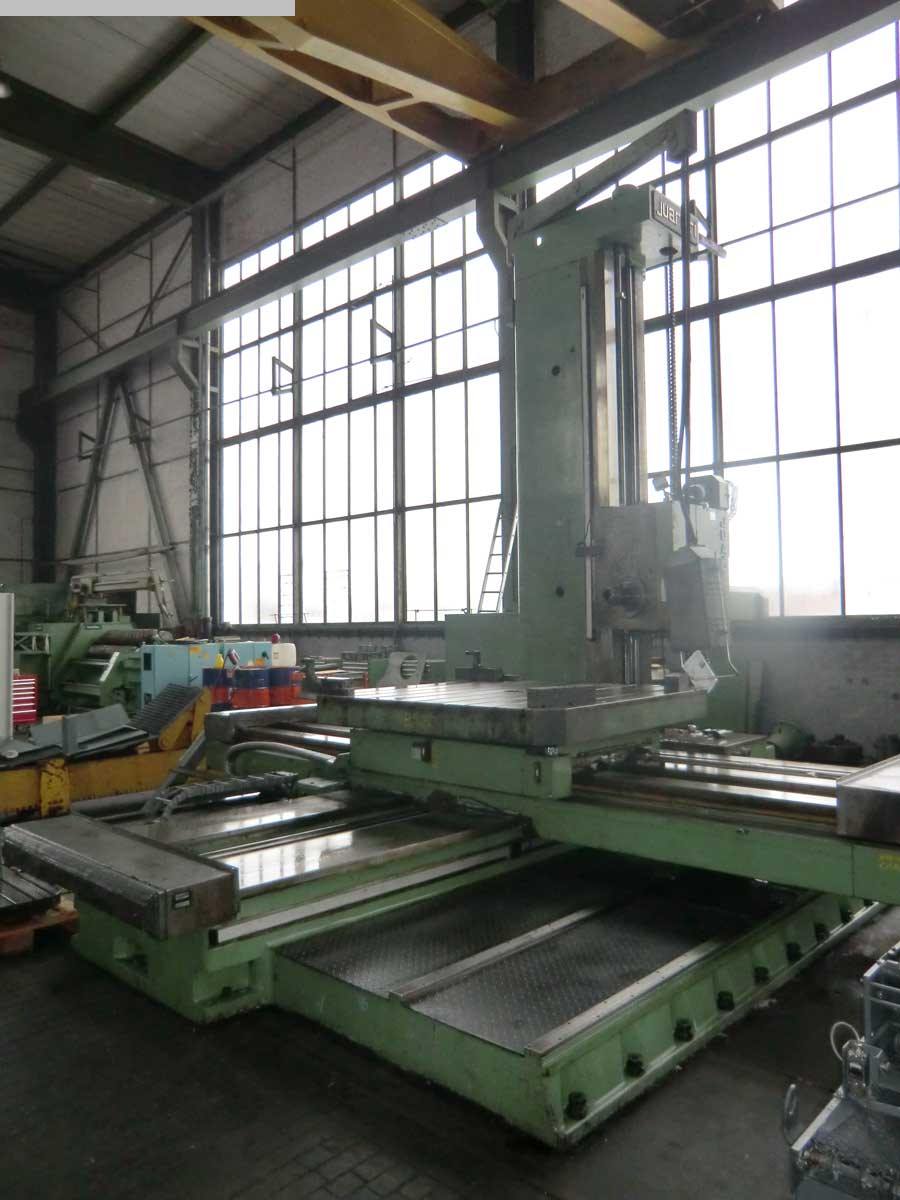

Pictures No. 1 to 9 show the machine at the current location in our warehouse
Düsseldorf.
The Picture No. 10 shows the machine at the previous owner in the factory in
Spain.
