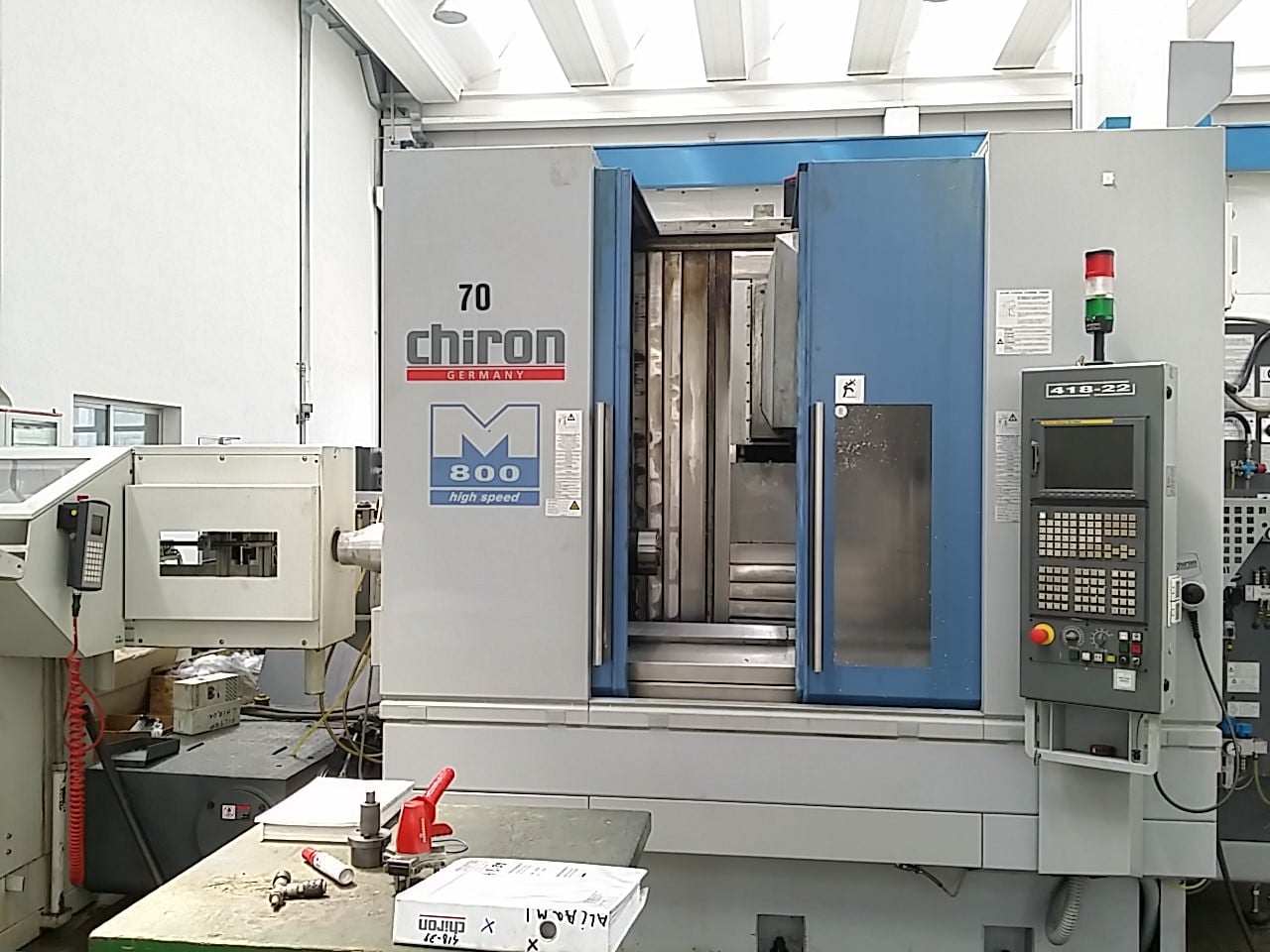

CHIRON MILL 800 5 axis Mill Turn 2006
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND8418
Dati tecnici
- Condizione: usato
- Anno: 2006
Descrizione
5 axis machininng center (milling/turning from bar)
Under power in our warehouse
MAKE CHIRON
MODEL MILL 800 5 axis
CNC Fanuc 18iMBS (5 simoultaneous axis 1*)
X, Y, Z (mm) 800 – 500 - ...
5 axis machininng center (milling/turning from bar)
Under power in our warehouse
MAKE CHIRON
MODEL MILL 800 5 axis
CNC Fanuc 18iMBS (5 simoultaneous axis 1*)
X, Y, Z (mm) 800 – 500 - 550
Rapids (Highspeed) 60 m/min
Swivelling head CNC controlled (B axis) +/- 100°

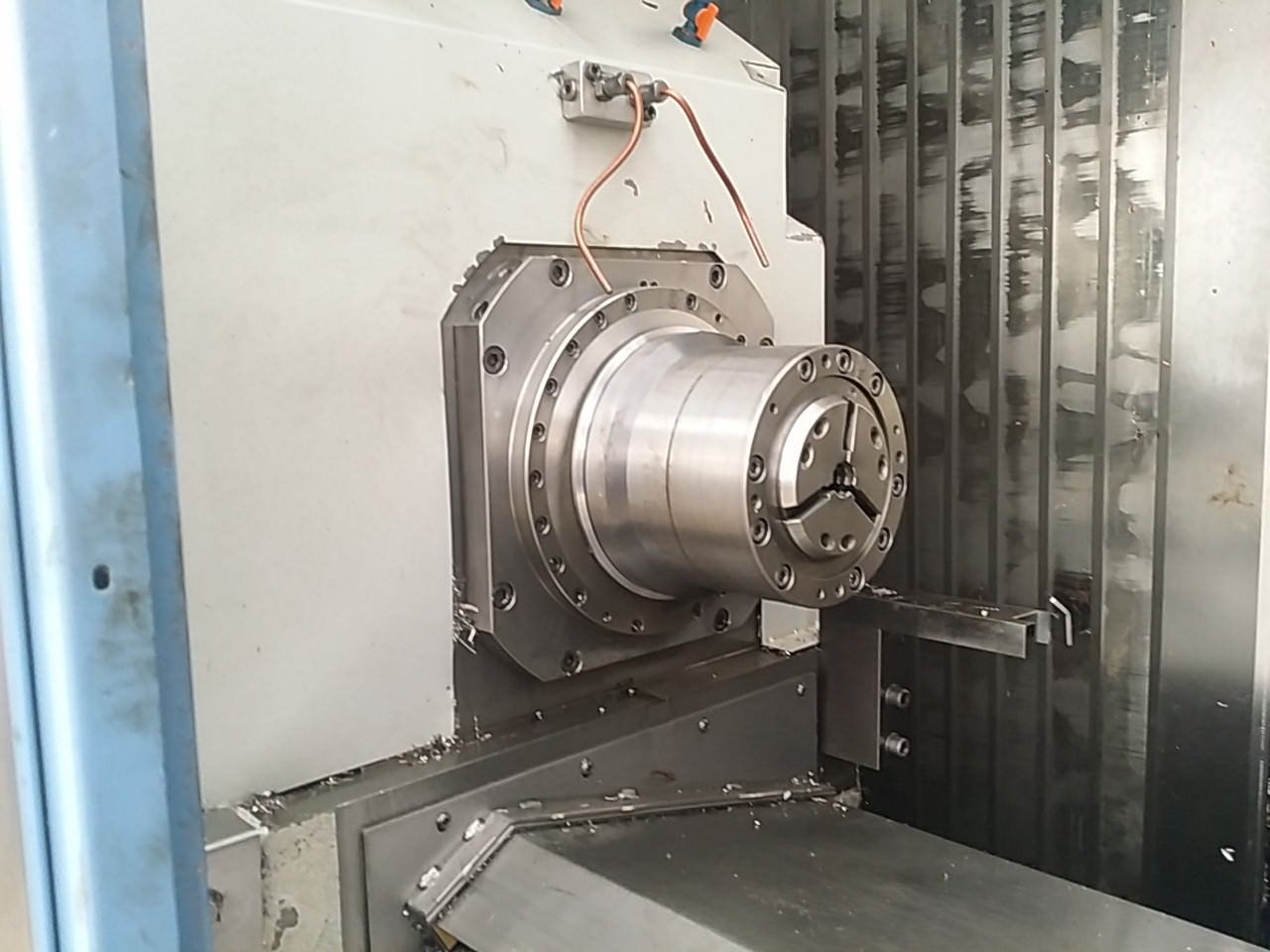

Turning spindle Peiseler
Milling spindle 12.000 giri / 140 Nm (v nota 2**)
Tools 65
Tool type HSK-A 63 DIN 69893
Tool-change time 1,5 sec (v nota 3***)
Table 1400x500
Max table load 1200 kgs
Coolant through spindle 70 bar (see note 4****)

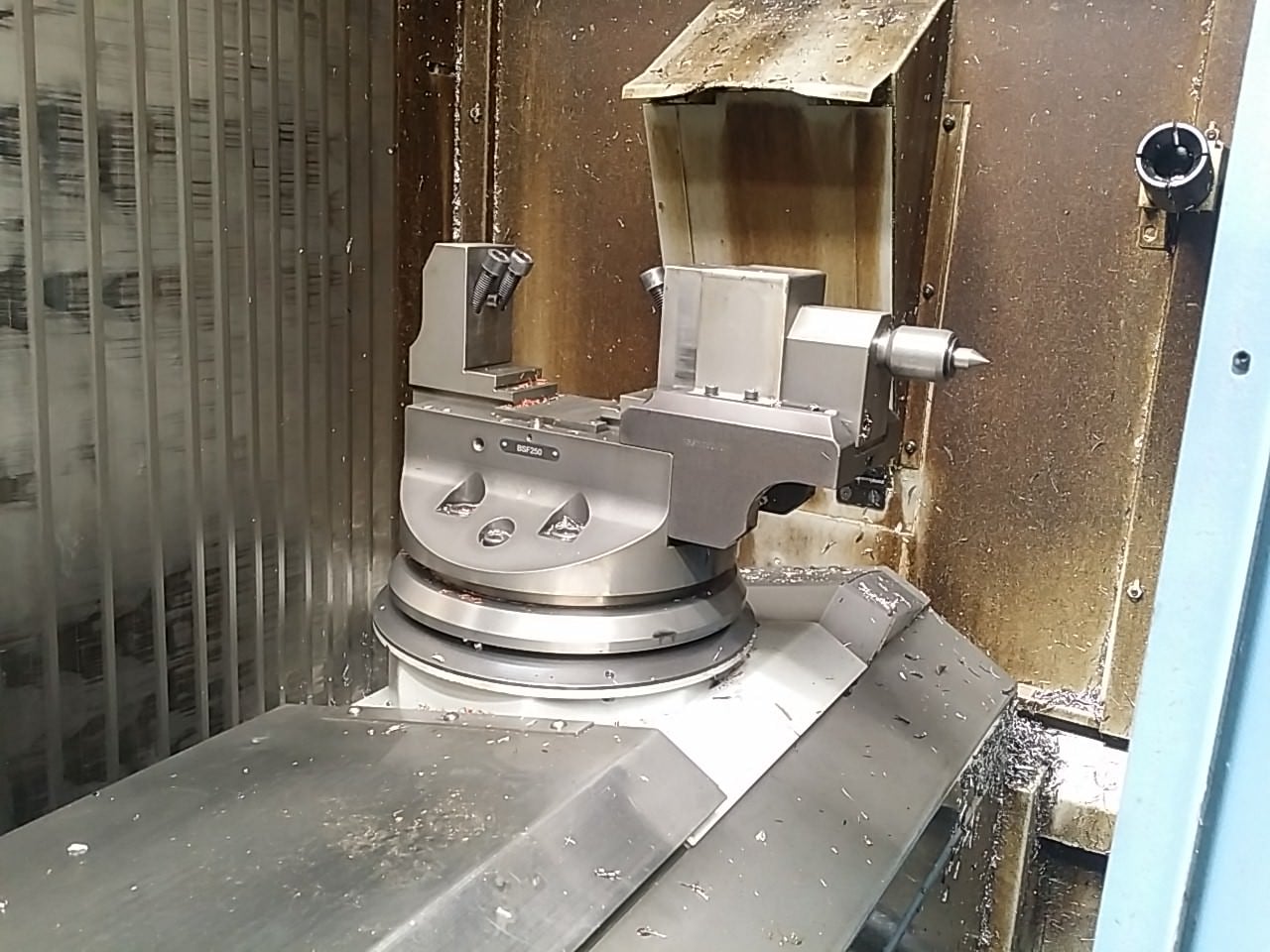

CNC controlled clamping/rotating unit for 6th face machining (v. nota 5)
Pressurised linear encoders
Swarf conveyor
Renishaw-ready
Y.O.M. 2006
Weight 7500 kgs
Turning package
Max dia 65mm
RPM: 15 / 4500
Max 42,5 KW / 90 Nm.
Hydraulic clamping 800 Nm.
Bar loader ILS-RBK- 10012 65
Diameters min/max 5/65 mm L= 600-1200 mm
Highspeed (2**)
60m/min.
Spindle 20-12.000 min.’ – 140 Nm.12.000 RPM
12,5 KW/Max 34kW
Swivelling head (CNC controlled) ± 100°

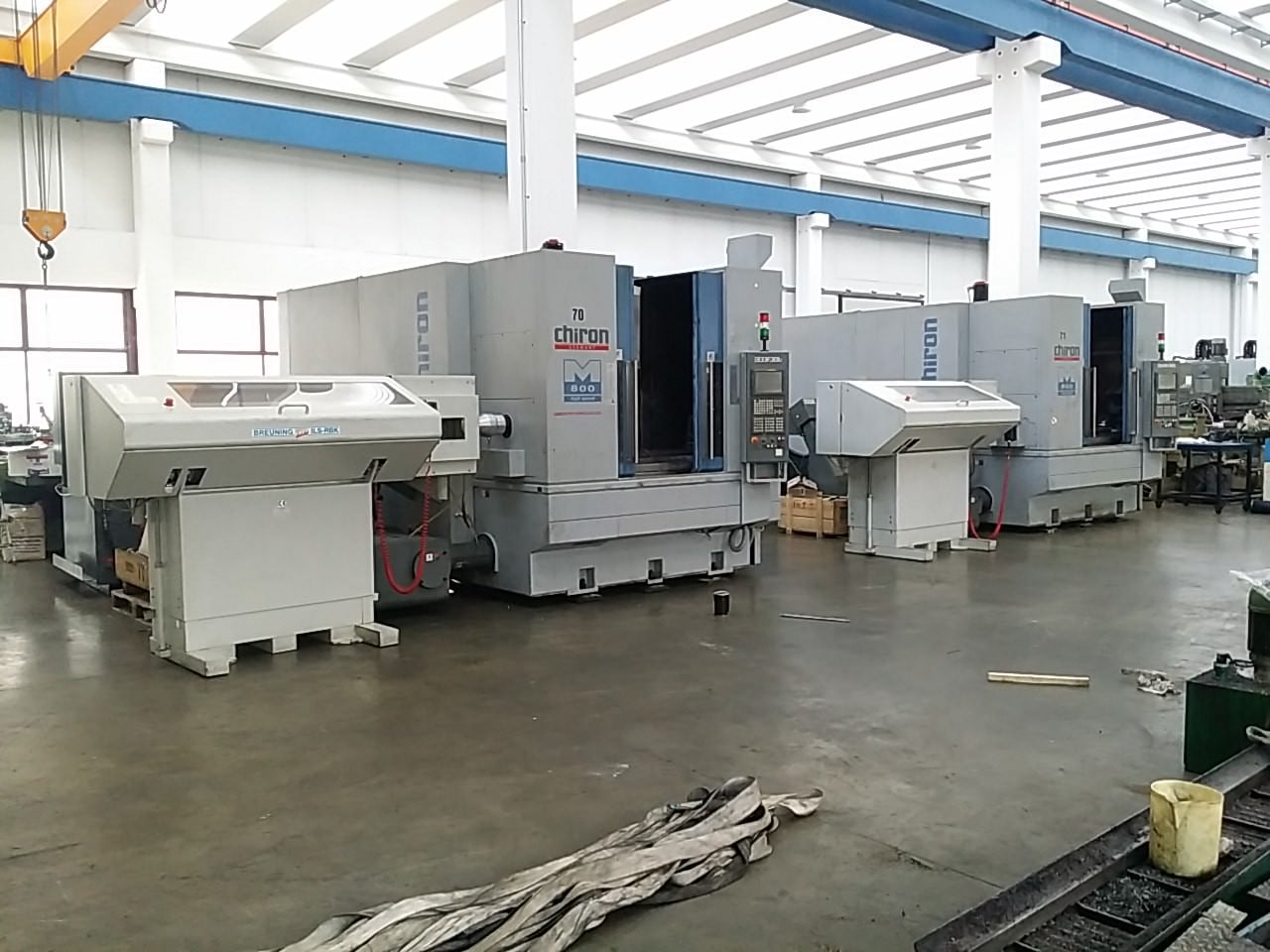

Can be inspected under power in our warehouse in Gussago BS Italy . Mimu macchine utensili / manchine tools.
