SCHIESS 20 DKE160 1982
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND8680
Dati tecnici
- Condizione: usato
- Anno: 1982
Descrizione

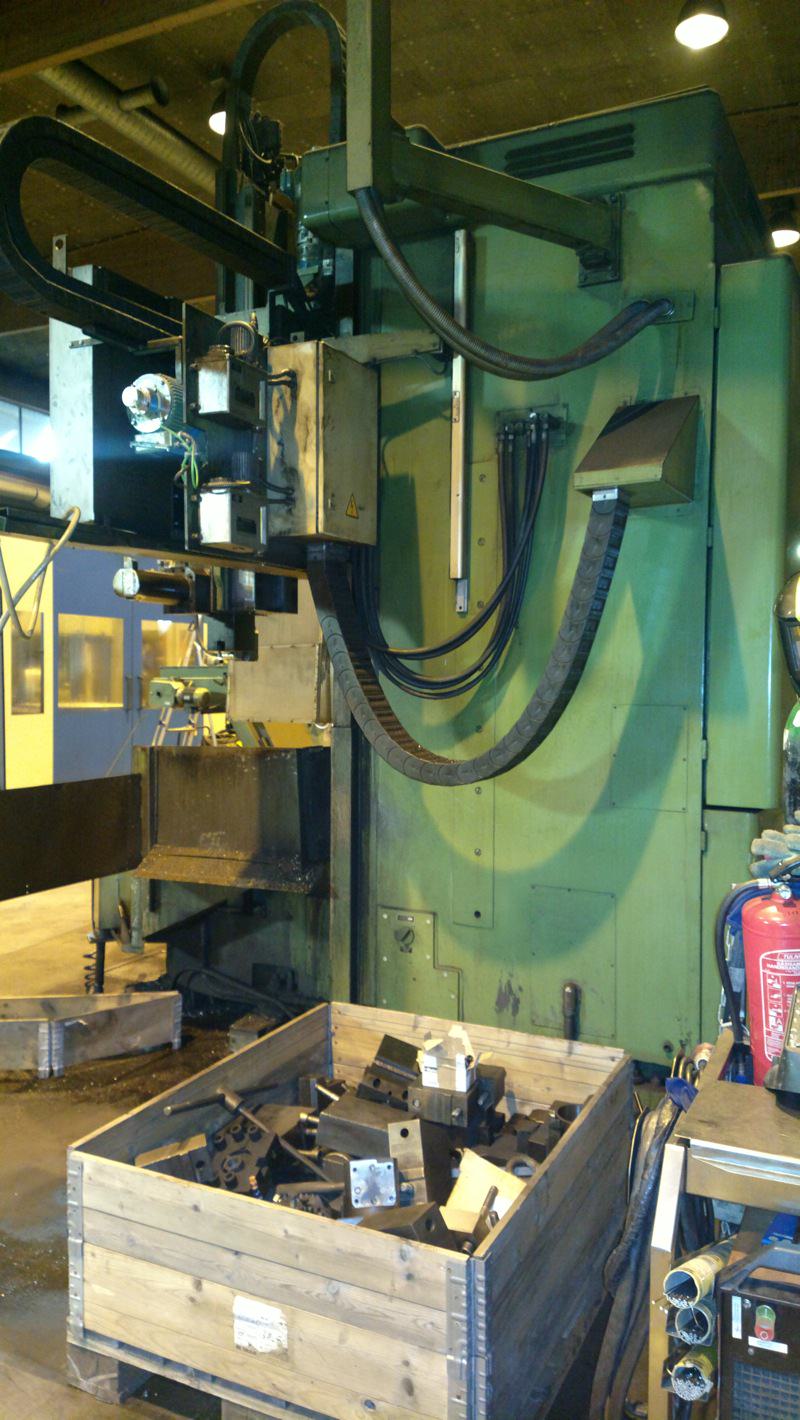

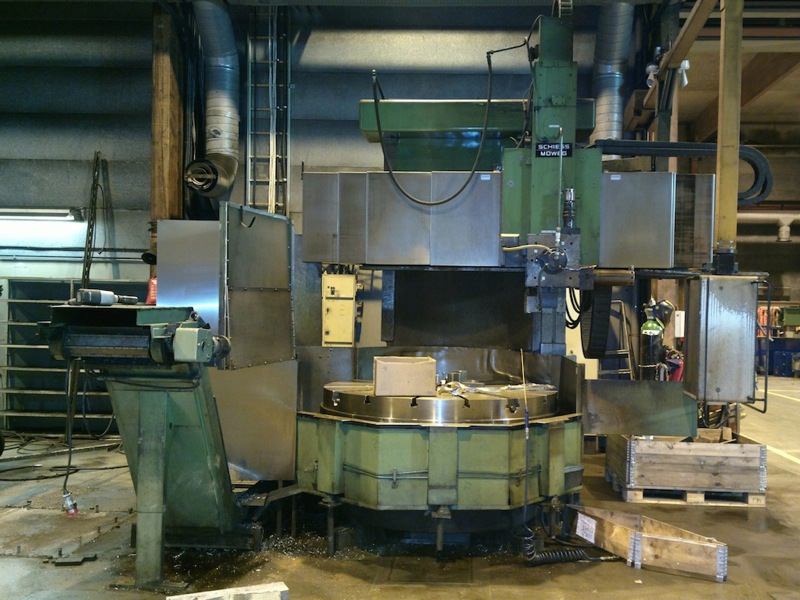

CNC Vertical Lathe Schiess 20 DKE 160
Year of manufacturing: 1982
Control: Siemens 810

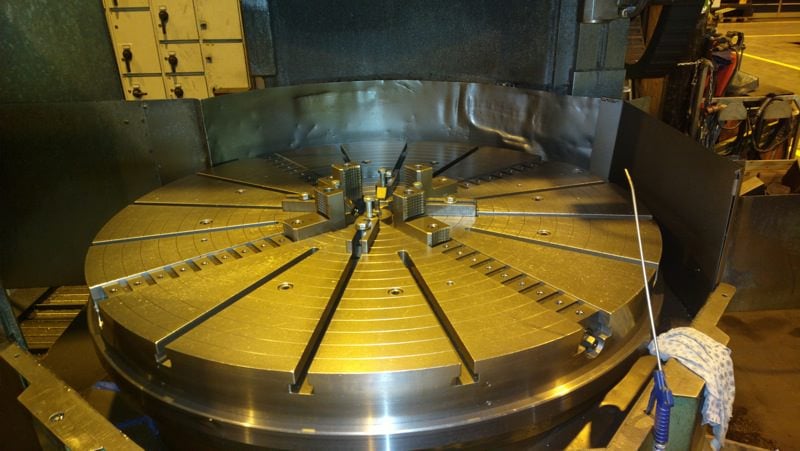

Faceplate diameter: 1600 mm
Max working diameter: 1800 mm
Max tur ...
CNC Vertical Lathe Schiess 20 DKE 160
Year of manufacturing: 1982
Control: Siemens 810
Faceplate diameter: 1600 mm
Max working diameter: 1800 mm
Max turning diameter: 2000 mm
Working height: 1250 mm
Spindle speed range: 4-200 rpm
Vertical- and side slide feeds: 0,03 - 6,3 mm/turn
Max faceplate load: 12.000 kg
Max internal working diameter revolver head: 580 mm
Cross beam vertical travel: 950 mm
Maximum travel of cross beam slides from faceplate center:
Right: 1120 mm
Left: 130 mm
Maximum cross beam revolver travel: 700 mm
Maximum distance between faceplate and revolver slide: 1475 mm
Revolver head: 400 x 400 mm
Cross slide tilting: +-45 decrees
Slide travel: 725 mm
Main motor: 55 kW
Dimensions: 4500 x 5000 x 4500mm
Weight: 18t
