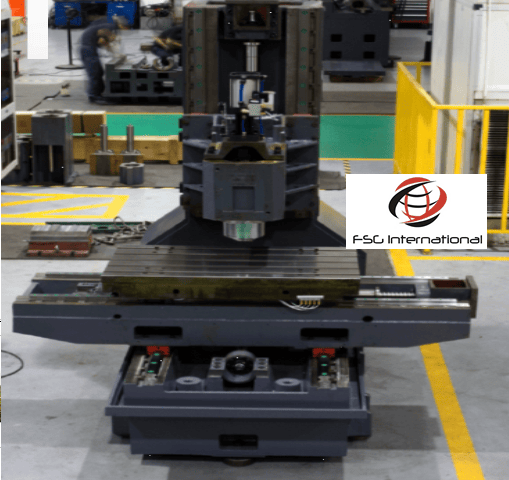

VMC1100 2016
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND9394
Dati tecnici
- Condizione: usato
- Anno: 2016
Descrizione
Technical Specification
Standard Machine
Travel（X/Y/Z...................................................1000/520/560 mm
Spindle nose to machining table...................... 150~710mm;
Workt ...
Technical Specification
Standard Machine
Travel（X/Y/Z...................................................1000/520/560 mm
Spindle nose to machining table...................... 150~710mm;
Worktable（Length× Width).............................1100×520 mm;
Max. load capacity........................................... 750kg
T slot No.*width*distance................................ 5*18*100
Spindle speed...................................................10~8000 rpm
Spindle motor ...................................................7.5/11 kW
Spindle taper..................................................... BT40
Rapid feed speed(X/Y/Z-axis) ..........................36/36/30m/min H model ..........................................................................30/30/24m/min S model
Cutting feed speed............................................ 1~10000 mm/min
Tool magazine capacity.................................... 24T
Max diameter/length/weight of tool................... 78mm/300mm/8kg
Max tool dia. (without adjacent tool)................. 130mm
Tool change way .............................................. random
Tool change time ...............................................1.8s
Positioning accuracy (X/Y/Z-axis).....................0.008/0.008/0.008 mm
Repeatability (X/Y/Z-axis)..................................0.005/0.005/0.005mm
Max drilling diameter ..........................................Æ40
Max tapping screw diameter............................. M20
Milling capability................................................ 200 cm³/min
Power capacity:.................................................25 KV A,
Air pressure....................................................... 6-8 bar
Cooling tank capacity:.......................................300L
Machine Dimension (l ×w ×h):......................... 4200×2300×3000mm
Net weight:.........................................................7000kg
a) FANUC Oi Mate MD
b).Hand held operating unit
c).Arm-type tool magazine 24 tools

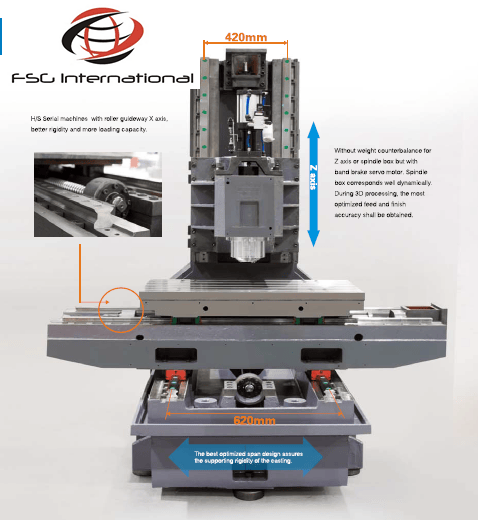

d).X/YZ/ linear guide way ;
e).Chain-type chip conveyor;
f). Electric cabinet air-conditioner ;
g).Automatic lubricating system;
h).Tri-color lamp;
i). Air through spindle;
j). Air curtain protection;
k).Air gun;
l).Work lamp;
m).Random technique standard document &accessories
n).Basal installation package
