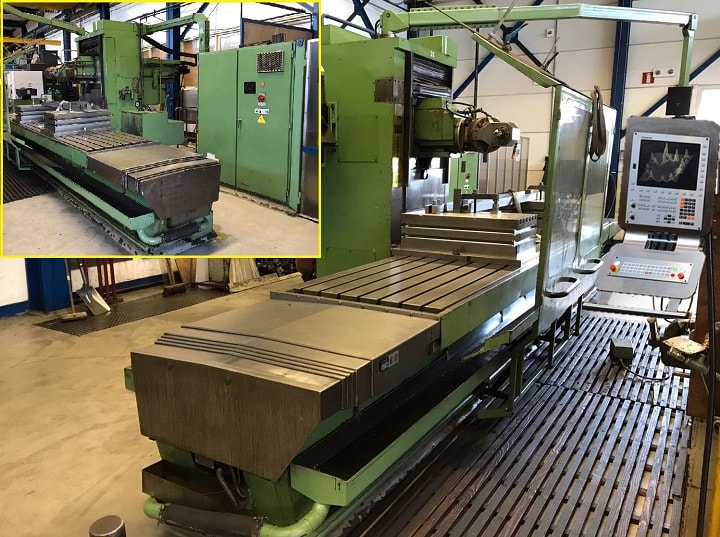

CORREA A25/50 - 9252316 1990
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND17096
Dati tecnici
- Condizione: usato
- Anno: 1990
Descrizione
Retrofitted: 2018

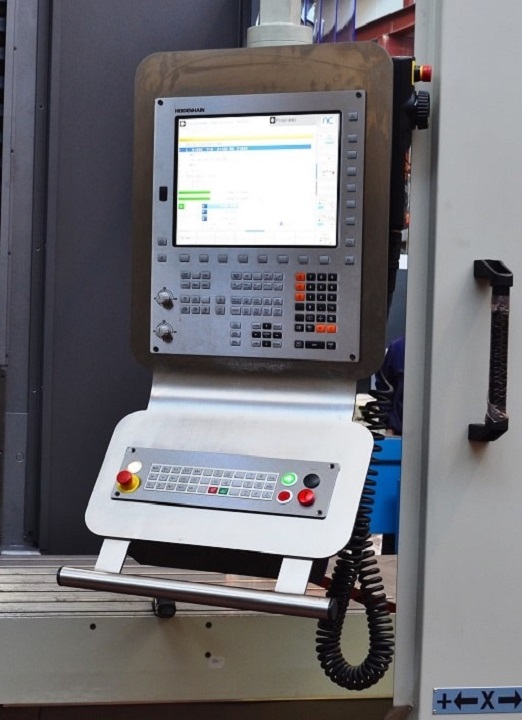

Numerical control: HEIDENHAIN TNC-320
Technical features
Dimensions
Table dimensions: 5000 x 1000 mm
Number of T slots: 7
T slots dimensions: 22 mm
Traverses ...
Retrofitted: 2018
Numerical control: HEIDENHAIN TNC-320
Technical features
Dimensions
Table dimensions: 5000 x 1000 mm
Number of T slots: 7
T slots dimensions: 22 mm
Traverses of axis
X axis traverse (mm): 5000
Y axis traverse (mm): 1200
Z axis traverse (mm): 1000
Milling head
Head type: Universal Manual (U-25)
Tool clamping system: Hydraulic
Taper nose: ISO 50
Spindle power: 20 kW
Speed range: 20 - 2500 rpm
Feedrates
Feedrate: 2 - 5000 mm/min
Rapid feedrate (X / Y, Z): 5000 / 7000 mm/min
Weight and dimensions
Max weight on table: 7000 kg
Machine weight: 23000 kg
Machine dimensions: 11630 x 4800 x 2700 mm
Accesories
Guarding
NEW! Electronic handwheel: HR-510
Sales conditions
Warranty: 6 months mechanical spare parts
Sale price (Ex Work): On request
