MATSUURA Cubex 25 2008
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND17666
Dati tecnici
- Condizione: usato
- Anno: 2008
Descrizione

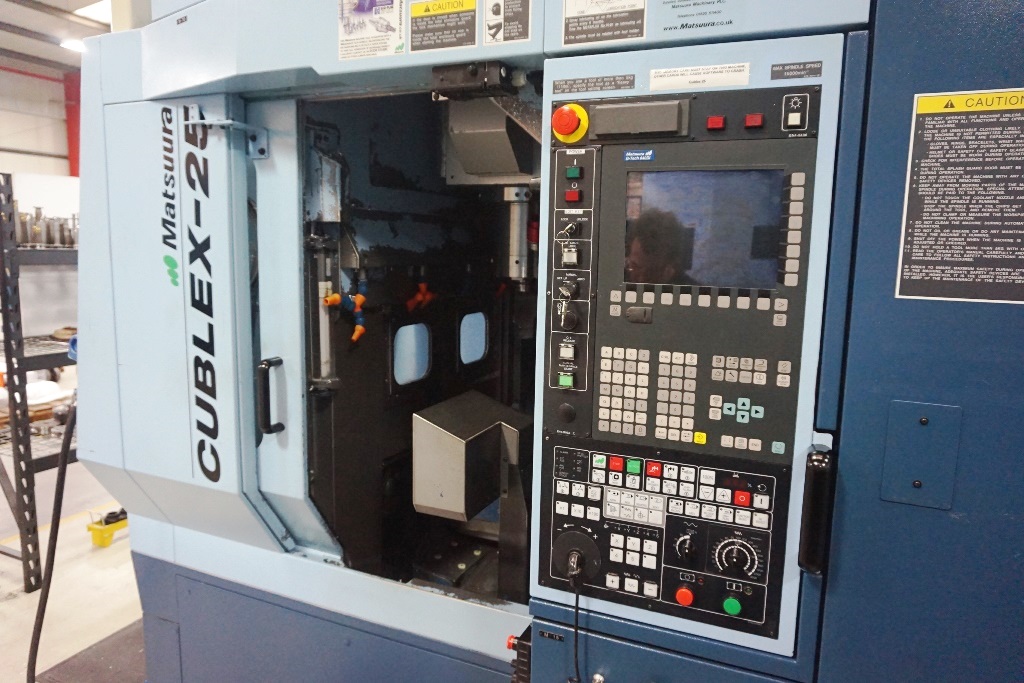

Matsuura Cublex 25 5 Axis Vertical Twin Pallet Turning/Milling Machining Centre with G-Tech 840 Di Control, Maximum Spindle Speed 15000rpm, HSK 63 Spindle Taper, Axis Travels X=550mm Y=410mm Z=450mm B ...

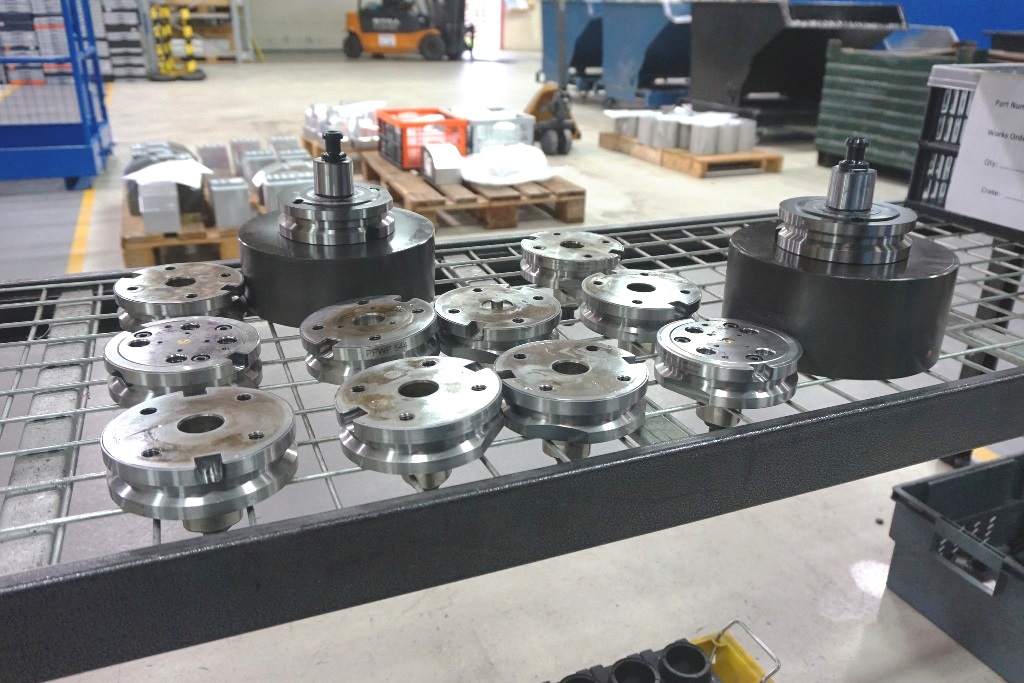

Matsuura Cublex 25 5 Axis Vertical Twin Pallet Turning/Milling Machining Centre with G-Tech 840 Di Control, Maximum Spindle Speed 15000rpm, HSK 63 Spindle Taper, Axis Travels X=550mm Y=410mm Z=450mm B=220 Degrees (-110/+110) C 360 Degrees, Maximum Table Speed for Turning 3000rpm, Rapid Feedrates 50m/Min 150 Station ATC, FSE Filtration System, 40 Bar Through Spindle Coolant, Filtermist FX4000 Fume Extraction, Pallet Diameter 130mm, Maximum Component Size D=250mm H=250mm, Renishaw Probe Interface, Tool Presetter, Swarf Conveyor, Swarf Bin, Approximately 12 Additional Pallets. S/No. 17777 (7/2008)
Please Note: This lot is located in Birmingham, United Kingdom
Please Note: This Item is part of an online auction ending: Thursday 1st March 2018 at 3:00pm (UK Time) For further details please visit our website www.cottandco.com
