CORREA CF25/25 2004
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND18806
Dati tecnici
- Condizione: usato
- Anno: 2004
Descrizione

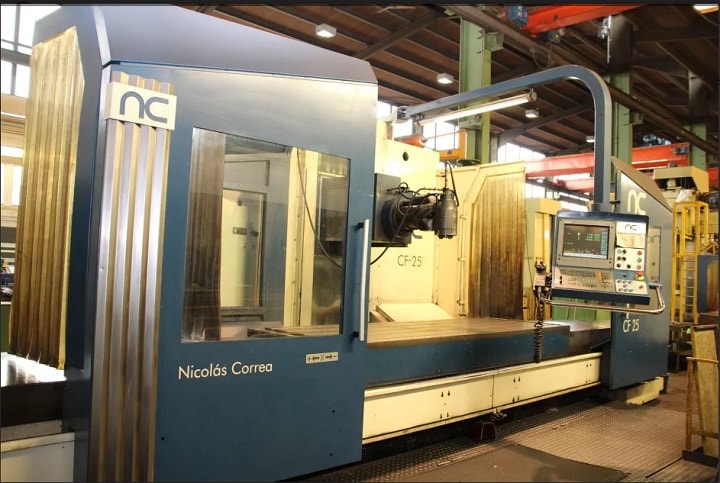

Milling machine CORREA CF25/25 - 625027 - Retrofitted: 2018 -
Numerical control: HEIDENHAIN TNC-530 - Technical features
Dimensions
Table dimensions: 2800 x 1000 mm
Number of slots: 5
...
Milling machine CORREA CF25/25 - 625027 - Retrofitted: 2018 -
Numerical control: HEIDENHAIN TNC-530 - Technical features
Dimensions
Table dimensions: 2800 x 1000 mm
Number of slots: 5
T slots dimensions: 22 mm
Traverses of axis
X axis traverse: 2500 mm
Y axis traverse: 1000 mm
Z axis traverse: 1000 mm
Milling head
Head type: Universal manual (U22)
Tool clamping system: Hydraulic
Taper nose: ISO 50 – DIN 69871
Speed range: 20 – 4000 rpm
Spindle power: 22 kW
Feedrates
Feedrate: 5 - 5000 mm/min
Rapid feedrate: 20000 mm/min
Weight and dimensions
Max Weight on table: 6000 kg
Machine weight: 20000 kg
Machine dimensions: 7750 x 3100 x 4400 mm
Accesories
Electronic handwheel: HR-410
Guarding
Sales conditions
Sale price (Ex Work): On request
Guarantee
