TRUMPF TruPunch 5000 (S12) 1600 2016
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND19059
Dati tecnici
- Condizione: usato
- Anno: 2016
Descrizione
Trumpf TruPunch 5000 (S12) 1600
Punching machine Trumpf TruPunch 5000 1600 (S12)
Year 2016
Machine hours: about 2500
Standard equipement:
Machine
Stable C-frame for easy access
Roll tables ...
Trumpf TruPunch 5000 (S12) 1600
Punching machine Trumpf TruPunch 5000 1600 (S12)
Year 2016
Machine hours: about 2500
Standard equipement:
Machine
Stable C-frame for easy access
Roll tables
Linear magazine for tool stations and clamps
21 tool stations, 4 clamps
Small part flaps 80 x 50 mm
Part flaps 500 x 500 mm
Chip container
1 part boxes
Possible retrofit for ToolServer
Zero stop inside

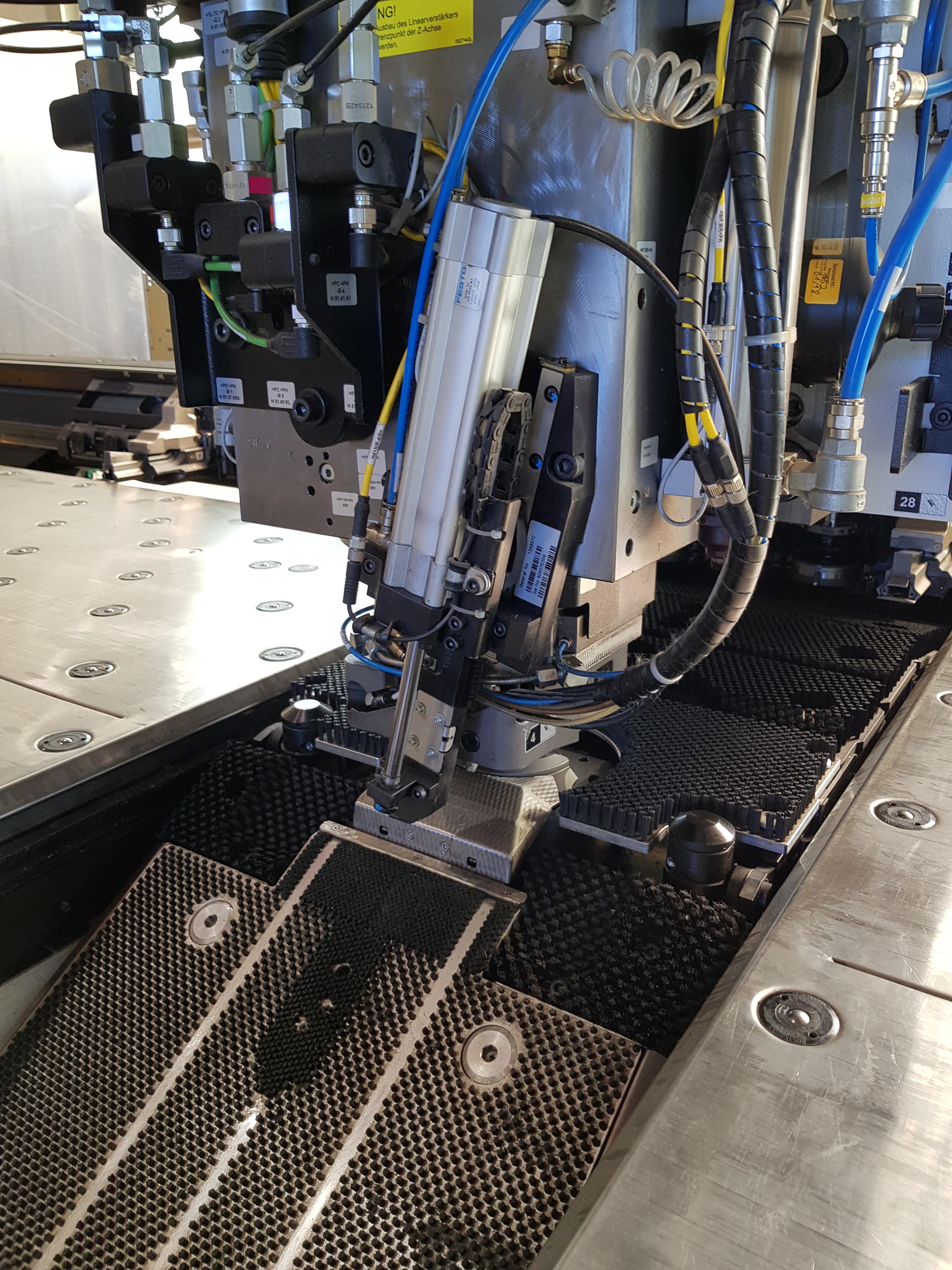

Punching head
Electro-hydraulic punching head 360° rotation
Programmable presser foot (active / passive / repositioning)
Automatic tool length compensation
Chip vacuum system with state monitoring
Stroke counter punches
Spray tool lubrication
Level monitoring for tapping oil and tool lubrification
On-Demand Drive
Stripper position measuring system with sheet thickness measurement
Control
Controller based on Siemens Sinumerik 840 D SolutionLine
19“ TFT colour screen with touch panel
Teleservice by internet
Automatic shut down mechanism
Data transfer
USB interface
RJ45 network connection
Wireless Operation Point
Safety
CE-marking
Lightguards
Quick switch-off hydraulic
Sheet collision detection
Programming
TruTops Punch through network access
Additional equipement:
Additional punching equipement
Function MultiTool
Function MultiBend
Function Tapping
Function Marking
Function Roll and Engraving technology
Active die incl. Brush part flap with function Marking from below
Additional equipement machine
Retractable clamps (4 pieces) (one by one open)
Automatic closing of clamps with mechanical sensor zero stop
Repositioning cylinder
17 RTC cartridges incl. die plates
Quickset
Quickload
Used punching tools
