DOOSAN VC 630/5AX 2012
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND19403
Dati tecnici
- Condizione: usato
- Anno: 2012
Descrizione
Doosan VC 630/5AX Simultaneous 5 Axis Vertical Machining Centre with Heidenhain iTNC 530 CNC Control, Maximum Spindle speed 12000rpm, BT40 Big Plus Spindle Taper, 40 Station ATC, Axis travels X=650mm, ...

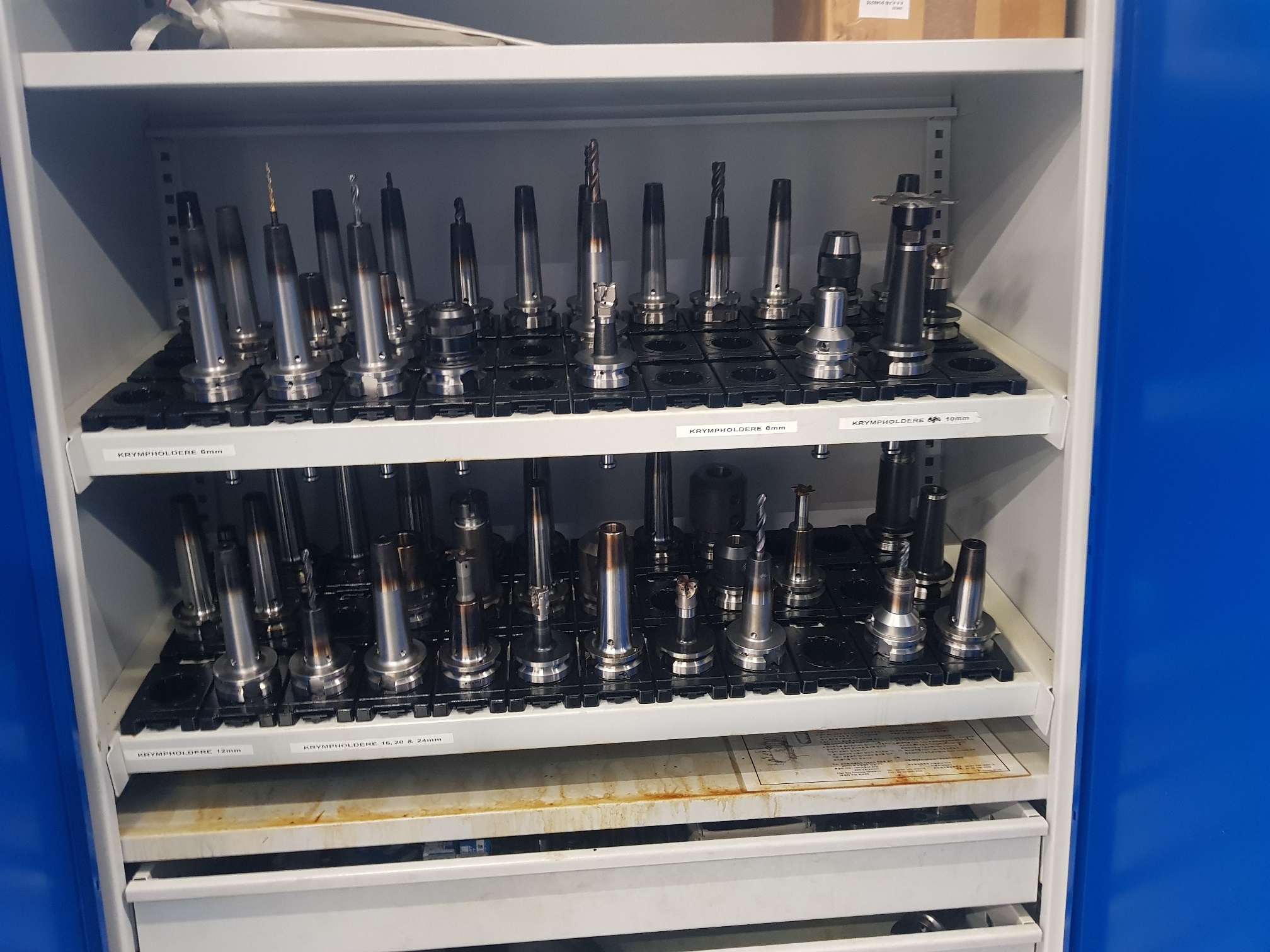

Doosan VC 630/5AX Simultaneous 5 Axis Vertical Machining Centre with Heidenhain iTNC 530 CNC Control, Maximum Spindle speed 12000rpm, BT40 Big Plus Spindle Taper, 40 Station ATC, Axis travels X=650mm, Y=765mm, Z=520mm, A=150 Degrees (+30/-120), C=360 Degrees, Rapid feedrates X/Y=40mm/min Z=36m/mm, A/C=20 r/min, Table diameter 630mm, Maximum load on Table 500kg with Heidenhain Probe System, Heidenhain TS 460 Probe, Through Spindle Coolant, Swarf Conveyor, Tooling. S/No MV0043-000158 (10/2012)
Please Note: This Item is part of an online auction ending: Thursday 4th October 2018 at 3:00pm (UK Time) For further details please visit our website www.cottandco.com
