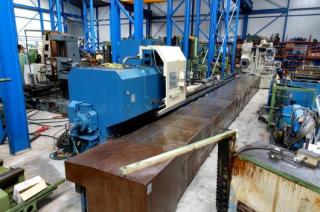

PARPAS ml90-4000 2000
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND20674
Dati tecnici
- Condizione: usato
- Anno: 2000
Descrizione
Stocknumber 1110034
Type of machine CNC Bedtype milling machine
Make PARPAS
Type ML 90/4000
Build in 2000

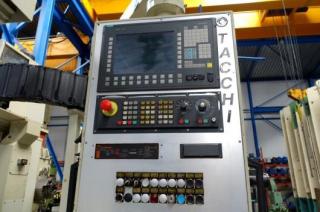

Type of control HEIDENHAIN TNC 426 M
X-stroke (mm) 4.000
Y-stroke (mm) 2.000
Z-stroke ...
Stocknumber 1110034
Type of machine CNC Bedtype milling machine
Make PARPAS
Type ML 90/4000
Build in 2000
Type of control HEIDENHAIN TNC 426 M
X-stroke (mm) 4.000
Y-stroke (mm) 2.000
Z-stroke (mm) Z=2.000, W=2000
Speeds (Rpm) max. 5.000
Admission in spindlehead SK 50
Rapid feeds 10.000 U/min.
Total Power (KW) 87 Kva
Additional information
CNC Controlled milling head 2,5 degrees
CNC controlled Rotary table (integrated in the CNC control of the Parpas machine) 3000 x 3000 mm, cap. 20 ton
Following controlunit for 7 axis
Clamping
Tool clamping and hydraulic weight compensation
Automatic central lubrication
Measuring system: Heidenhain type LS 186C / LS 106
Handwheel HR 419
