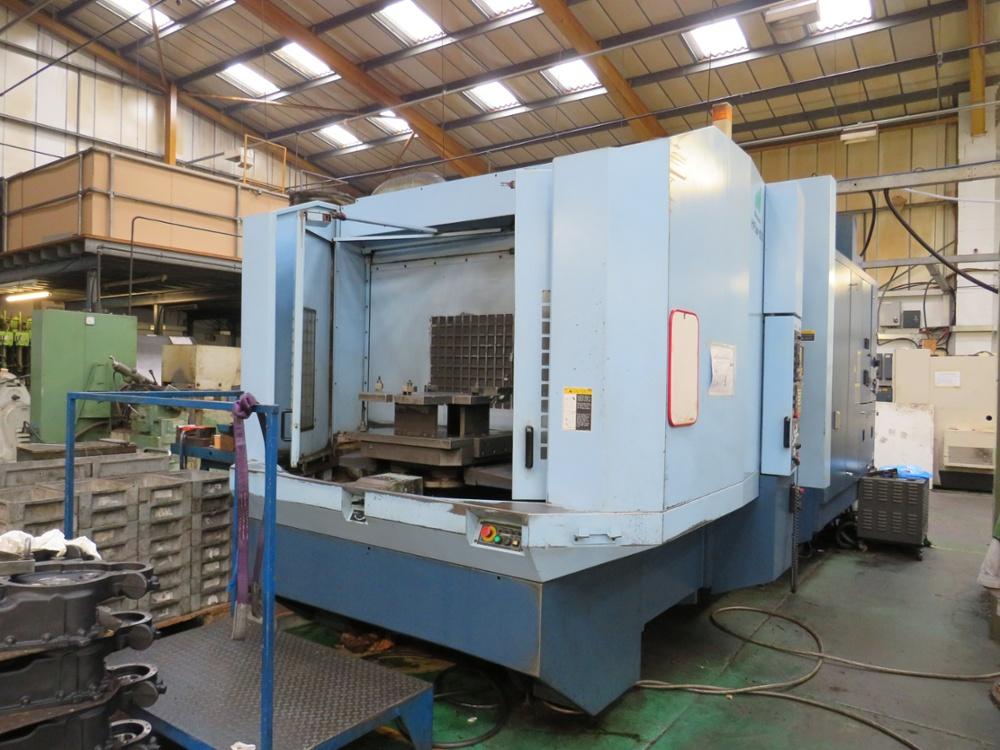

MATSUURA H Plus 630 2004
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND21833
Dati tecnici
- Condizione: usato
- Anno: 2004
Descrizione

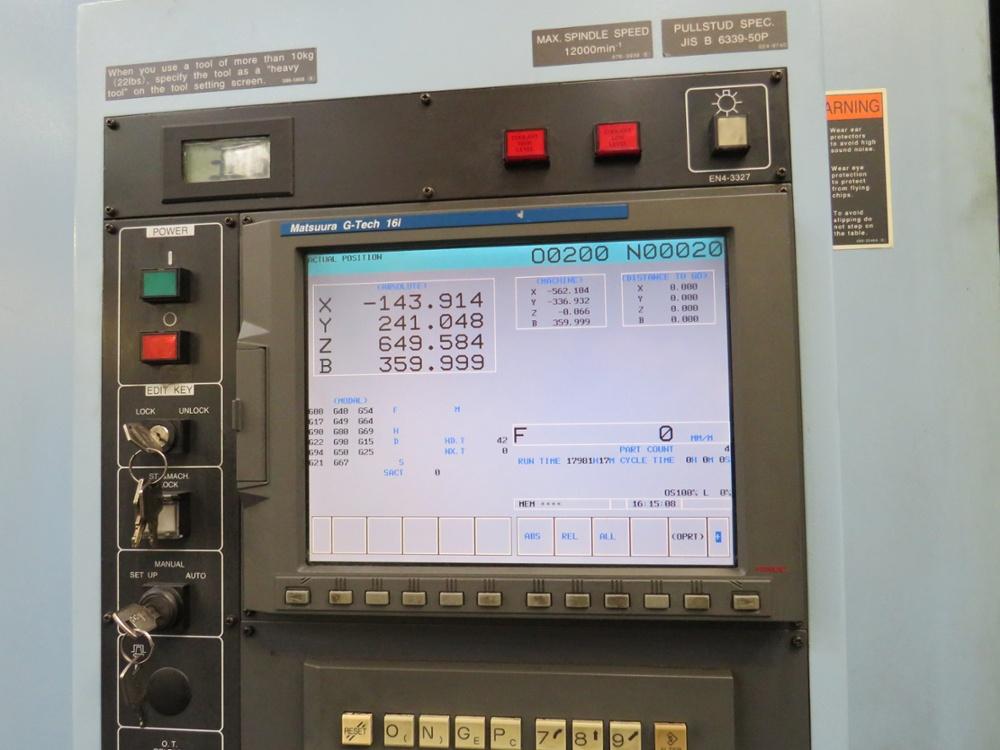

Matsuura H Plus 630 4-Axis Horizontal Machining Centre with Matsuura G Tech Control, 60 ATC, 630mm Pallet Size, Through Spindle Coolant, Full B Axis .001 degrees on Rotary Table, Conveyor, 1050mm (X A ...
Matsuura H Plus 630 4-Axis Horizontal Machining Centre with Matsuura G Tech Control, 60 ATC, 630mm Pallet Size, Through Spindle Coolant, Full B Axis .001 degrees on Rotary Table, Conveyor, 1050mm (X Axis) Table Longitudinal Travel, 920mm (Y Axis) Headstock Vertical Travel, 870mm (Z Axis) Column Traverse Travel, 75 - 995mm Table Top to Spindle Centre, 150 - 1020mm Table Centre to Spindle Gauge Line, 1,200kg Pallet (Table) loading capacity, 45 - 12,000min Spindle Speed, Approx. 21,000kg Machine Weight, Approx. 3503mm Machine height. S/No. 15826 (2004) with Swarf Bin.
Please Note: This lot is located in Rainham, Essex.
Please Note: This Item is part of an online auction ending: Wednesday 24th April 2019 at 3:00pm (UK Time) For further details please visit our website www.cottandco.com
