MIYANO BNJ-51SY2 2008
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND26181
Dati tecnici
- Condizione: usato
- Anno: 2008
Descrizione

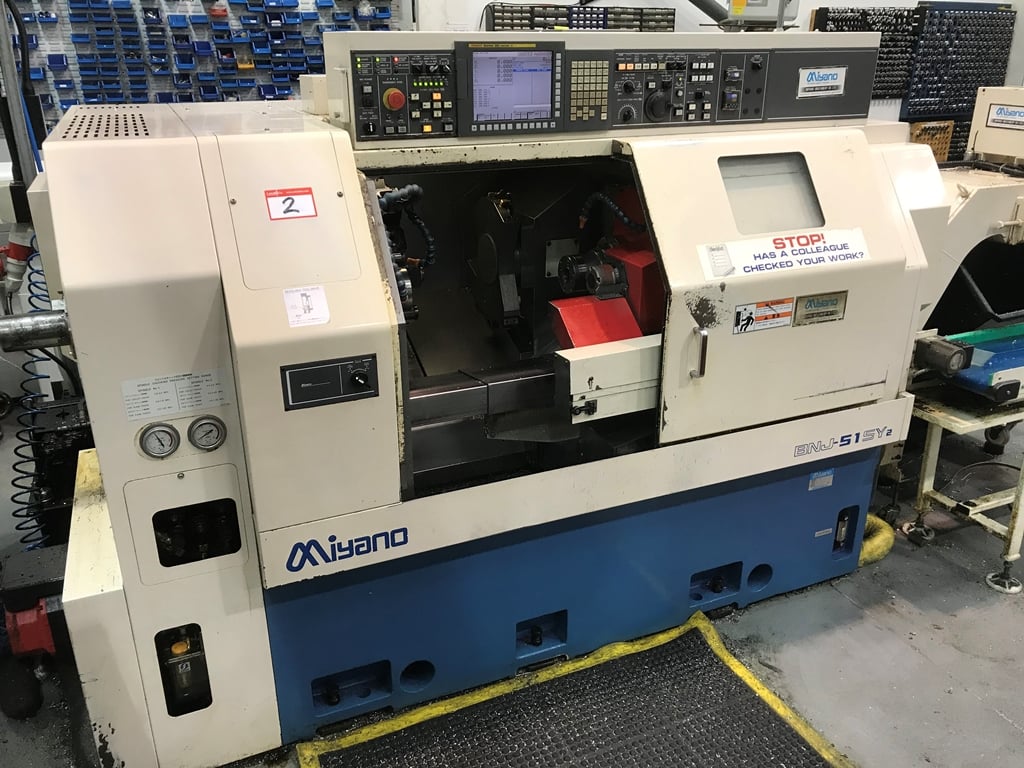

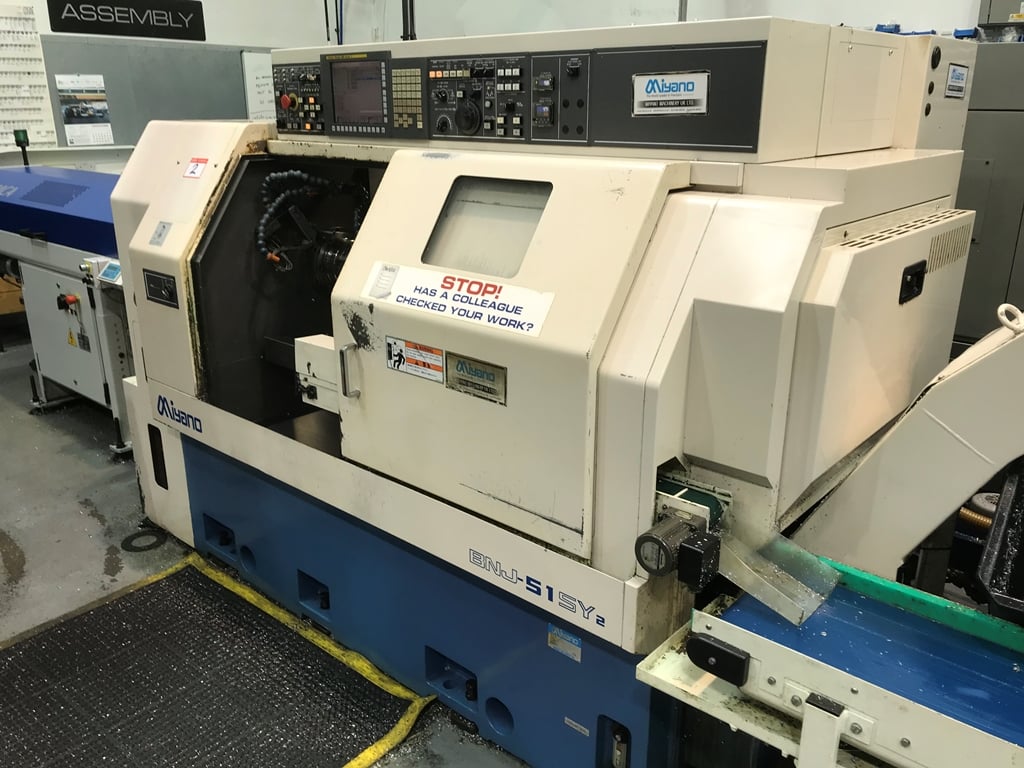

Miyano BNJ-51SY2 7-Axis Twin Spindle CNC Turning Centre with Fanuc 32i-A Control, Twin Spindle, Twin Turret and Y axis, 51mm Bar Capacity on Left Spindle, 42mm Capacity on Right Spindle, Max Turning L ...

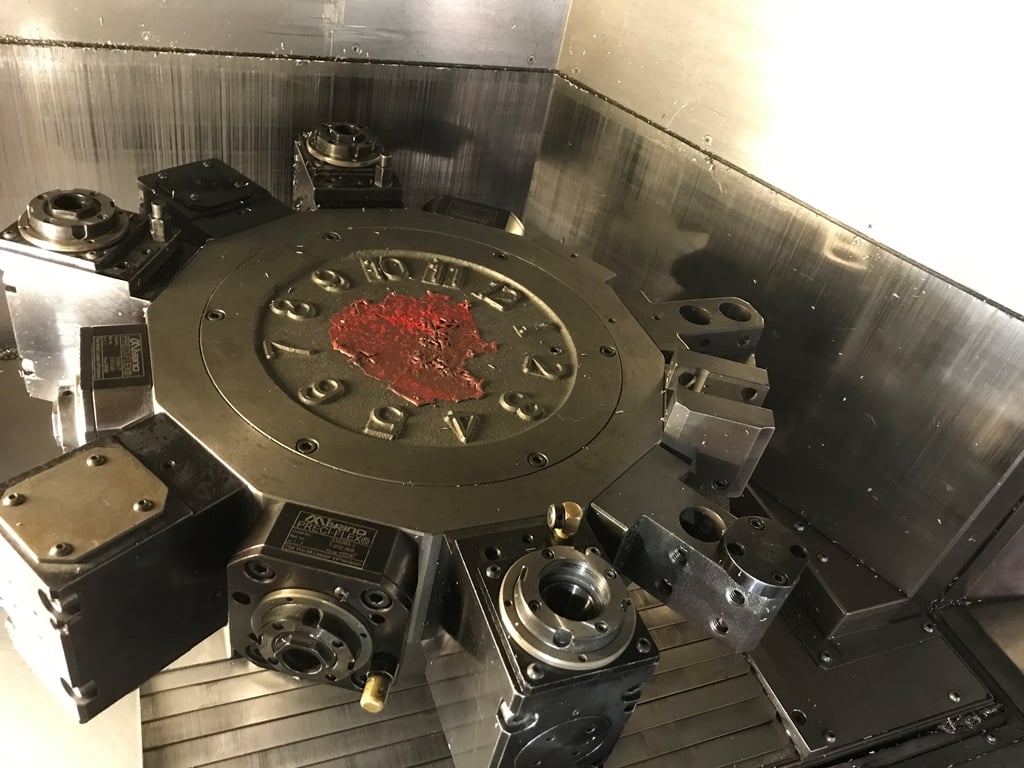

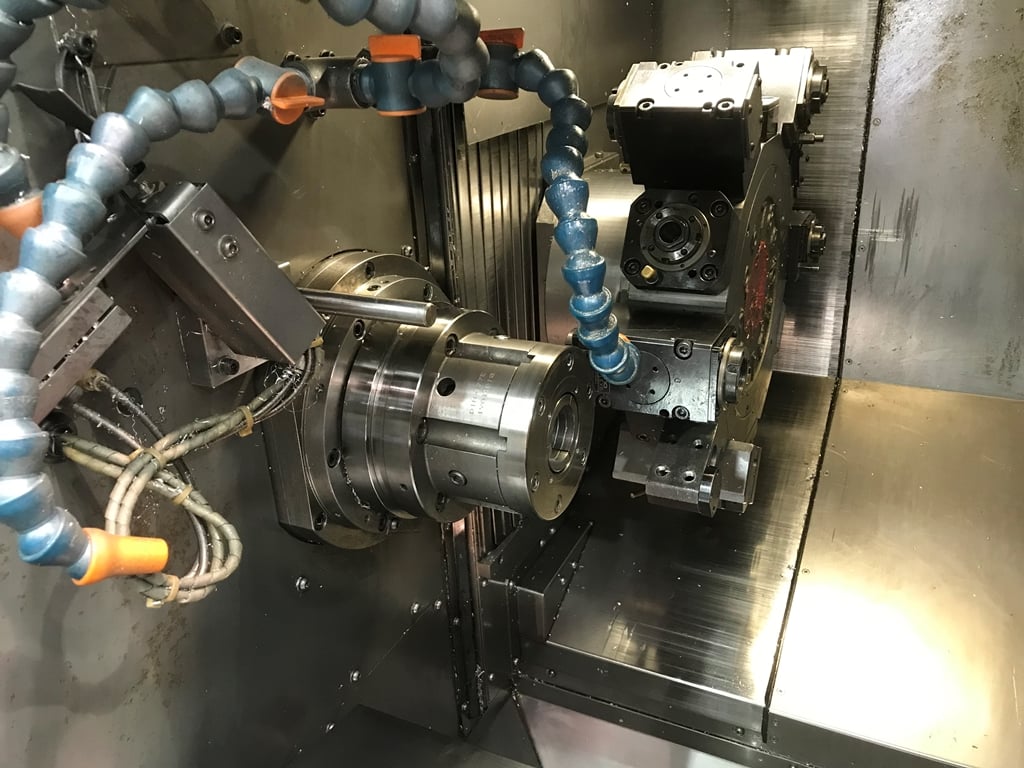

Miyano BNJ-51SY2 7-Axis Twin Spindle CNC Turning Centre with Fanuc 32i-A Control, Twin Spindle, Twin Turret and Y axis, 51mm Bar Capacity on Left Spindle, 42mm Capacity on Right Spindle, Max Turning Length 100mm, Main Spindle max 5000rpm, Motor 7.5/11kW, Right Spindle max 7000rpm, Motor 3.7/5.5kw, Right Spindle Slide Travel X2 axis 70mm, Z2 axis 525mm, 12 Station Main Turret – Slide Travel X1 165mm, Z1 246mm, Y1 ±40mm, (Main Turret has all 12 Stations/Tools Driven) Tool Speed Range to 4000rpm, 6 Station Segmental Back Working Turret, Parts Catcher, Parts Conveyor, Swarf Conveyor, Iemca Kid 80 Type 16 Short 1m Automatic Bar Feeder. S/No. BN96020Y (02/2008)
Please Note: This lot is located in Buckinghamshire. This Item is part of an online auction held on Thursday 3rd September 2020 at 3pm (UK Time). Please visit our website www.cottandco.com
