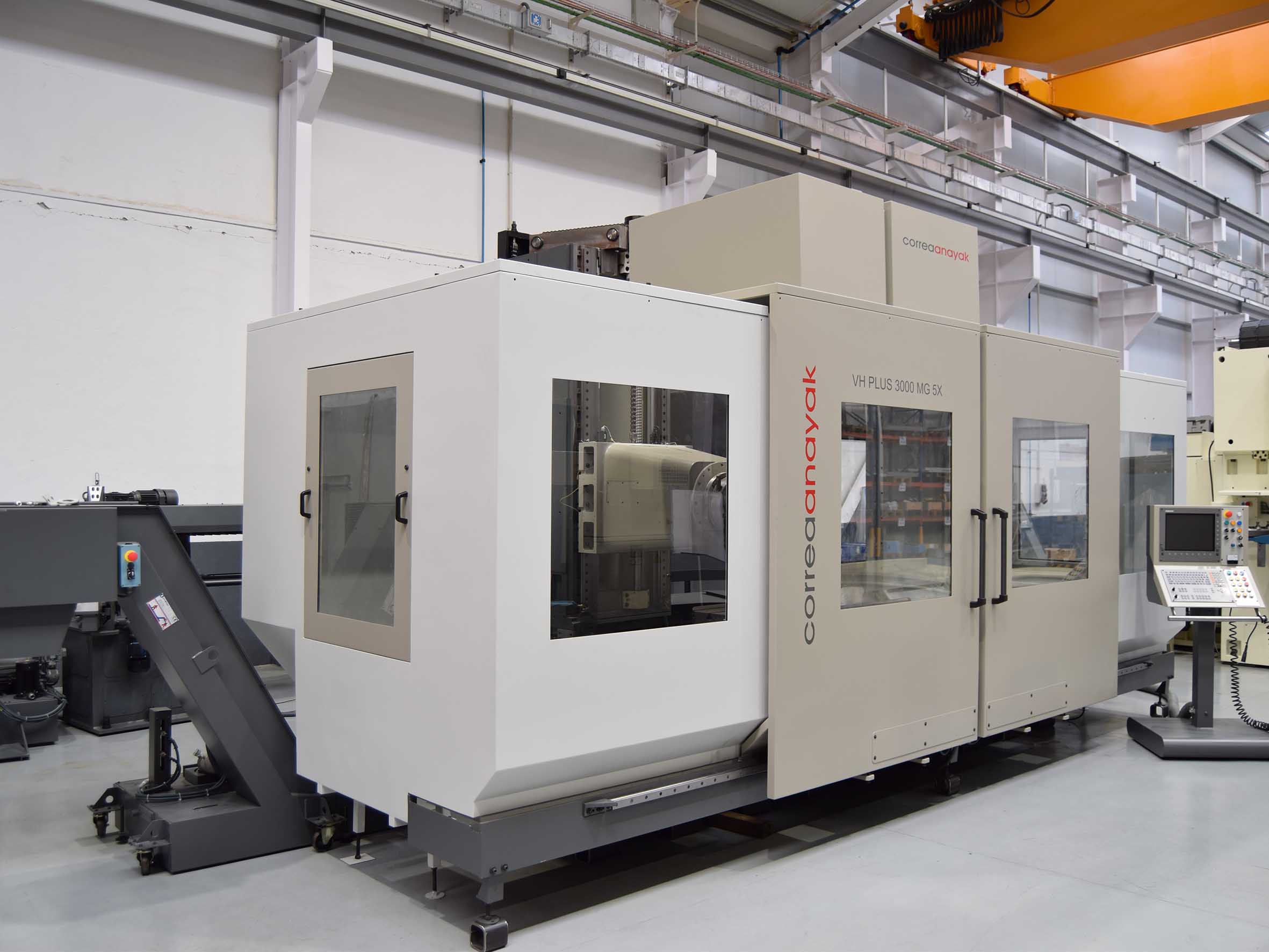

ANAYAK VH PLUS 3000 MG-8 5AXIS 2010
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28531
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 2010
Descrizione
Manufacturer ANAYAK
Model VH PLUS 3000 MG8
New in Year 2010
CNC HEIDENHAIN iTNC 530
Sempuco Rotary Table Surface 1.250 x 1.250 mm
Turning Table ( B Axis) 0,001º (Continuo)
Max Weight Allowed on ...
Manufacturer ANAYAK
Model VH PLUS 3000 MG8
New in Year 2010
CNC HEIDENHAIN iTNC 530
Sempuco Rotary Table Surface 1.250 x 1.250 mm
Turning Table ( B Axis) 0,001º (Continuo)
Max Weight Allowed on table 7.000 kg.
C Axis Turning Index -120 / +120
C Axis Positoning 0,001º (Continuo)
Longitudinal Traverse (X Axis ) 3.000 mm
Transversal Traverse (Y Axis) 1.270 mm
Vertical Traverse (Z Axis) 1.500 mm
Rapid Feeds (X,Y,Z) 20.000 mm/min
Max Working Feed 10.000 mm/min
Taper HSK A 63
Turning Speeds 60 – 18.000 r.p.m.
Main Motor Power 34 kW
ATC INCLUDED
Positions in ATC 40
Hydraulic Chip Conveyor INCLUDED
Internal Coolant 20 Bar INCLUDED
Integral protecting guards INCLUDED
Machine Weight 25.000 kg
Portable Handwheel INCLUDED
More information https://www.maquinariacolas.com/en/machinery/anayak-vh-plus-3000-mg-8-5x/
