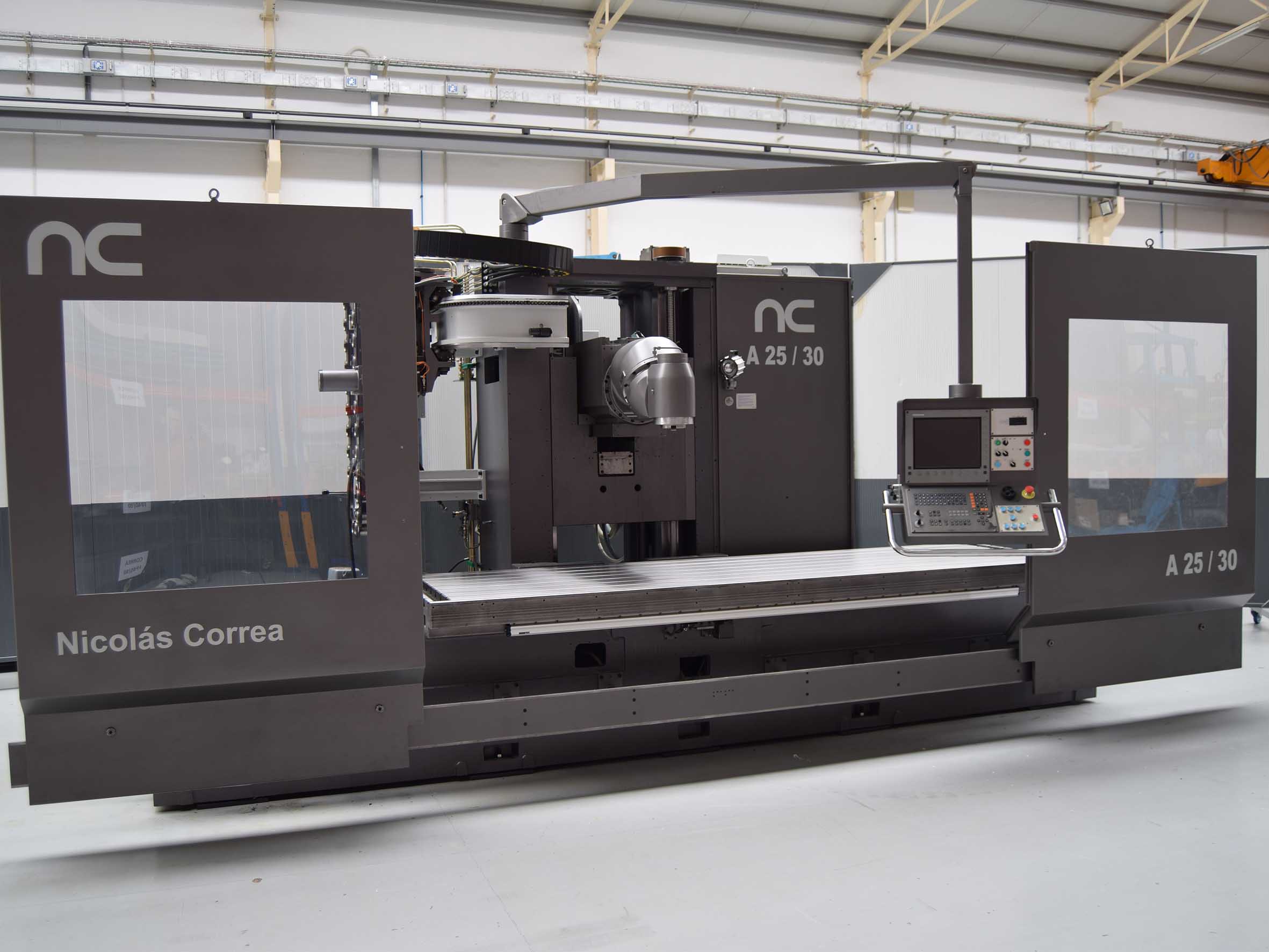

NICOLAS CORREA A 25/30 ATC UDG
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND28537
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Manufacturing Year 1998
Reconstruction Year 2020
CNC HEIDENHAIN TNC 426 PB
Table Surface 3.500 X 1.000 mm.
Longitudinal Traverse (X Axis) 3.000 mm.
Cross Traverse (Y Axis) 1.200 mm.
Vertical Tra ...
Manufacturing Year 1998
Reconstruction Year 2020
CNC HEIDENHAIN TNC 426 PB
Table Surface 3.500 X 1.000 mm.
Longitudinal Traverse (X Axis) 3.000 mm.
Cross Traverse (Y Axis) 1.200 mm.
Vertical Traverse (Z Axis) 1.000 mm.
Rapid Traverse Feed 12.000 mm/min
Taper ISO 50
Turning Speeds 20 – 3000 rpm
Head Power 30 Kw
Automatic Head 2.5º/2.5º
ATC INCLUDED
Positions in ATC 30
Coolant Through Tool 15 Bar INCLUDED
Coolant Tank INCLUDED
Portable Handwheel INCLUDED
Carrying Load Table 7.000 kg.
Machine Weight 19.000 kg.
Hydraulic Tool Clamping INCLUDED
More information https://www.maquinariacolas.com/en/machinery/used-correa-a25-30-atc-udg/
