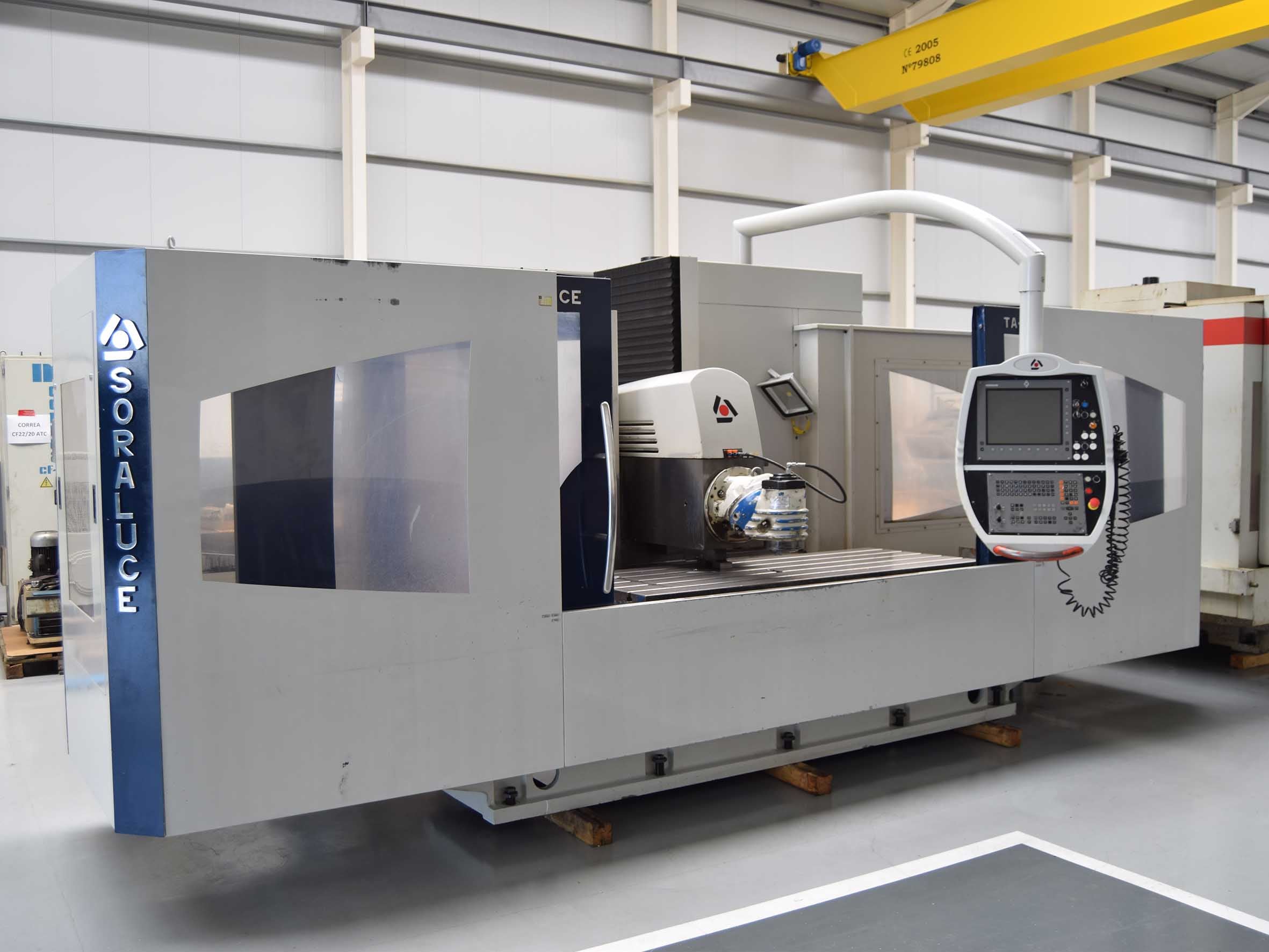

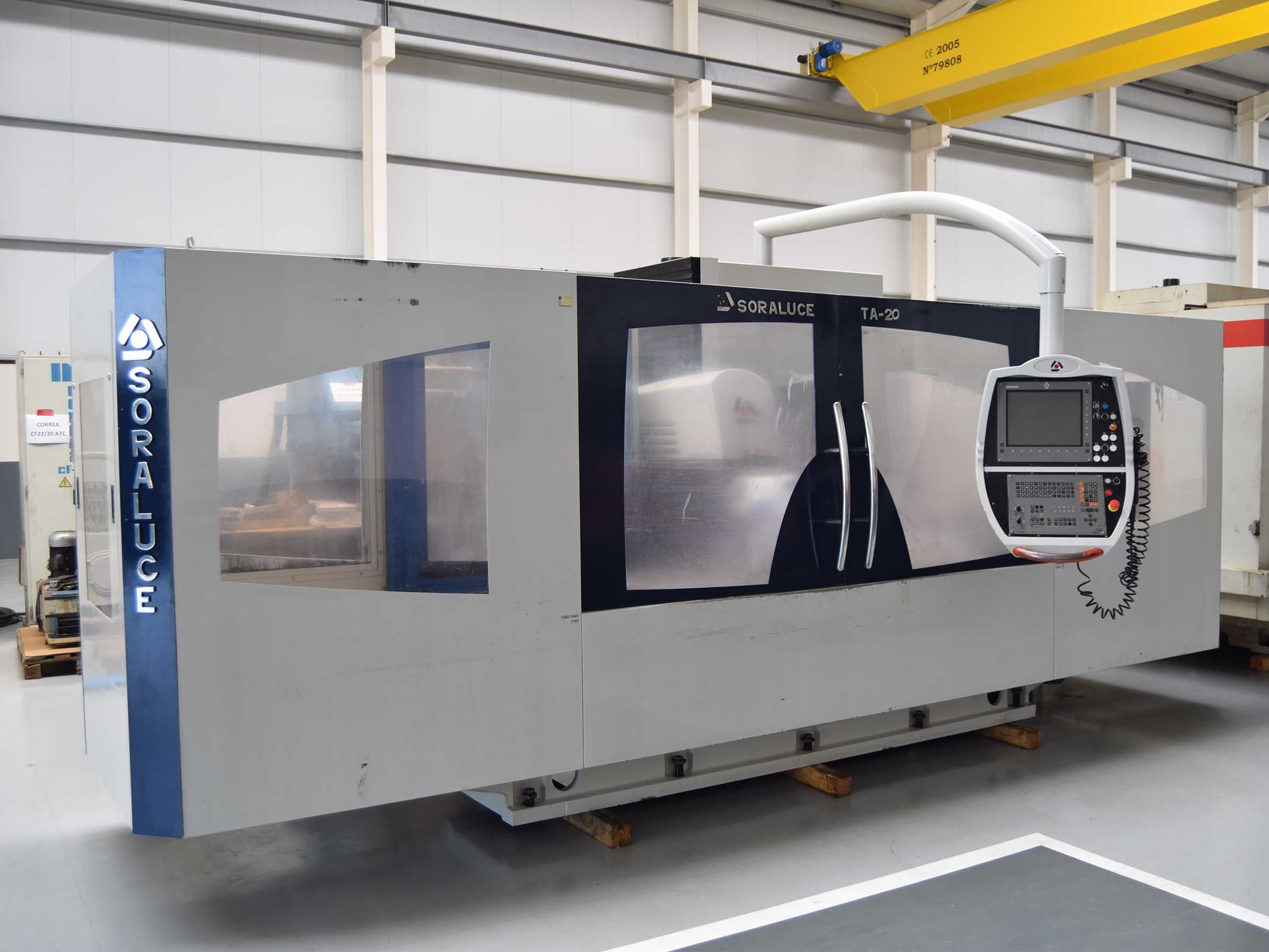

SORALUCE SORALUCE TA20 Bed Type Milling Machine 2003
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND29200
.JPG)
.JPG)
Dati tecnici
- Condizione: usato
- Anno: 2003
Descrizione
Manufacturer :SORALUCE
Model : TA-20
Year :2003
CNC : HEIDENHAIN TNC-530
Table Surface :2000 x 800 mm.
Number of T Slots :4
T Slots Dimensions :22 mm.
Longitudinal Traverse (X Axis) :2000 mm.
...
Manufacturer :SORALUCE
Model : TA-20
Year :2003
CNC : HEIDENHAIN TNC-530
Table Surface :2000 x 800 mm.
Number of T Slots :4
T Slots Dimensions :22 mm.
Longitudinal Traverse (X Axis) :2000 mm.
Transversal Traverse (Y Axis) :800 mm.
Vertical Traverse (Z Axis) :800 mm.
Working Feeds (X/Y/Z) :10.000 mm/min
Rapid Traverse :20.000 mm/min
Head Type :Universal
Taper :ISO 50
Turning Speeds :20-3000 rpm
Head Power :22 Kw
Hydraulic Tool Clamping System :INCLUDED
EC Guarding : INCLUDED
Carrying Load Table :4.000 kg.
Machine Weight :10.000 kg.
Portable Handwheel :Heidenhain HR-410
3D-Rot :INCLUDED
Machine Dimension :6.605x3.315x2.730 mm
