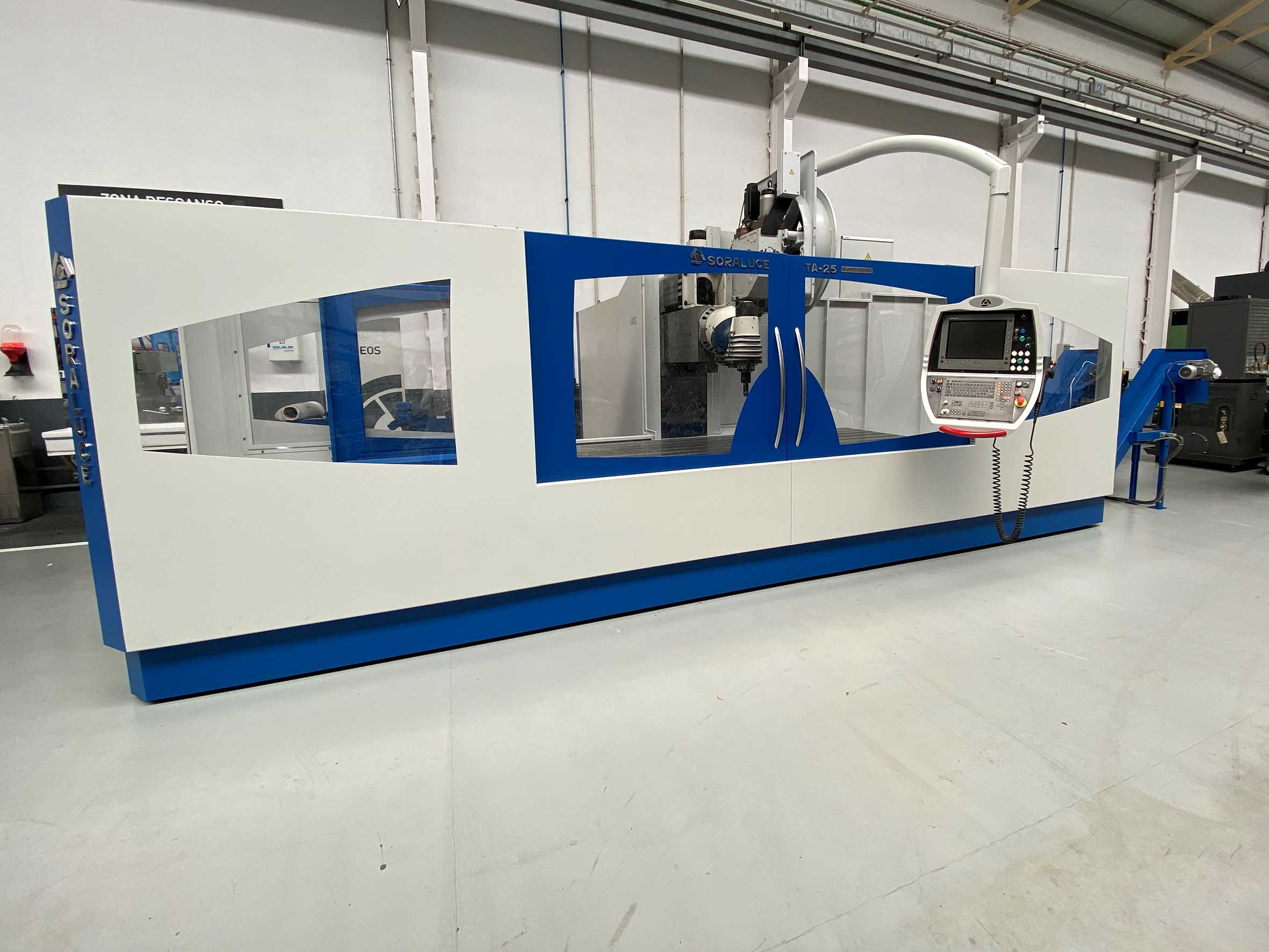

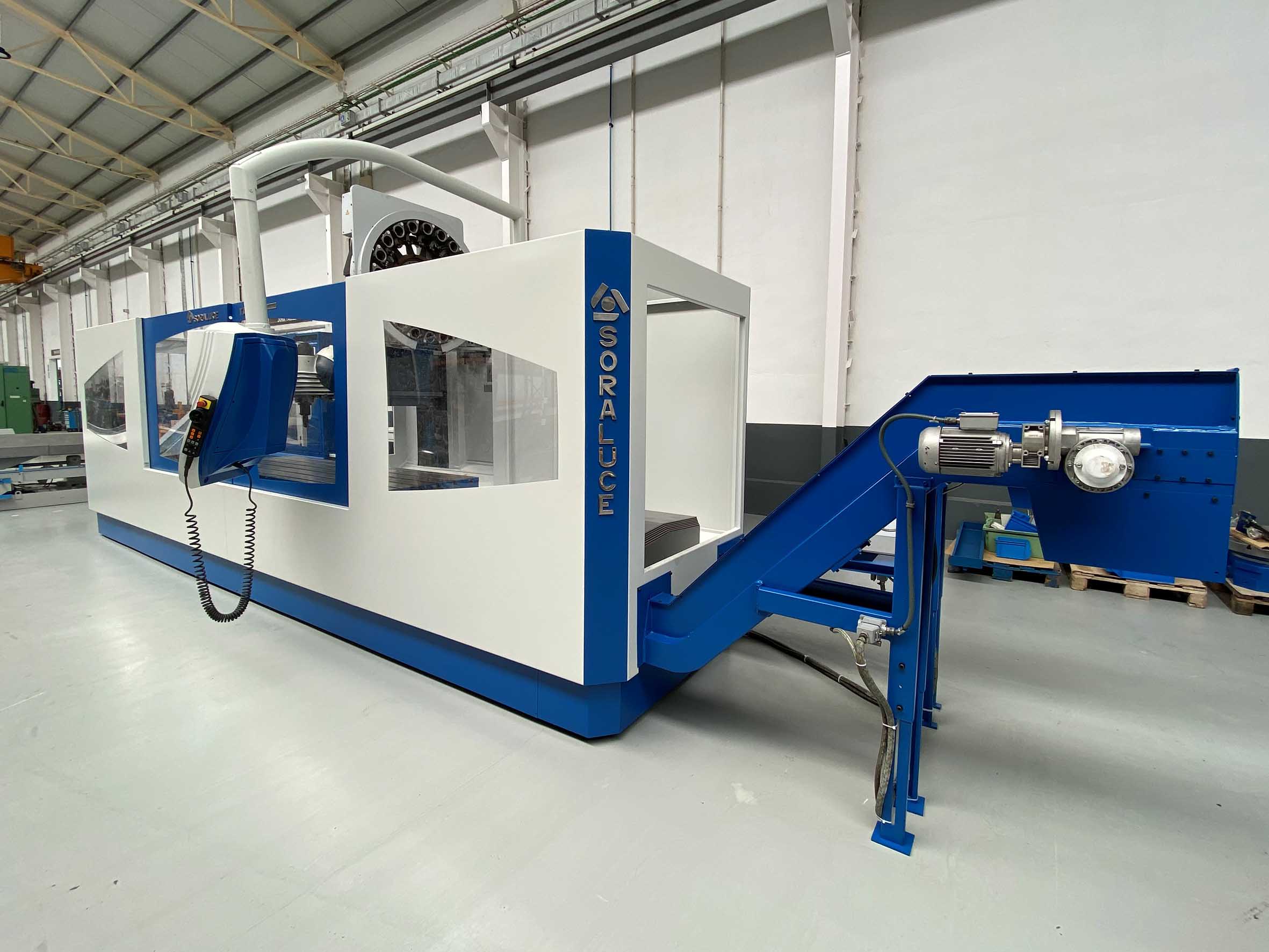

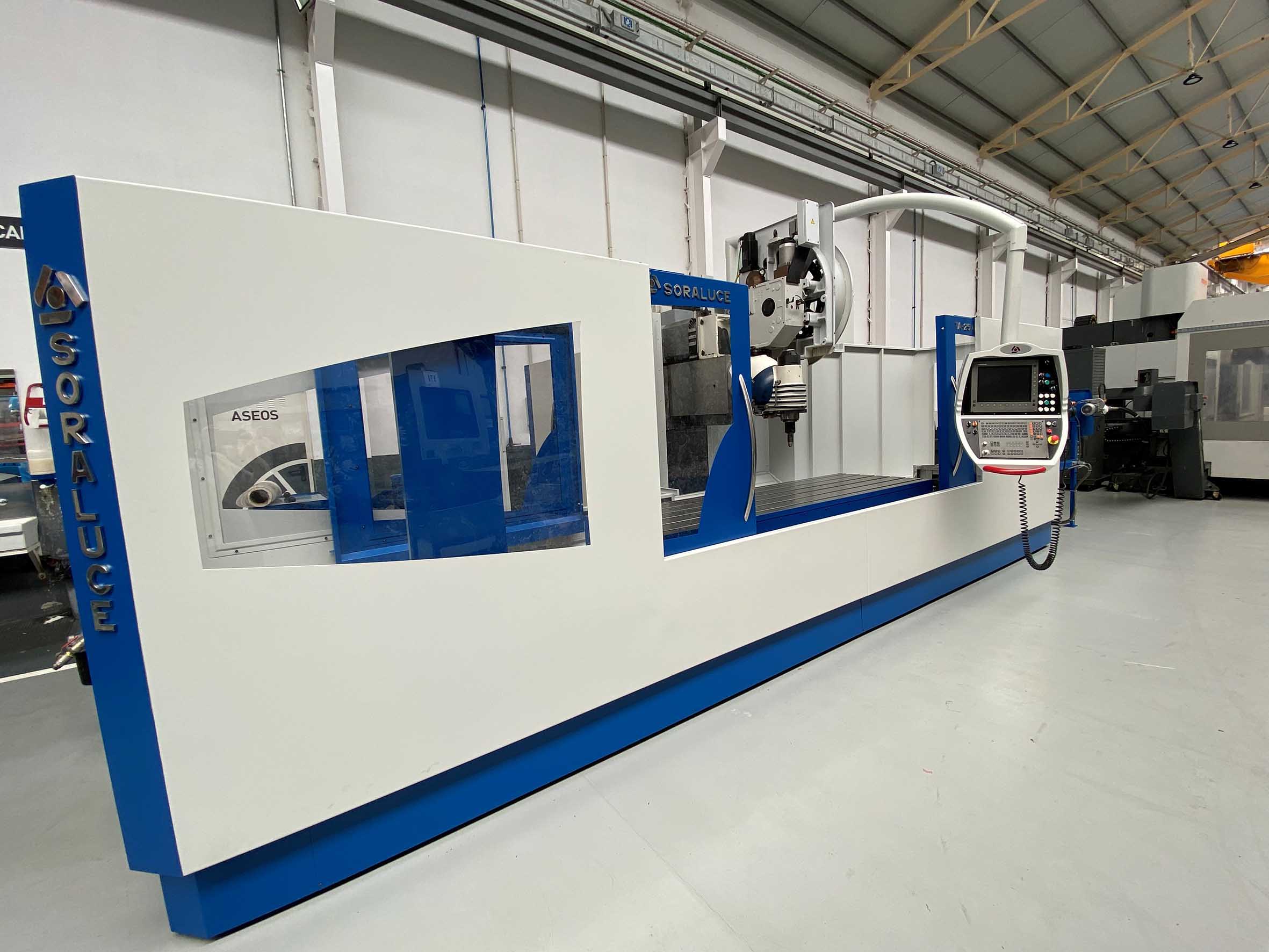

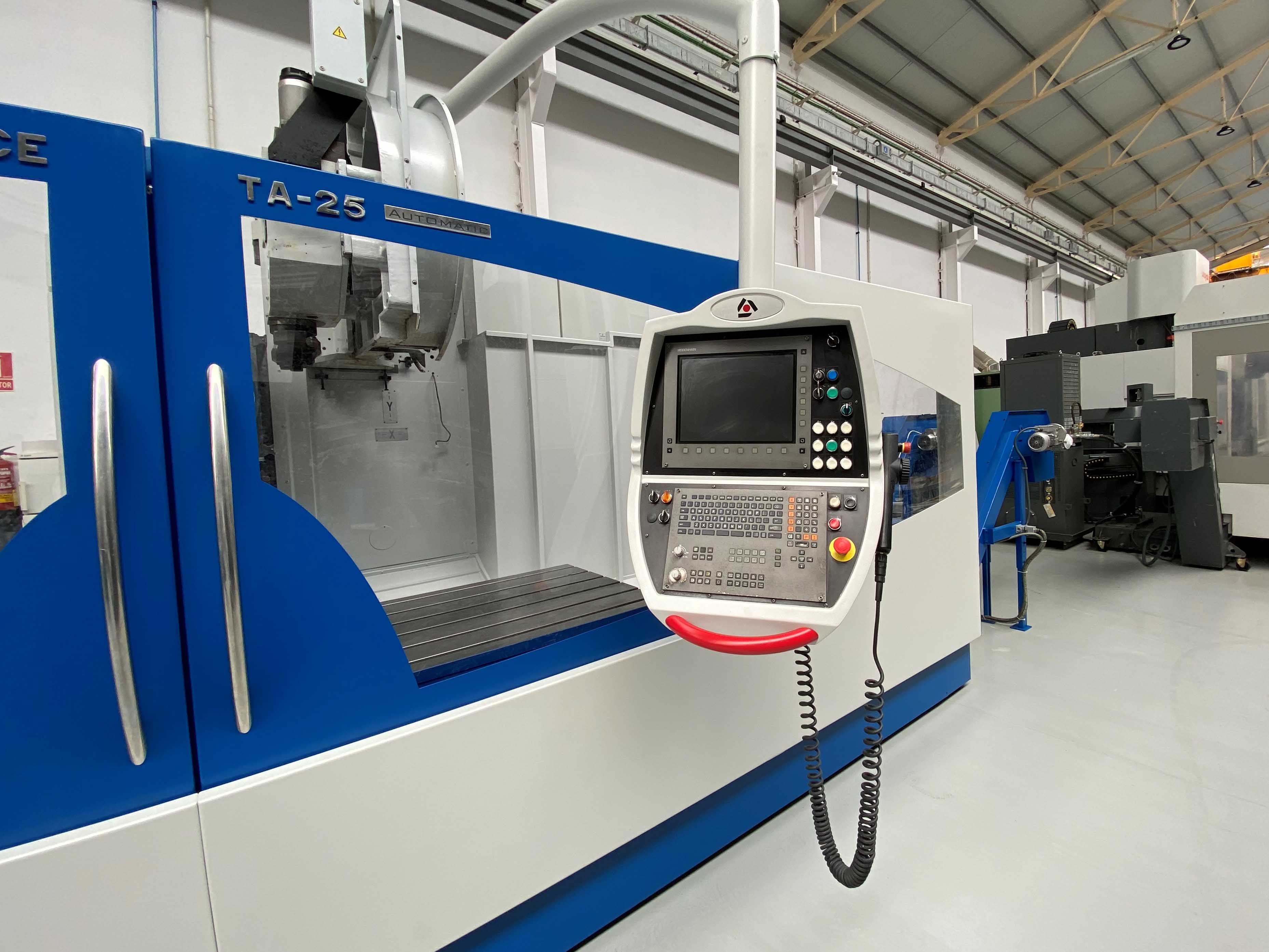

SORALUCE Soraluce TA-25 Automatic 2006
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND29673
.jpg)
.jpg)
.jpg)
.jpg)
Dati tecnici
- Condizione: usato
- Anno: 2006
Descrizione
Manufacturer : SORALUCE
Model : TA-25 AUTOMATIC
Year :2006
CNC : HEIDENHAIN TNC-530 HSCI
Table Surface :2.700 x 850 mm.
Longitudinal Travel (X Axis) :2.500 mm.
Transversal Travel (Y Axis) :1.00 ...
Manufacturer : SORALUCE
Model : TA-25 AUTOMATIC
Year :2006
CNC : HEIDENHAIN TNC-530 HSCI
Table Surface :2.700 x 850 mm.
Longitudinal Travel (X Axis) :2.500 mm.
Transversal Travel (Y Axis) :1.000 mm.
Vertical Travel (Z Axis) :1.000 mm.
Working Feeds (X/Y/Z) :10.000 mm/min
Rapid Traverse :25.000 mm/min
Head Type : Automático 2. 5º/2. 5º
Taper :ISO 50 DIN 69871 AD
Turning Speeds :3.000 rpm
Head Power :22 kW
Automatic Tool Charger :INCLUDED
ATC Positions :24
Integral protecting guards :INCLUDED
Double chip conveyor :INCLUDED
Internal Coolant 20 Bar :INCLUDED
Rotary table Spirsin Mod 81 660 /D800 HV :INCLUDED
Ø rotary table Spirsin :800 mm.
Rotary Table Spirsin :Horizontal / Vertical
Deposit 500l with magnetic and paper filter :INCLUDED
Portable Handwheel : Heidenhain HR-410
Total Power :46 kVA
Machine Weight :16.000 kg
Machine Dimension :6.760 x 3.990 x 3.123 mm.
More information https://www.maquinariacolas.com/en/machinery/soraluce-ta-25-automatic/
