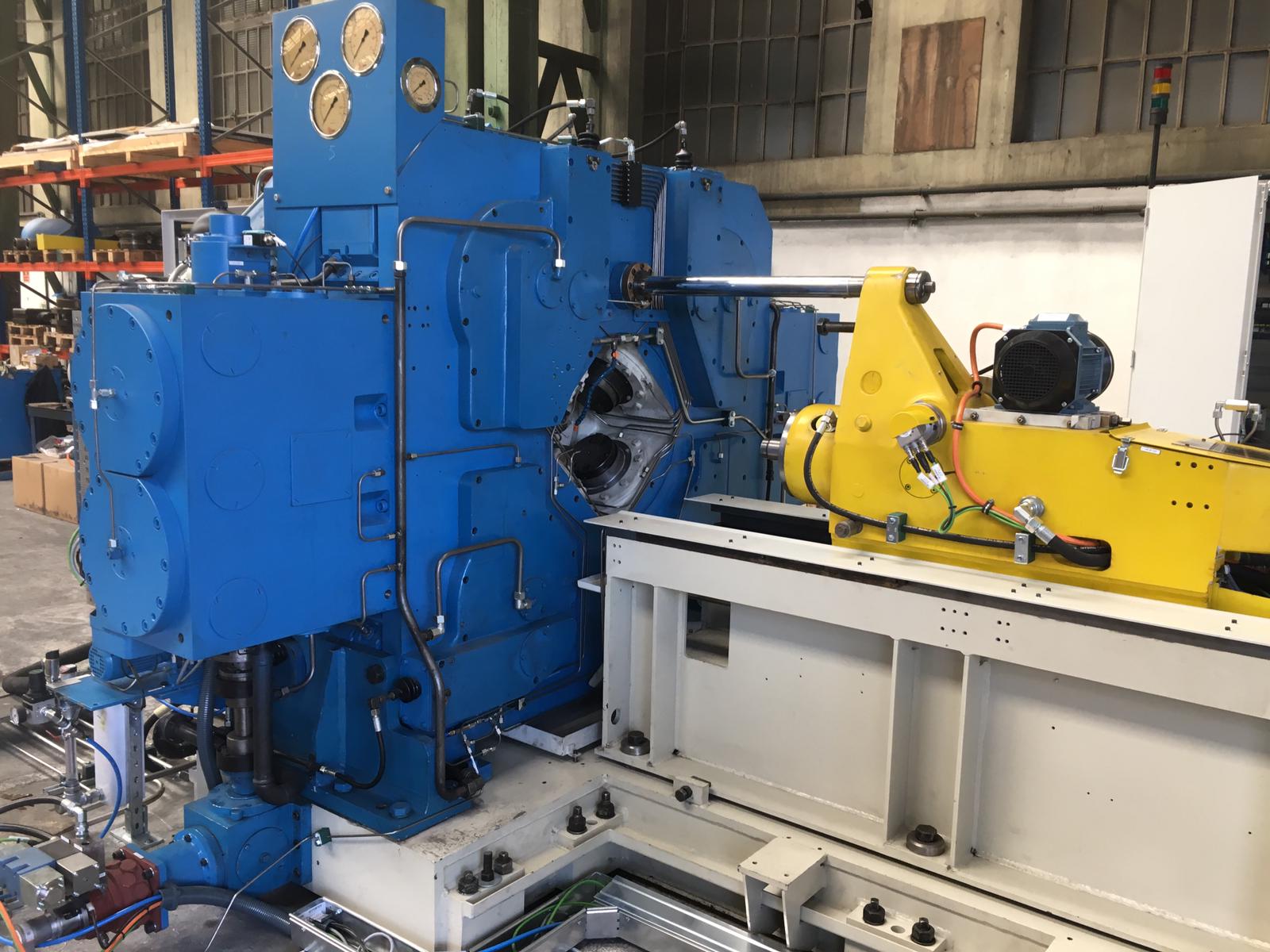

GFM SHK-10
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND32260
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Cold Radial Forging Machine GFM SX-10
YOM: 1971/2019
Forging Box
Number of forging hammers 4
Max. forging force per hammer 1250 kN
Number of strokes 1200 1/min
Hammer lenght 135 mm
Diame ...
Cold Radial Forging Machine GFM SX-10
YOM: 1971/2019
Forging Box
Number of forging hammers 4
Max. forging force per hammer 1250 kN
Number of strokes 1200 1/min
Hammer lenght 135 mm
Diameter setting range 60 mm
Forge eccentric 3,5 mm
Chuck head
Clamping force max. 50 kN
Advance speed max. 20000 mm/min
Stroke 1290 mm
Workpiece rotation 35-71 1/min
Workpiece lenght max. 900 mm
Counter holder
Clamping force max. 50 kN
Advance speed max. 20000 mm/min
Stroke 1290 mm
Mandrel
Clamping force max. 20 kN
Advance speed max. 18000 mm/min
Stroke 800 mm
Dimensions
Lenght approx. 9100 mm
Width (with electrical cabinets and control panel) approx. 4500 mm
Height forging machine approx. 2150 mm
Forging height above floor 1250 mm
Weight (forging machine) approx. 29000 kg
The machine is completely revamped with a new Electrics, Hydraulics, new Control and with functionality test before delivery.
