GFM SX-13
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND32261
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione

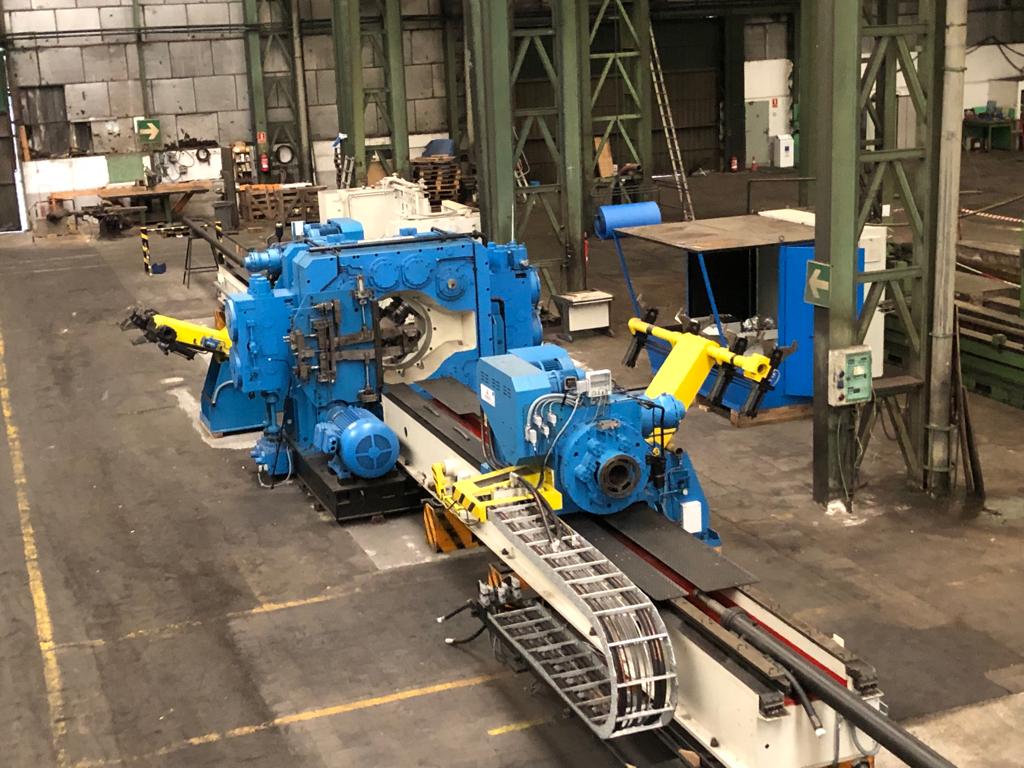

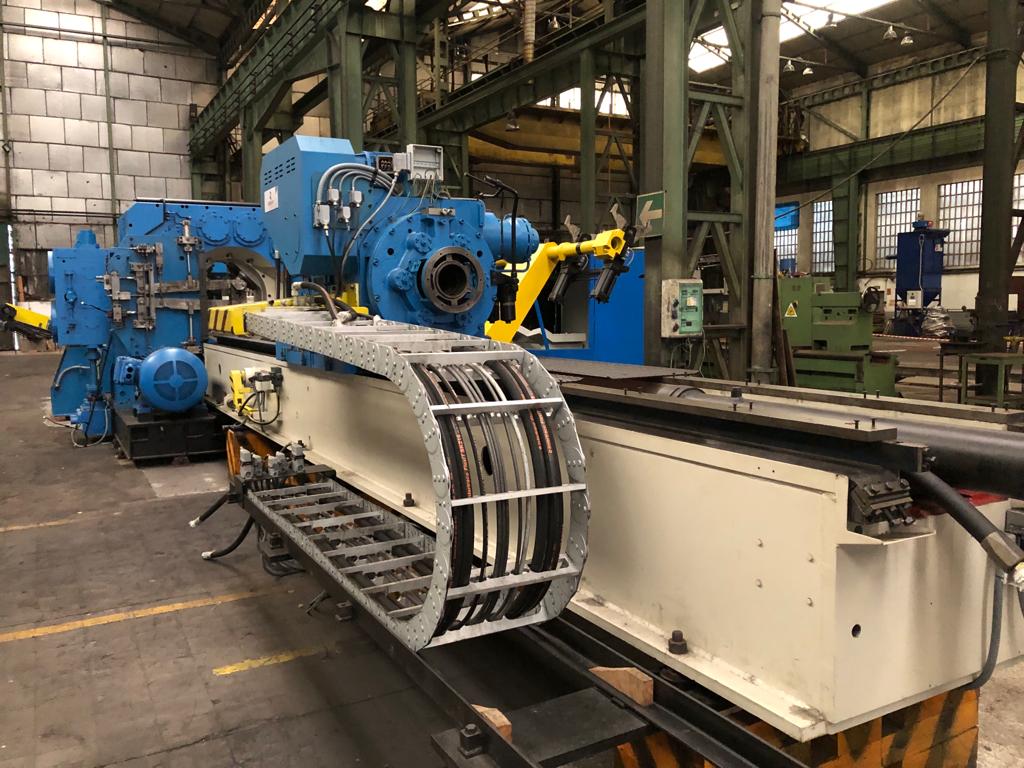

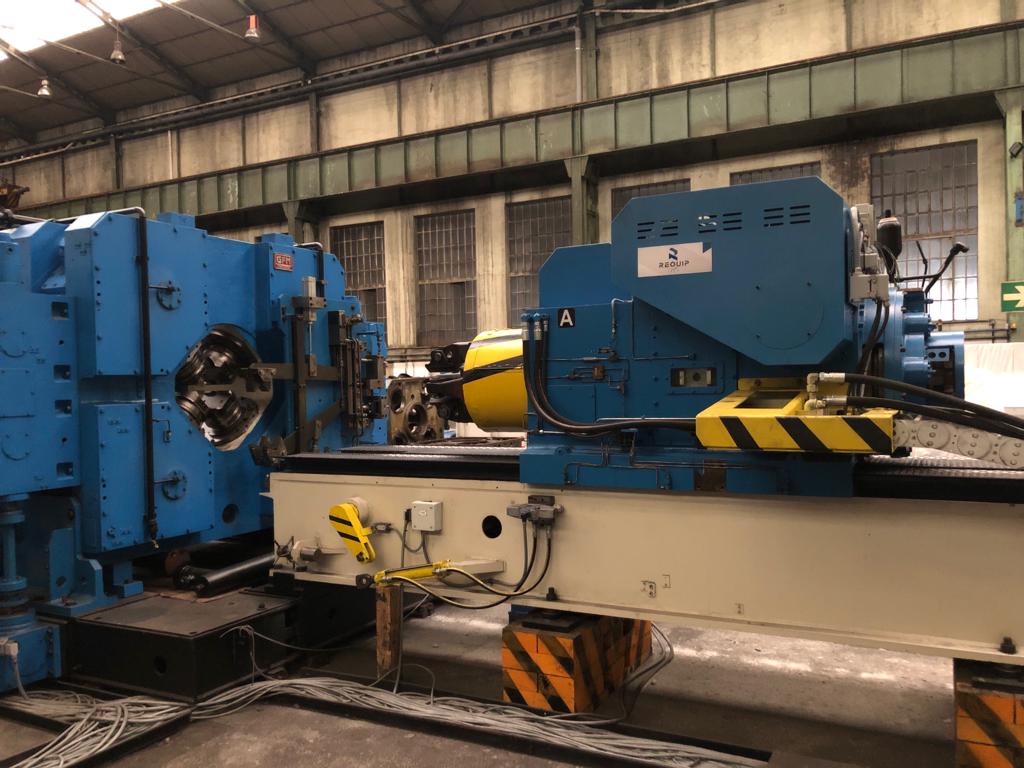

CNC Hot Radial Forging GFM SX-13
New in 1974 / 2022

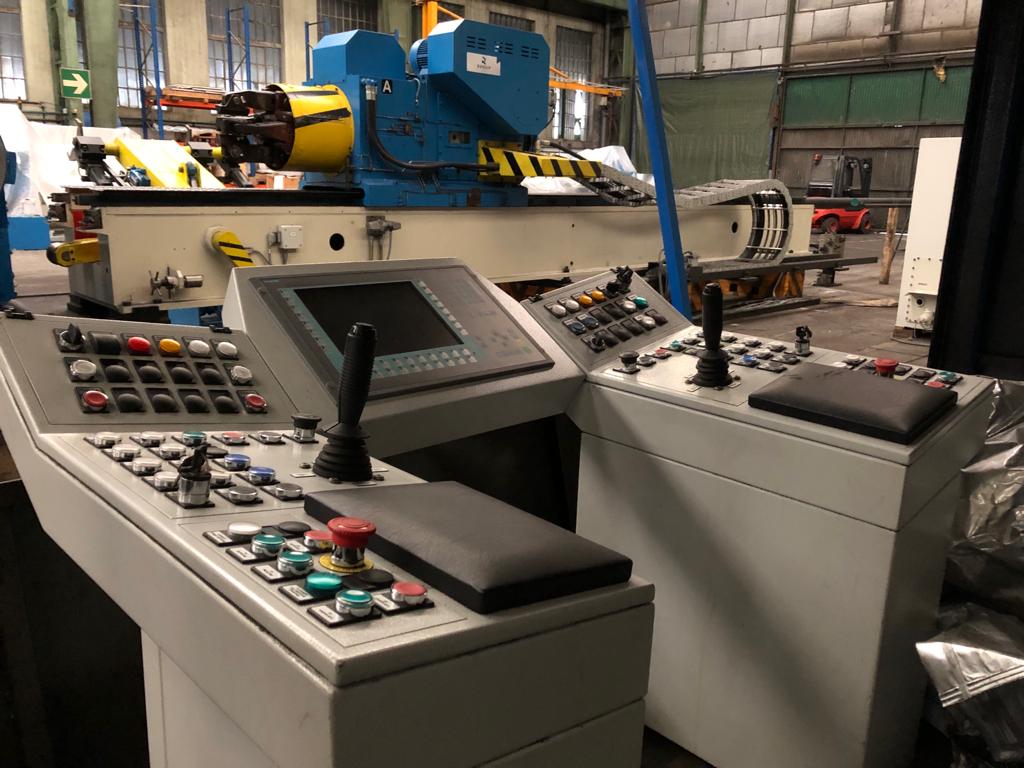

New CNC Control SIEMENS SIMATIC
Machine number: 1276
No. of Hammers: ...
CNC Hot Radial Forging GFM SX-13
New in 1974 / 2022
New CNC Control SIEMENS SIMATIC
Machine number: 1276
No. of Hammers: 4
Forging force each hummer: 160 Ton
Hammer stroke / min: 700/min
Hammer lenght: 240 mm
Diameter setting range: 80 mm
Maximum forging diameter:
Structural steel, round-cross section: Ø 130 mm
square cross section: Ø 115 mm
Smallest dimensions forged: Ø 25 mm
Manipulator A max. displacement: 6820 mm
Manipulator B max. displacement: 7150 mm
Maximum workpiece length: 6000 mm
Rapid speed manipulator: 400mm/sec
Total connected power: 300 kW 380 V, 50 Hz
Machine dimensions:
Forging height over floor: 615 mm
Total height pf the machinr over floor: 1665 mm
Total machine lenght: 32670 mm
Total foundation lenght: 33400 mm
Tot. machine width (without auxliary equipments): approx 3885 mm
Total foundation width: 16000 mm
Total weight of the machine: 84.000 Kg
