MATSUURA MX-520 2019
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND39337
Dati tecnici
- Condizione: usato
- Anno: 2019
Descrizione

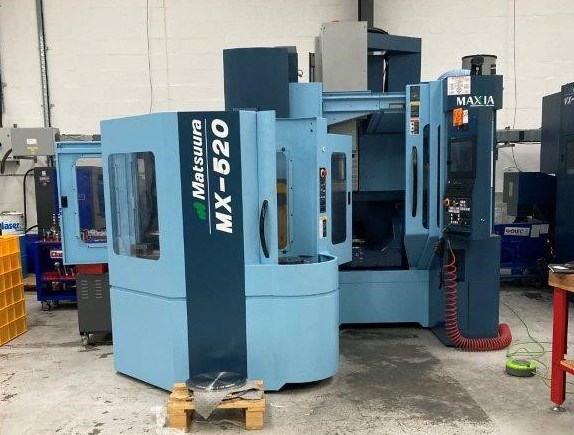

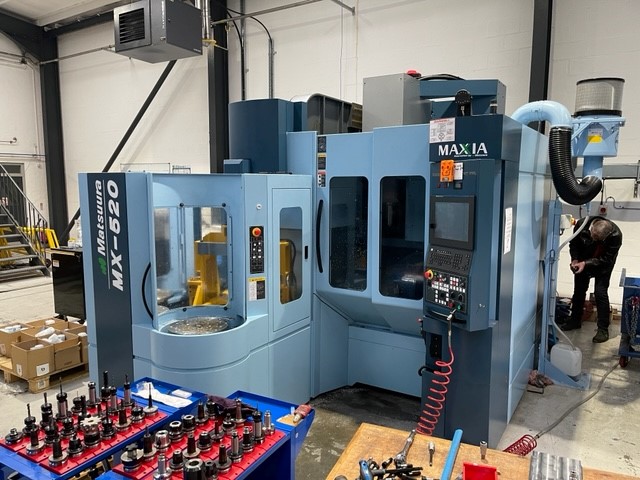

Matsuura MX-520 4 Pallet 5 Axis Vertical Machining Centre with G-Tech 31iB Control, 12,000rpm, BT40 Big Plus Spindle, Axis Movements: X = 630mm, Y = 560mm, Z = 510mm, 4th & 5th Axis Movements: A = +10 ...

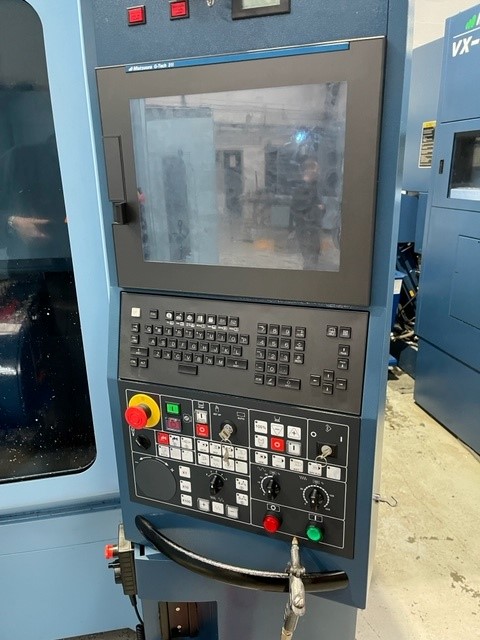

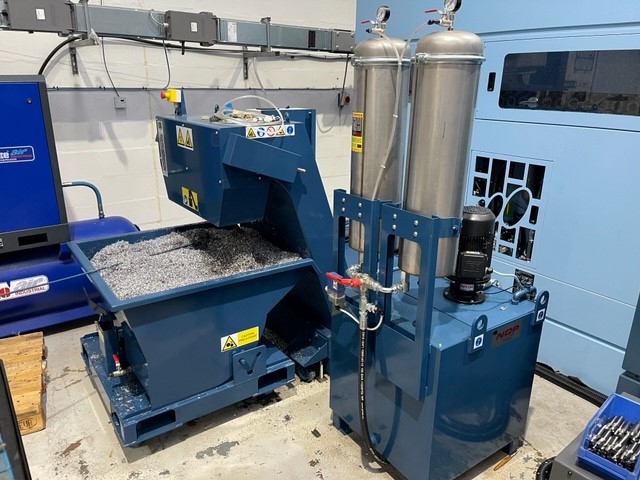

Matsuura MX-520 4 Pallet 5 Axis Vertical Machining Centre with G-Tech 31iB Control, 12,000rpm, BT40 Big Plus Spindle, Axis Movements: X = 630mm, Y = 560mm, Z = 510mm, 4th & 5th Axis Movements: A = +10deg to -125deg, C = 360deg, Spindle Overload Protection, Synchronised Tapping Function, Scale Feedback on A and C Axes, Work Light, Auto Grease Supply Unit, Chip Flush System, Large 15" Operation i Panel, LCD Colour Touch Screen, Ethernet Interface, Helical Interpolation, Custom Macro, Skip Function, 90 Tool ATC Magazine (Chain Type), 4 Pallet System with Load/Unload Area and Internal Spiral Chip Conveyors, 4 x 400mm Diameter x 330mm High Work Piece Size per Pallet, Max Work Piece Weight for Pallet of 175g, Spindle Load Monitoring Function, Renishaw NC4 Tool Breakage Detection System, Renishaw RMP600 Spindle Probe, 20 Bar Through the Spindle Coolant (Duplex Filtration), FX4000 Filtermist Unit Including Floor Stand, FSE Swarf Management System including Drum Filtration, Lift Up Conveyor (Side Exit) and Chip Bin, Air Mover (through the Coolant Nozzles), High Speed Machining and 5 Axis Software Package, Linear Scales X, Y & Z. S/No. 21645 (2019). Country of Origin: Japan
Due to export license restrictions imposed by HMRC of multi-axis CNC Machine Tools from the UK to Turkey, we regrettably advise that we cannot accept bids on such items from buyers in Turkey. We apologise for any inconvenience caused.
Please Note: This lot is located in Birmingham, UK. All/Any tooling is being offered as specifically described.
This machine is part of an online auction sale ending on Wednesday 23rd February 2022 at 3pm (UK Time), please visit our website for full details: www.cottandco.com
