TRUMPF Trumatic 6000 (K06) FMC 2014
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND42689
Dati tecnici
- Condizione: usato
- Anno: 2014
Descrizione

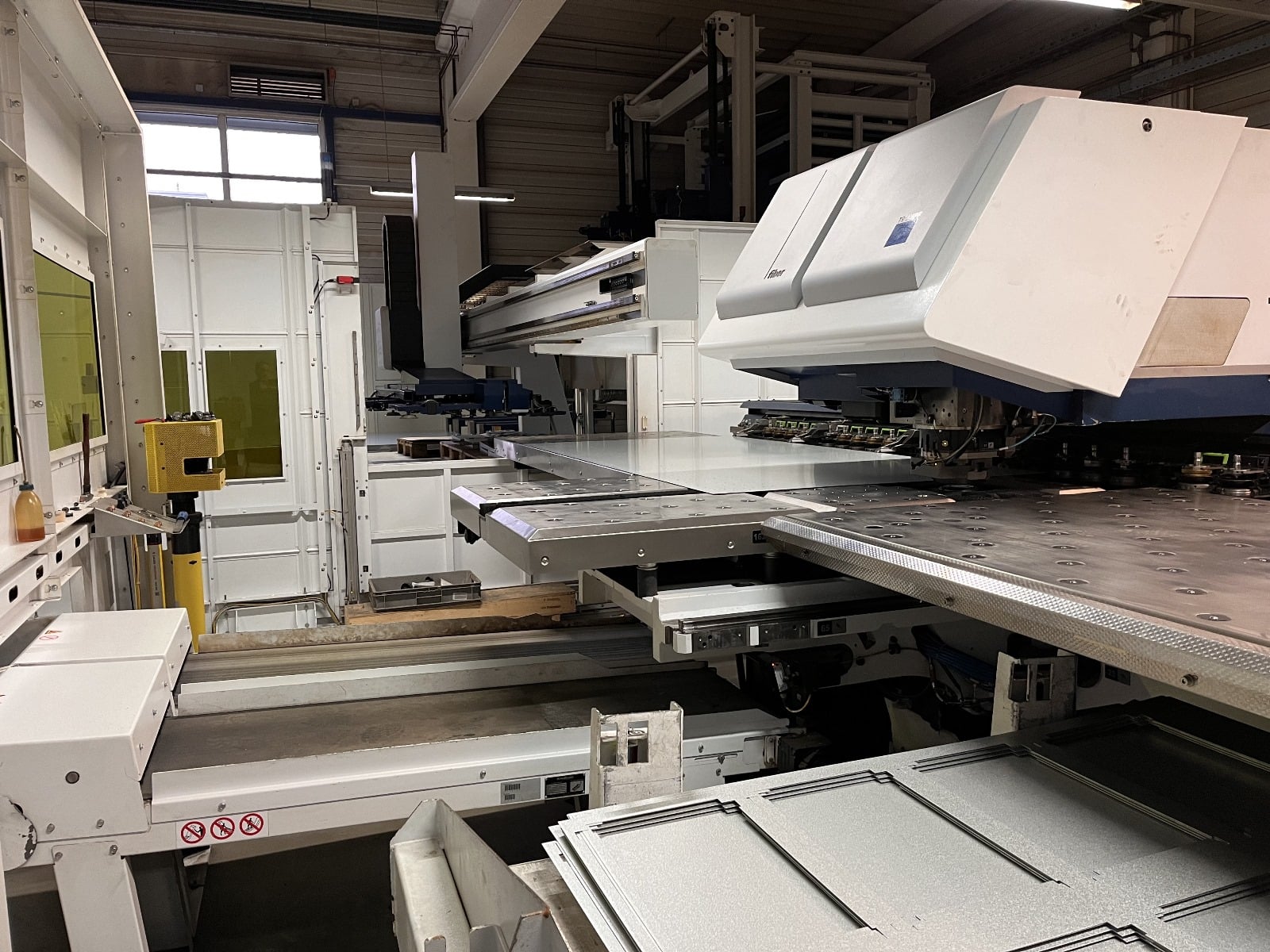

Impianto combinato Punzonatrice(Laser Trumpf Mod. Trumatic 6000 (K06) Fiber
Marca: Trumpf
Anno: 2014
Forza max Punz: 180 kN
Potenza max Laser: 3000 Watt Fibra
Area di lavoro: 2500x1250 mm
Opzion ...
Impianto combinato Punzonatrice(Laser Trumpf Mod. Trumatic 6000 (K06) Fiber
Marca: Trumpf
Anno: 2014
Forza max Punz: 180 kN
Potenza max Laser: 3000 Watt Fibra
Area di lavoro: 2500x1250 mm
Opzioni Incluse:
- MultiTool function
- MultiBend function
- Thread forming function
- Engraving function
- Deburring and rolling technology function
- SoftPunch function
- StripLine
- Lowerable die
- Spray lubrication die including fill level monitoring
-additional clamping claw
-4pcs. Height-adjustable clamping claws
- Vibration-damped installation
-Chip conveyor with tilting container
- Blow-out device for small parts
-Bulging detection
SheetMaster
- Unloading platform
- Suction frame with 36 suction cups
- Peeling vacuum cleaner
- Vacuum sensors for every vacuum cleaner
- Double sheet detector for checking double sheets
- Central lubrication
- TRUMPF control based on Rexroth IndraMotion MTX
- Automatic clamp closing machine
- Loading and unloading parallel to main time
- Peeling system including positioning aid medium format (2500x1250)
- First additional vacuum package standard
- Second additional vacuum package standard
- Discharge monitoring of laser parts
GripMaster
- Parts conveyor belt punching station
-Parts conveyor belt laser station
ToolMaster with 70 stations (only for punching operations)
- ToolMaster setup parallel to main time
