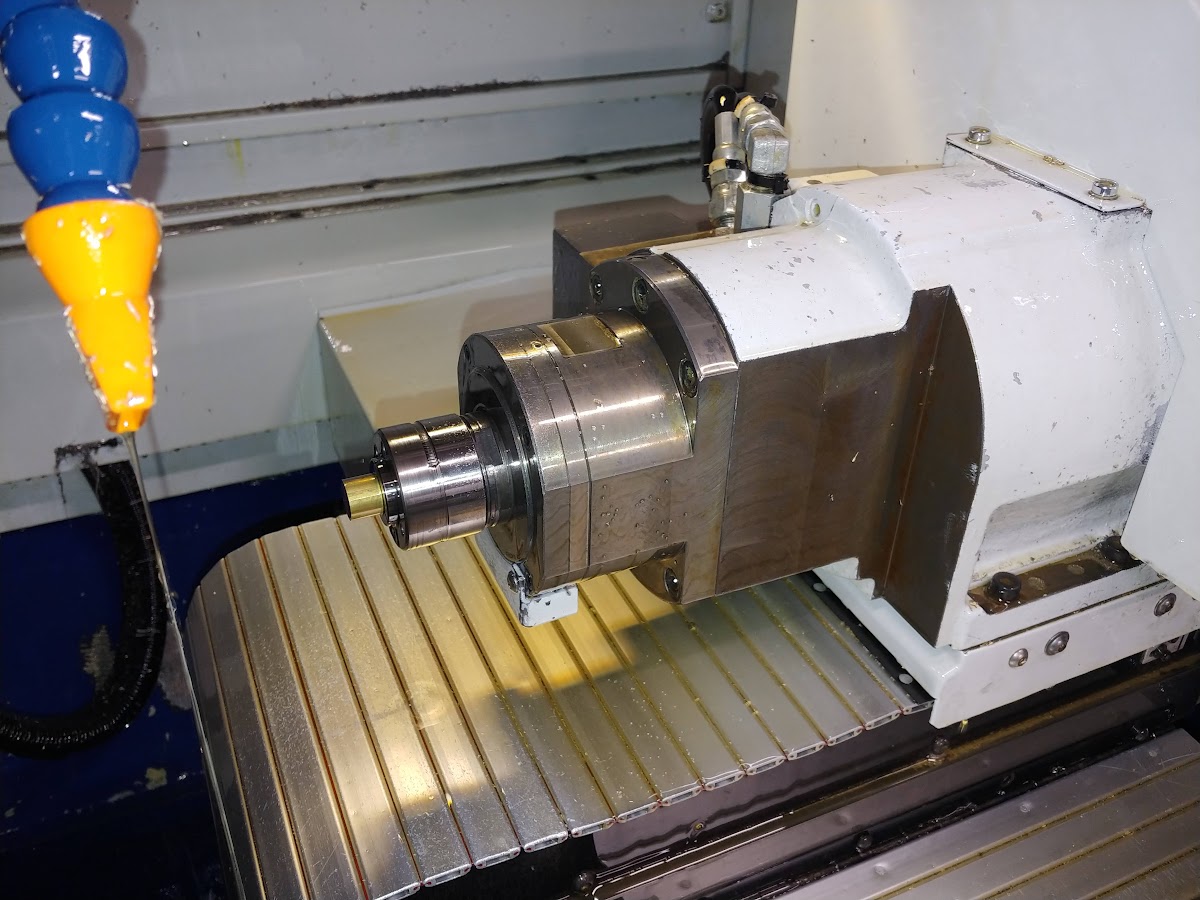

TORNOS Gama 20/6 2012
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND45842
Dati tecnici
- Condizione: usato
- Anno: 2012
Descrizione
Control system Fanuc 32i - B
Turn table diameter 20 mm
Turning lenght 250 mm
Sloping bed NO
Y axis YES
Counterspindle NO
Spindle bore mm
Milling head NO
Driven Tools YES
Number of tool positi ...
Control system Fanuc 32i - B
Turn table diameter 20 mm
Turning lenght 250 mm
Sloping bed NO
Y axis YES
Counterspindle NO
Spindle bore mm
Milling head NO
Driven Tools YES
Number of tool positions (driven) 39/15

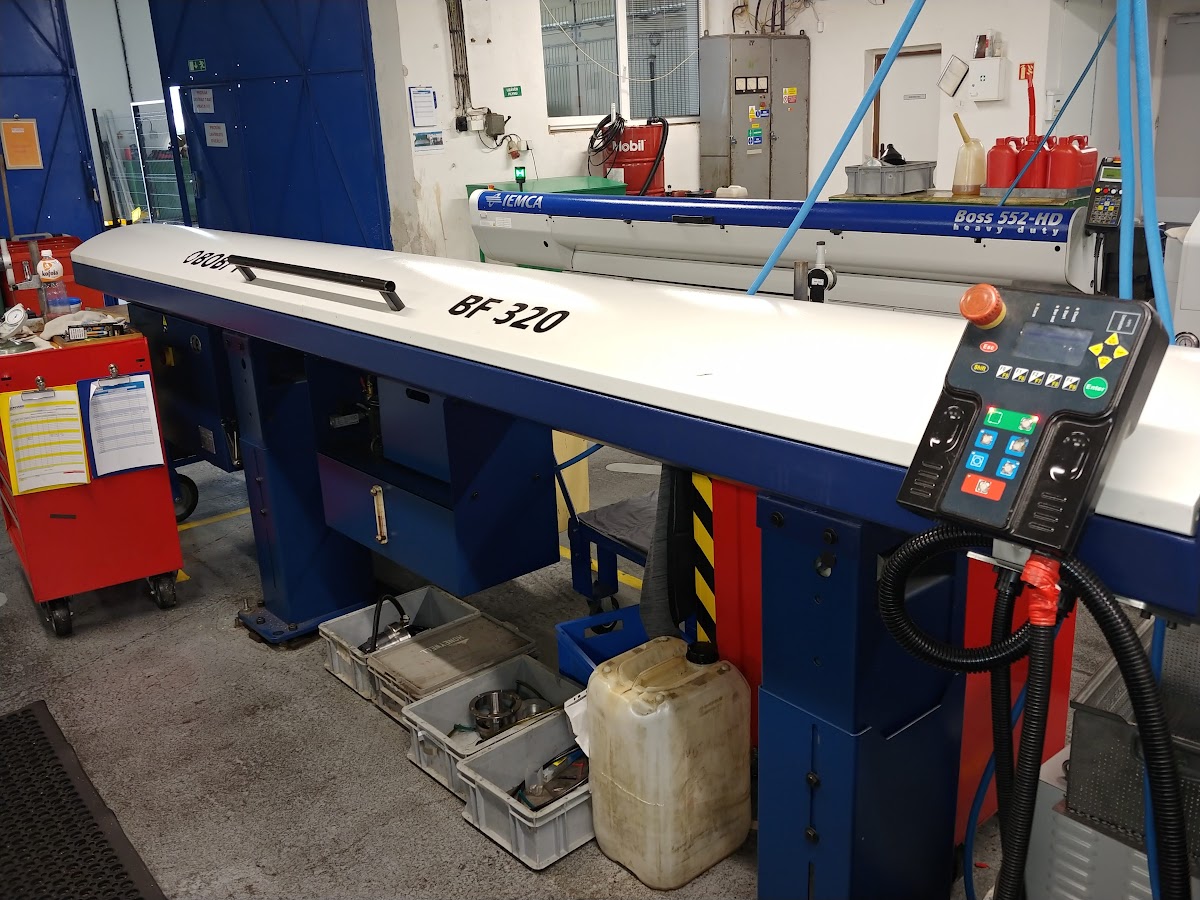

Bar loader YES
Spindle speed 0 - 12000 /min.
Machine weight 3300 kg
Machine dimensions l x w x h 2100,0 × 1200,0 × 1900,0 mm
number of axes: 6 linear + 2x C-axis
Range of cylindrical rod diameters (min./max.) - 3-20
Work piece length:
- fixed guide sleeve - 250 mm
- motorized guide sleeve - 210 mm
- without guide sleeve - 45 mm
Power of the main spindle drive - 2.2 / 3.7 kW
Spindle speed - 12,000 rpm.
Counterspindle drive power - 1.5 / 2.2 kW
Cross-section of the shank of turning tools - 16x16 mm
Rotational speed of driven tools - 8,000 rpm.
Drive power for tools driven on the front support - 0.75 kW
Drive power for tools driven on the rear support - 1 kW
Drive power of driven tools for processing the other side - 0.75 kW
Oil pan capacity - 165 liters
Oil pump power - 250W
Installed power - 14 kVA
Compressed air - min. 4 bar / 40 NL / min
Execution in accordance with the requirements - CE
Machine in good technical condition, possible testing under power.
