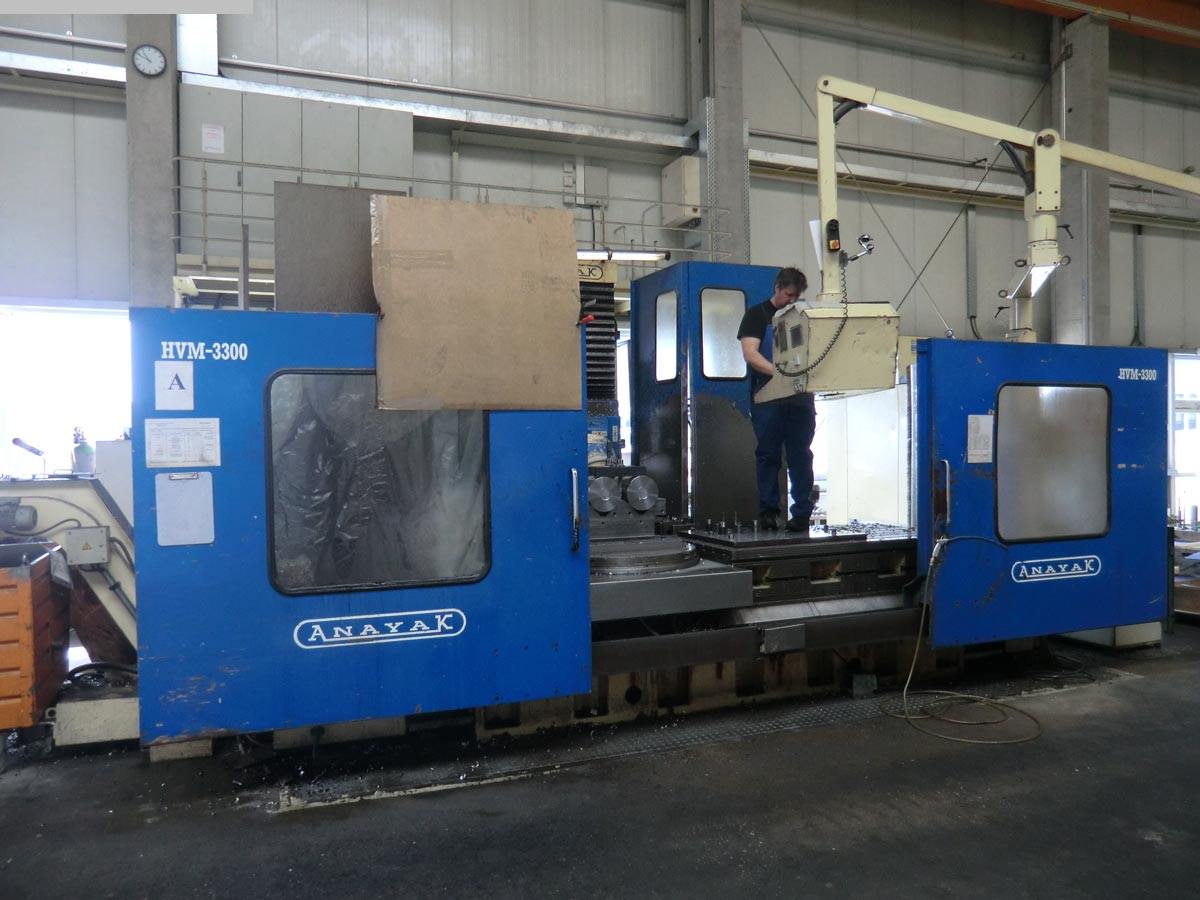

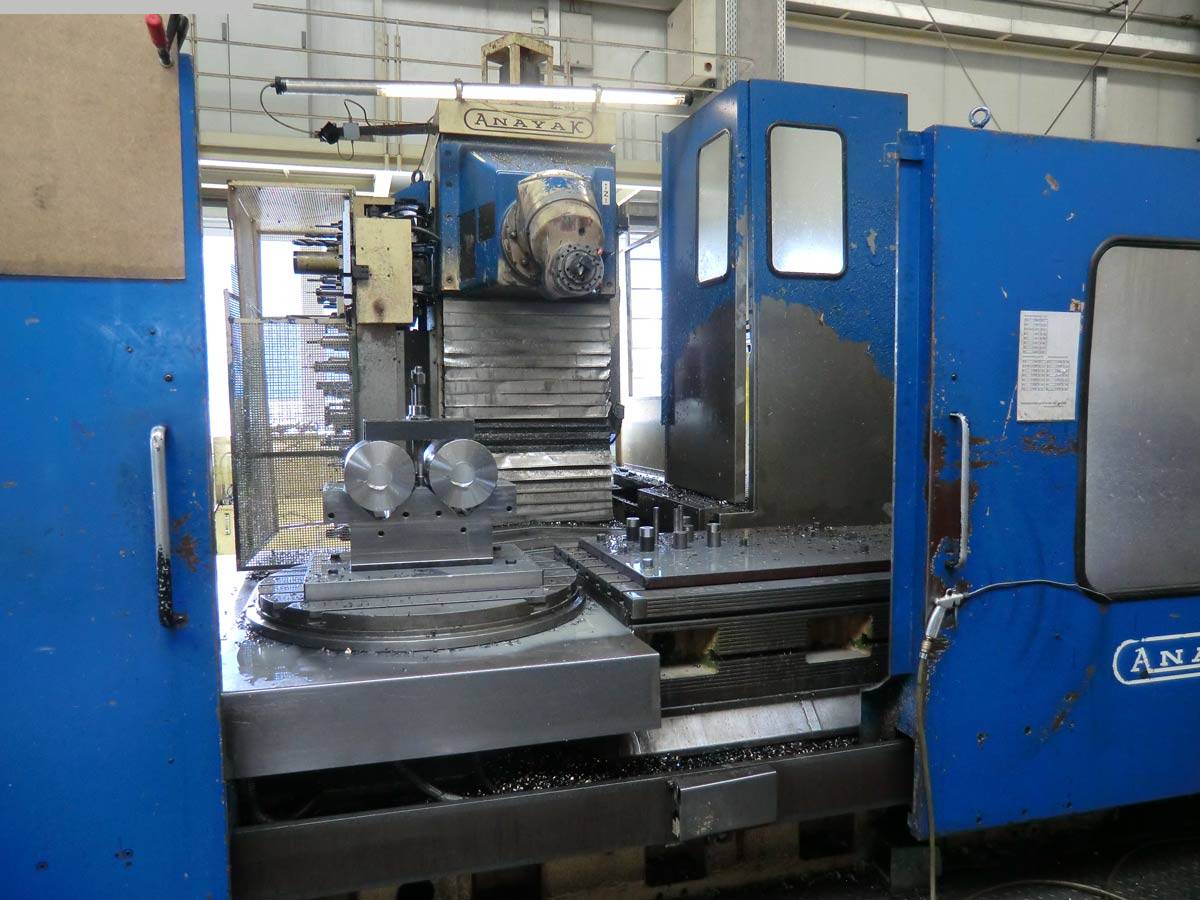

ANAYAK hvm 3300 1995
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND5071
Dati tecnici
- Condizione: usato
- Anno: 1995
Descrizione
x-travel 2700 mm
y-travel 1000 mm
z-travel 1050 mm
rotary table dia. 1000 mm
table surface area 2000 x 1000 mm
tool taper SK 50
spindle turning speed range 10 - 3000 U/min
transmission r ...
x-travel 2700 mm
y-travel 1000 mm
z-travel 1050 mm
rotary table dia. 1000 mm
table surface area 2000 x 1000 mm
tool taper SK 50
spindle turning speed range 10 - 3000 U/min
transmission ratio 2
feed range 10000 mm/min
main drive 22 kW
Other information
* CNC-control HEIDENHAIN TNC 426 (Software: 28046010)
* 60-station ATC
* bandfilter unit
* coolant through spindle 15 bar
* swarf conveyor
* Renishaw 3D-probe
* autom. swivel-type milling head horizontal/vertical
* NC-rotary table (4. axis)
Note: There is a machine-video on our website (www.knops.de)
