OKUMA LU 400 M Simul Turn 5 2006
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND9678
Dati tecnici
- Condizione: usato
- Anno: 2006
Descrizione

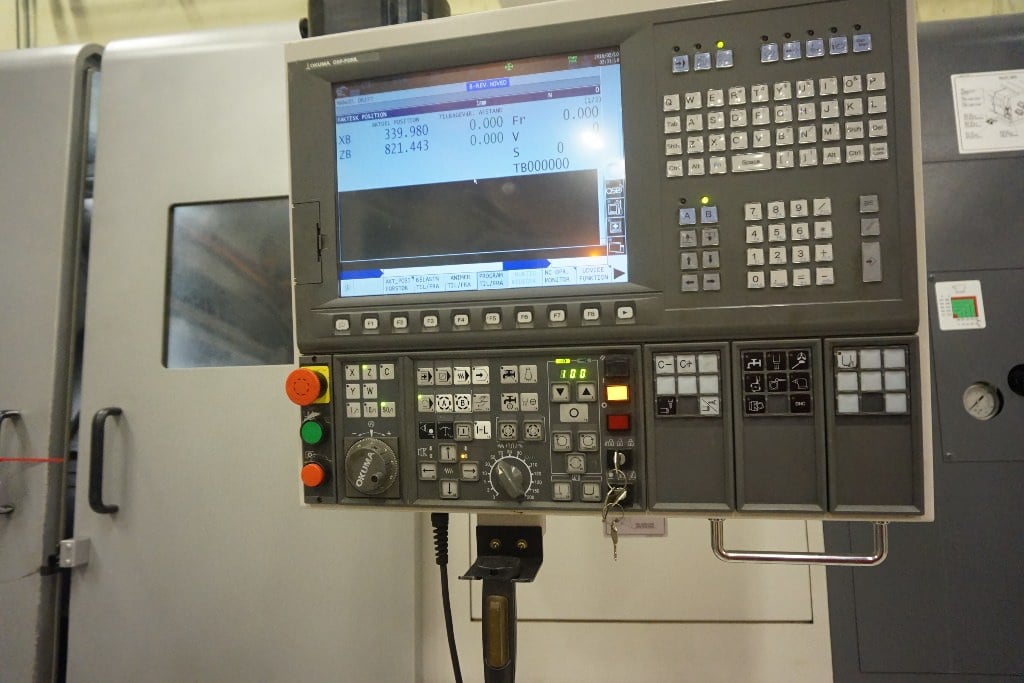

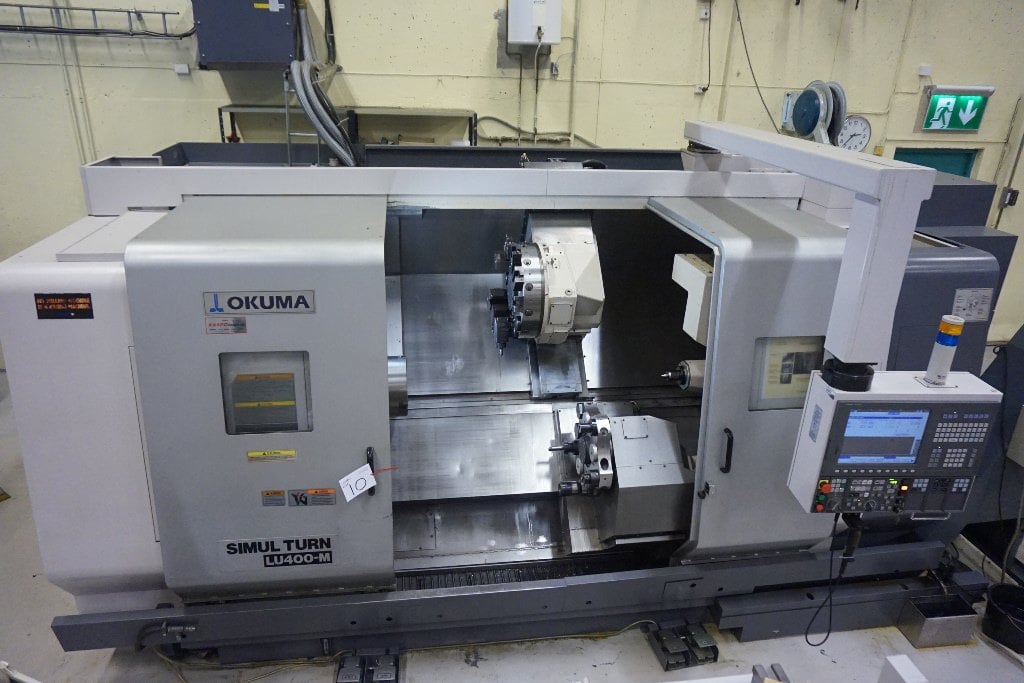

Okuma LU 400 M Simul Turn 5 Axis CNC Lathe fitted with OSP-200L CNC Control, Spindle Speed 38-3800rpm, Live Tooling Speed 30-3000 RPM, Axis Travels Upper Turret X Travel = 300mm Z Travel = 1275mm, Low ...
Okuma LU 400 M Simul Turn 5 Axis CNC Lathe fitted with OSP-200L CNC Control, Spindle Speed 38-3800rpm, Live Tooling Speed 30-3000 RPM, Axis Travels Upper Turret X Travel = 300mm Z Travel = 1275mm, Lower Turret X Travel = 195mm, Z Travel = 1270mm, C Axis 360 Degrees (0.001 Degree). Max Turning Dia 420mm, Max Turning Length 1250mm, Spindle Bore Dia 80mm, Swing Over Bed 650mm, Upper Turret 12 Station VDI 40 Tooling of which all can be driven, Lower Turret 10 Station VDI 40 Tooling fitted with a 12’’ Chuck, Tool Presetter, Tailstock with 150mm Quill Travel And MT5 Bore Taper, Swarf Conveyor, Machine Weight Approx. 12500kg. S/No 121634 (2006)
Please Note: This Item is located in Narvik, Norway.
This Item is part of an online auction sale ending on Thursday 10th March 2016 at 3pm (UK Time)
Please visit our website for full details: www.cottandco.com
