INNSE
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND17890
Dati tecnici
- Condizione: usato
- Anno: non definito
Descrizione
Innse Rotary Piercing Mill Including Furnace (WHOLE LINE)
Min / Max Billet 80mm dia x 3000mm length, 120mm dia x 5700mm length
Continuous Feeding System with Billet Brushing
Rotary Crane, Brock ...

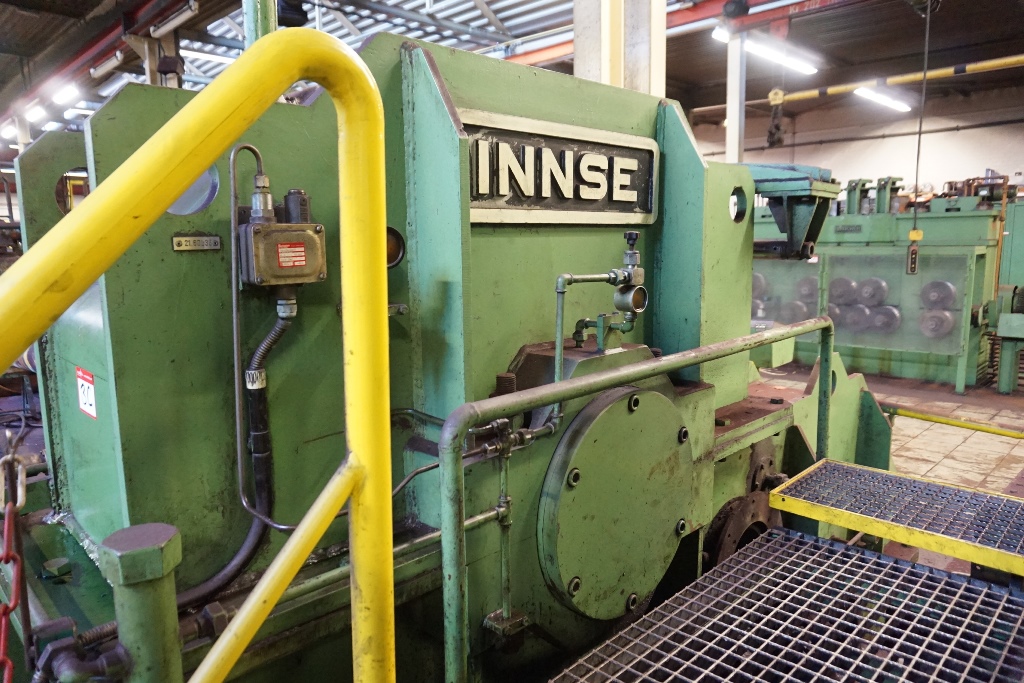

Innse Rotary Piercing Mill Including Furnace (WHOLE LINE)
Min / Max Billet 80mm dia x 3000mm length, 120mm dia x 5700mm length
Continuous Feeding System with Billet Brushing
Rotary Crane, Brocker Straightening Machine
Ludwig Ofag Indugas (LOI) / Charging and Discharging Billet Furnace
Tube Transportation System to Piercing Mill
Siemens Main Electric Motor, Gearbox and Transmission Innse Billet Pusher, Control Console.
Pressure Rollers 116-145mm dia x 450mm width
Roller Material No. 12343, Core Material of Pressure Rollers 1.2343.
Hardness of outer alloy 1.9080
Mandrel Diameter: 86mm, Mandrel Material 1.2581
Incoming Billets 115mm x 5400mm, Weight 508kg, Temperature 930c
Outgoing Billets 115mm x 13mm x 1250mm
Roller speed 70 – 90 RPM, Max Performance 28 pieces per hour
Water Cooling and Filtration System
Tooling for Piercing Mill and Transformers
Please Note: These Items are located in Germany.
Please Note: This Item is part of an online auction ending: Tuesday 20th March 2018 at 3:00pm (UK Time) For further details please visit our website www.cottandco.com
