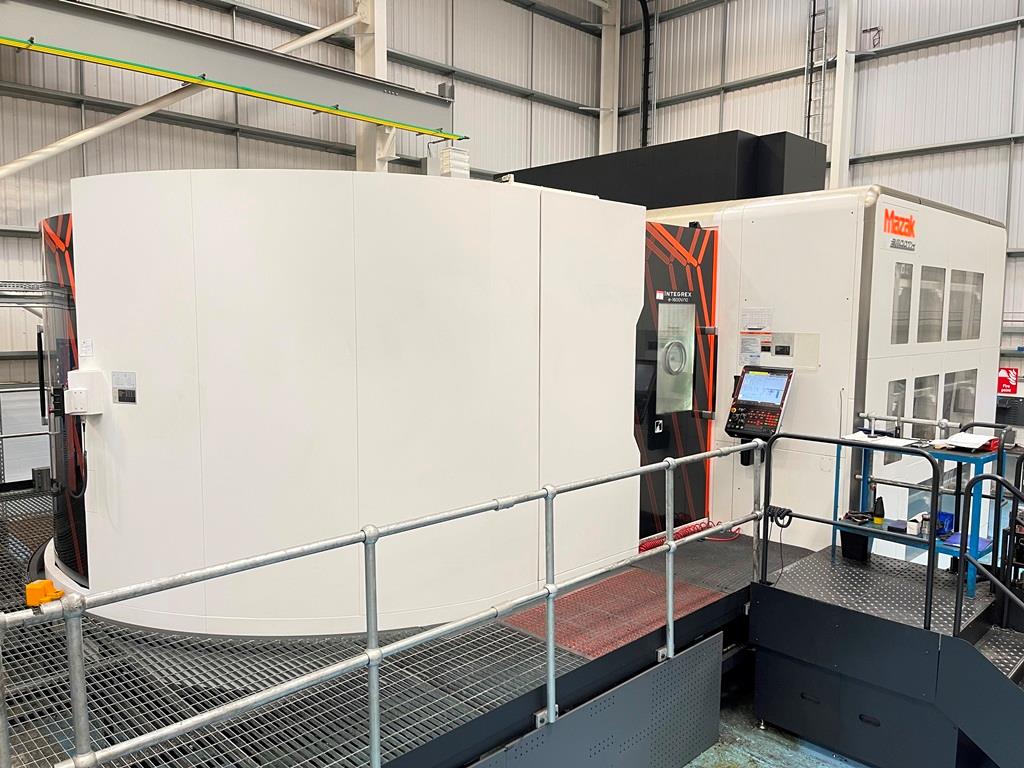

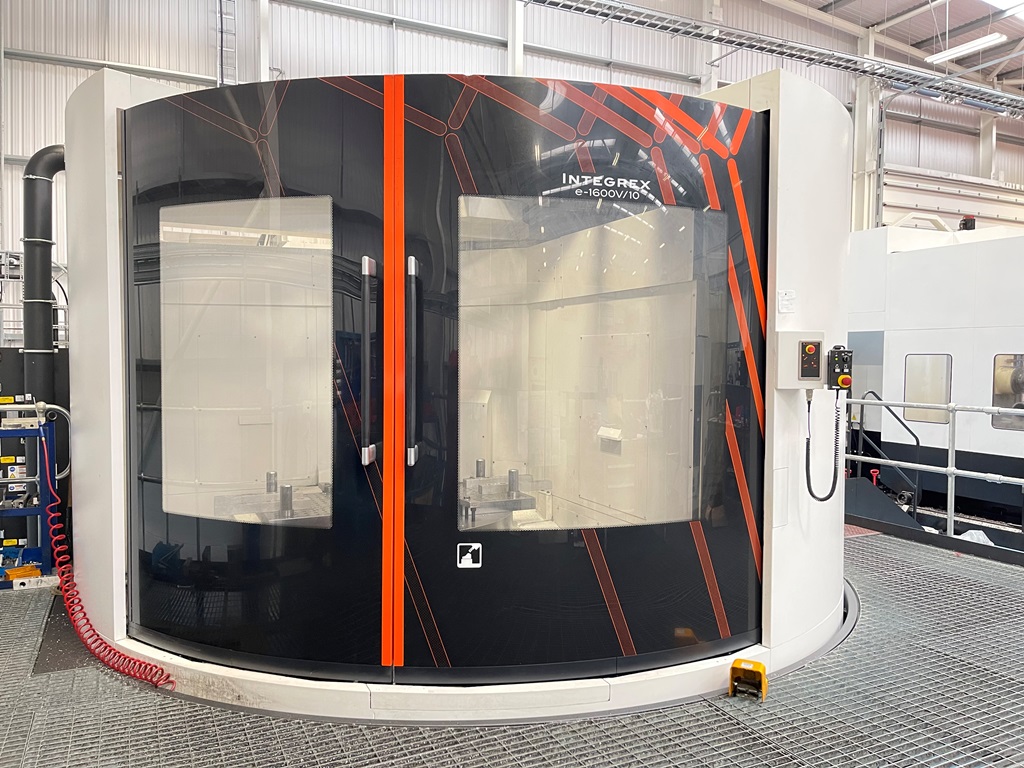

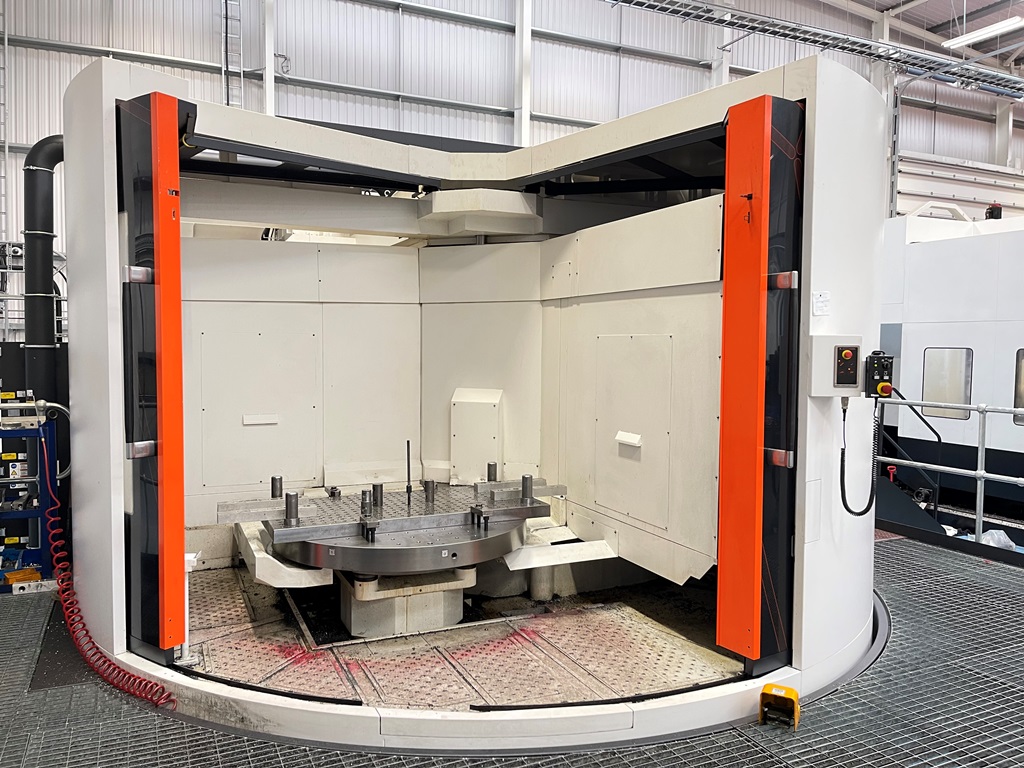

MAZAK Integrex e-600V 2018
- Condizione: usato
- pubblicato: 06/10/2025
- 25IND37899
Dati tecnici
- Condizione: usato
- Anno: 2018
Descrizione
Mazak Integrex e -600V/10 Vertical Turning Milling Centre with Mazatrol Smooth X Control, 5 Axis with Twin Pallets, Pallet 4 Jaw chuck 1400mm Diameter, Pallet Plain Tapped Hole plate 1400mm, Pallet Lo ...

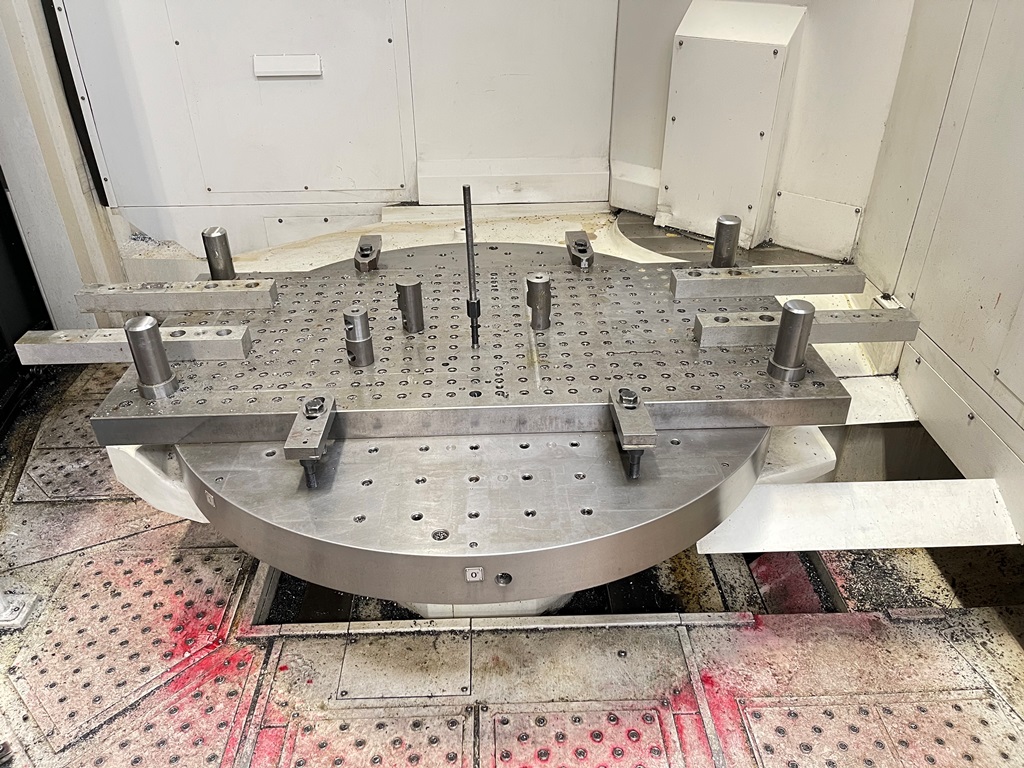

Mazak Integrex e -600V/10 Vertical Turning Milling Centre with Mazatrol Smooth X Control, 5 Axis with Twin Pallets, Pallet 4 Jaw chuck 1400mm Diameter, Pallet Plain Tapped Hole plate 1400mm, Pallet Load 5000kg, Max Machine Diameter 2050mm, Max machine Length 1600mm, X Travel 2315mm Y 1600mm Z 1345mm, Turning Speeds 300rpm, Milling Speeds 10,000rpm, Number of Tools ATC 84 Position, Tilting B Axis for full 5 Axis Machining, Movement B Axis 150 degree + / - 120 Degree to Vertical + 30 degree, Centre B Axis to Centre of Pallet 1775mm, Spindle Nose to Centre of Pallet 1475mm, Centre of B Axis Rotation to Pallet Surface 100 – 1475mm, Distance Spindle Nose to Surface of Pallet – 200 to 1145mm, Operation C Axis Indexing 0001 Degree or Full Contouring, Full B Axis and C Axis Operation, Milling Power 37kw, Tool Eye, Coolant, Swarf Conveyor, Enclosed Guarding. S/No. 285782 (2018)
Please Note: This lot is located in Newcastle, UK. Unfortunately, there are no loading facilities onsite, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.
This machine is part of an online auction sale ending on Tuesday 17th May 2022 at 3pm (UK Time), please visit our website for full details: www.cottandco.com
